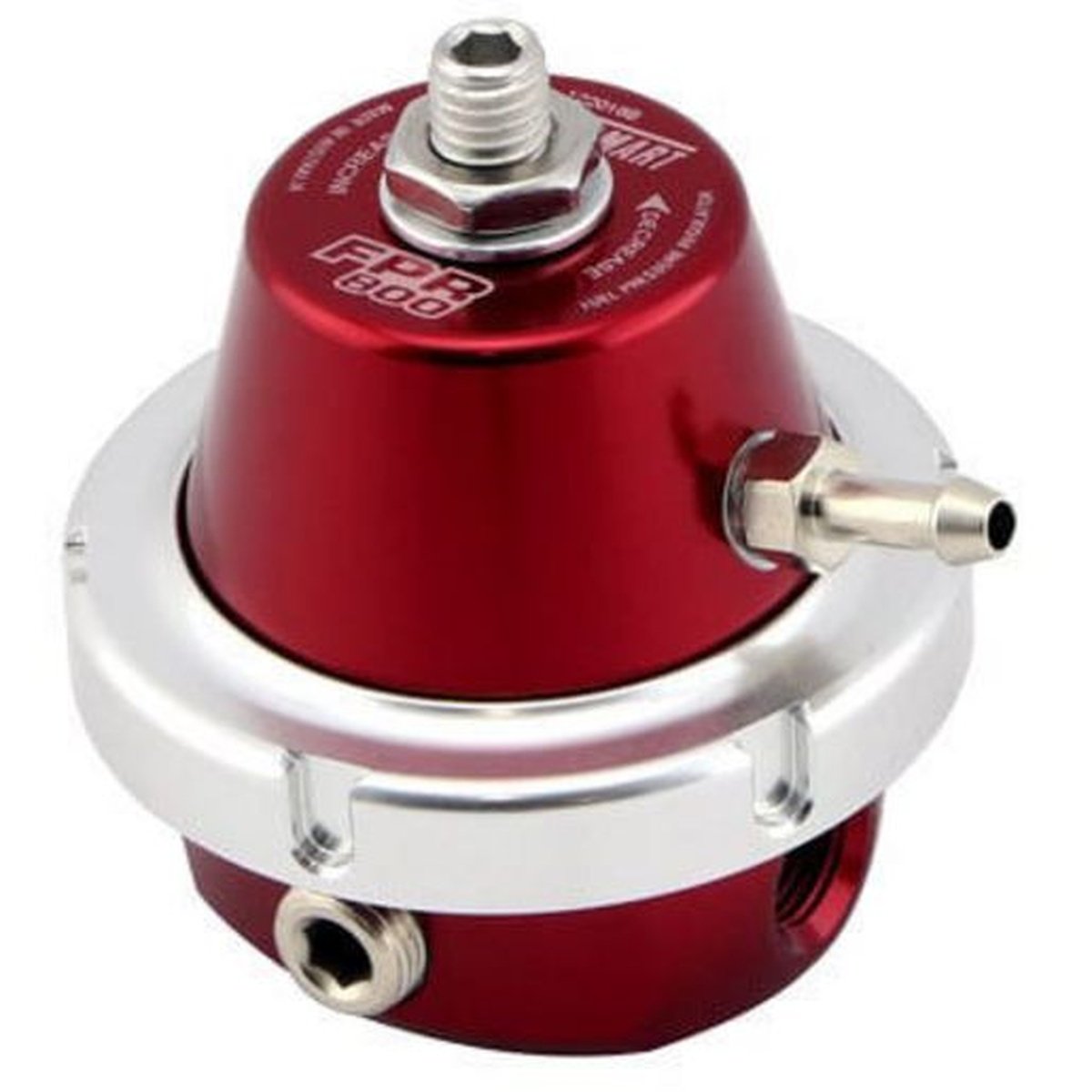

Turbosmart FPR800 Fuel Pressure Regulator Red

Turbosmart's newest High-performance EFI fuel pressure regulator is smaller, lighter and better! Now featuring two 1/8" NPT inlet ports, one 1/8" NPT return port and 1/8" gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems. FPR's feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same. Factory tested.

Supplied With: Mounting bracket and retaining clip, vacuum fitting and gauge port blank.
EFI fuel regulator
3 x 1/8" NPT ports
1/8" NPT Gauge port
Capable of regulating up to 800hp of fuel flow
1:1 manifold pressure ratio with no load losses
30-90psi base pressure range
Stainless steel internals providing maximum integrity and reliability
Suitable for all fuel types
Operational between -35C to +200C
MILSPEC diaphragm
Bracket and retaining clip supplied
Pressure port 1/16 NPT with nipple supplied
Manufactured, assembled and validated in-house at Turbosmart HQ

WHAT IS A FUEL PRESSURE REGULATOR?
A fuel pressure regulators job is to maintain constant fuel pressure above the intake manifold pressure.

WHEN DO YOU NEED TO INSTALL ONE?
The installation of performance fuel injectors or a high-flow fuel pump requires the use of an aftermarket fuel pressure regulator to allow pressure adjustments while maintaining a stable base pressure. They can also be used to maximise a standard fuel systems ability to cope with minor power modifications.
