STEDI

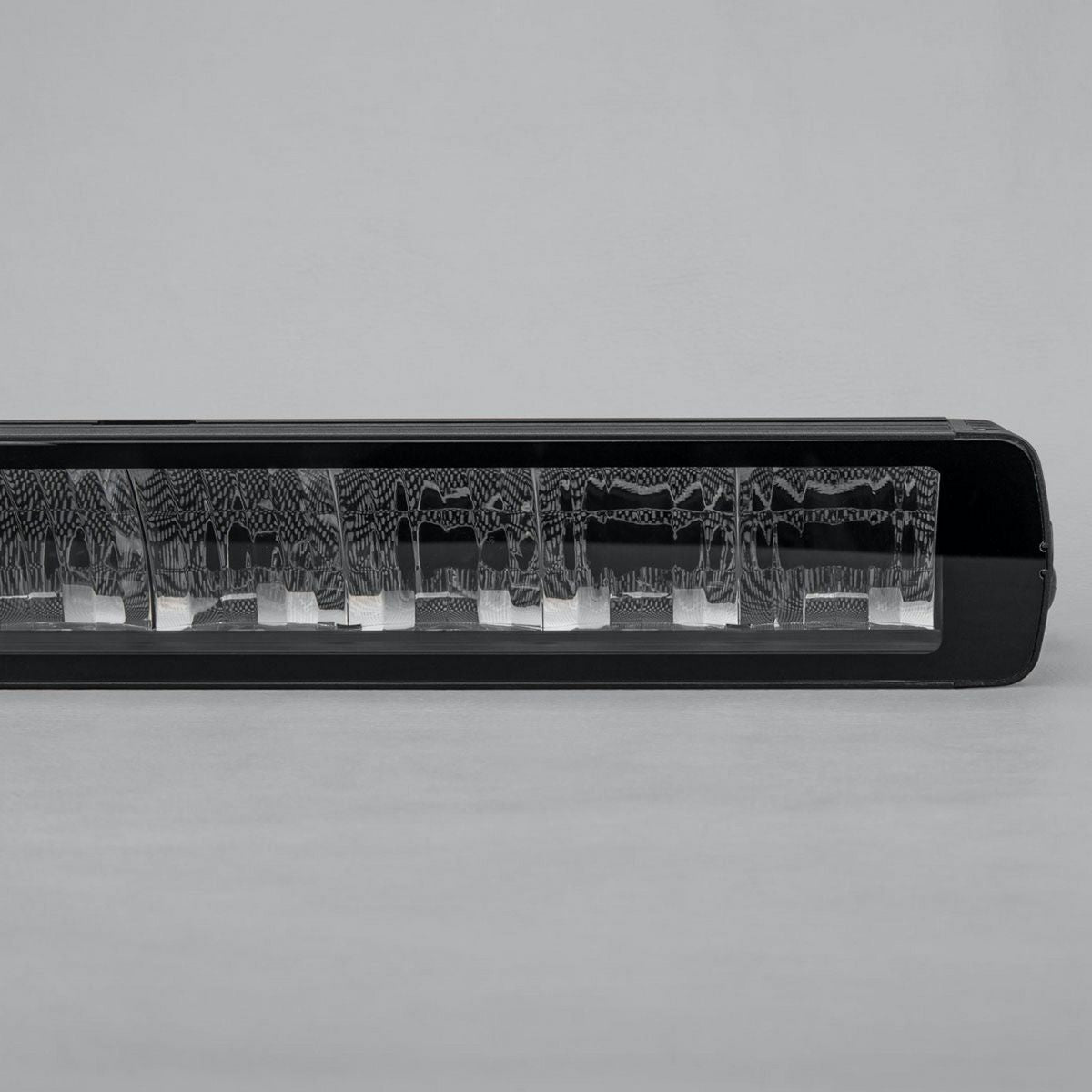

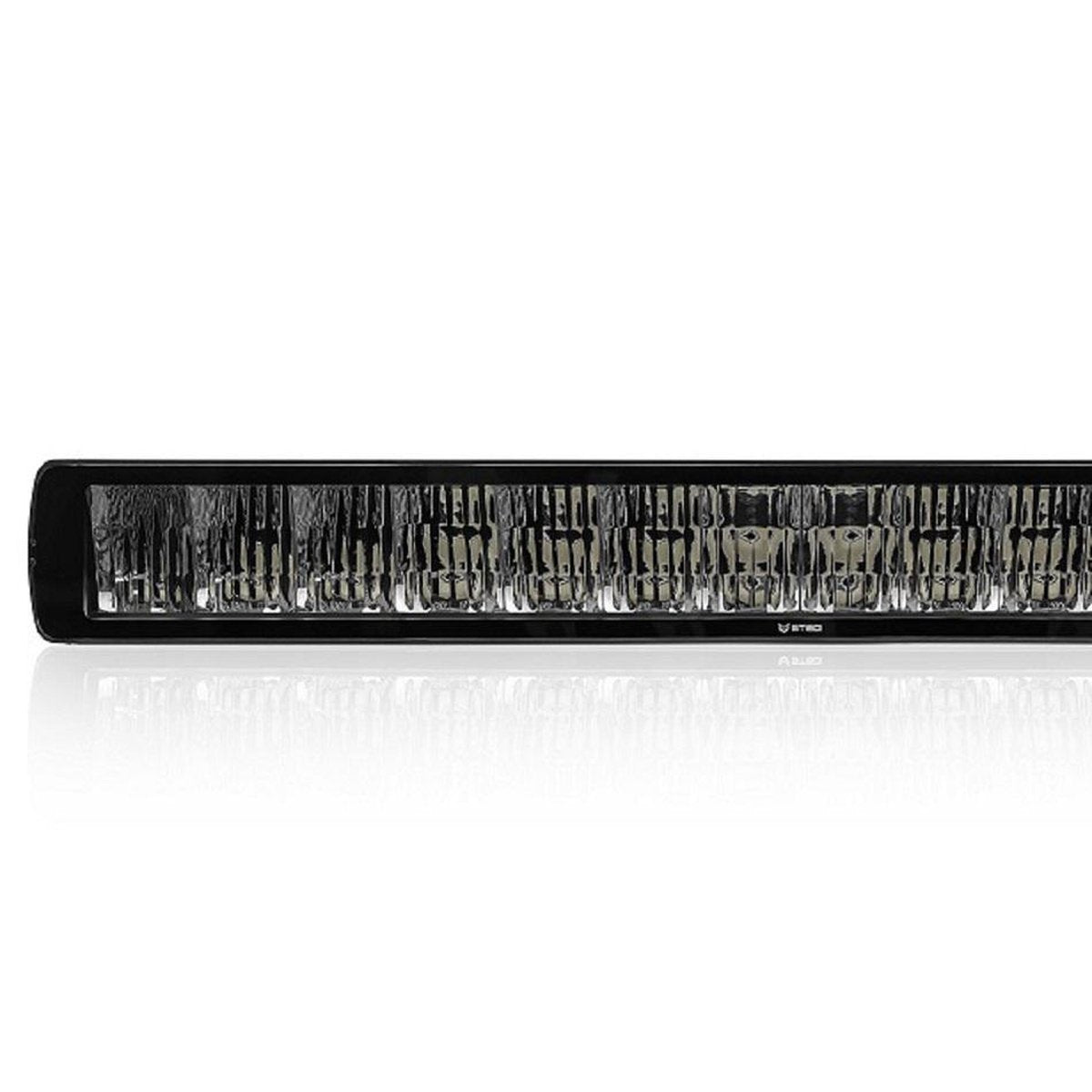

STEDI Light Bar Single Row STX LED 405 Inch LEDSTX4016L

STEDI Light Bar Single Row STX LED 405 Inch LEDSTX4016L

Regular price $497.95 AUD
Regular price Sale price $497.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
At the core of the ST-X 40.5 Inch you will find world-class A grade 15W reverse facing emitters pushing out 8400 Lumens at a stunning 5000K colour temperature.
The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.

The circuit of the ST-X allows for a max output of 2100 Lm), keeping within the legal for road use in New Zealand and European countries. The built-in amber (1500K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.

If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

SPECIFICATIONS
VOLTAGE: 9-36V
AMPERES: 17.2A @ 12V (full power), 3.28A @ 12V (limit power)
POWER: 206.4W (full power), 39.36 (limit power)
LUMENS: 8400LM (full power), 2327LM (limit power)
COLOUR TEMPERATURE: 5000K
AMP RATING: 0.5a
PHOTOMETRIC DATA: 1 lux @ 859m (full power), 1 lux @ 450m (limit power)
LENS MATERIAL: Optical grade, Hard-Coated LEXAN
HOUSING MATERIAL: 6063 Extrusion
INGRESS PROTECTION: IP68
CANDELAS: 739582 @ full power, 203337 @ limit power

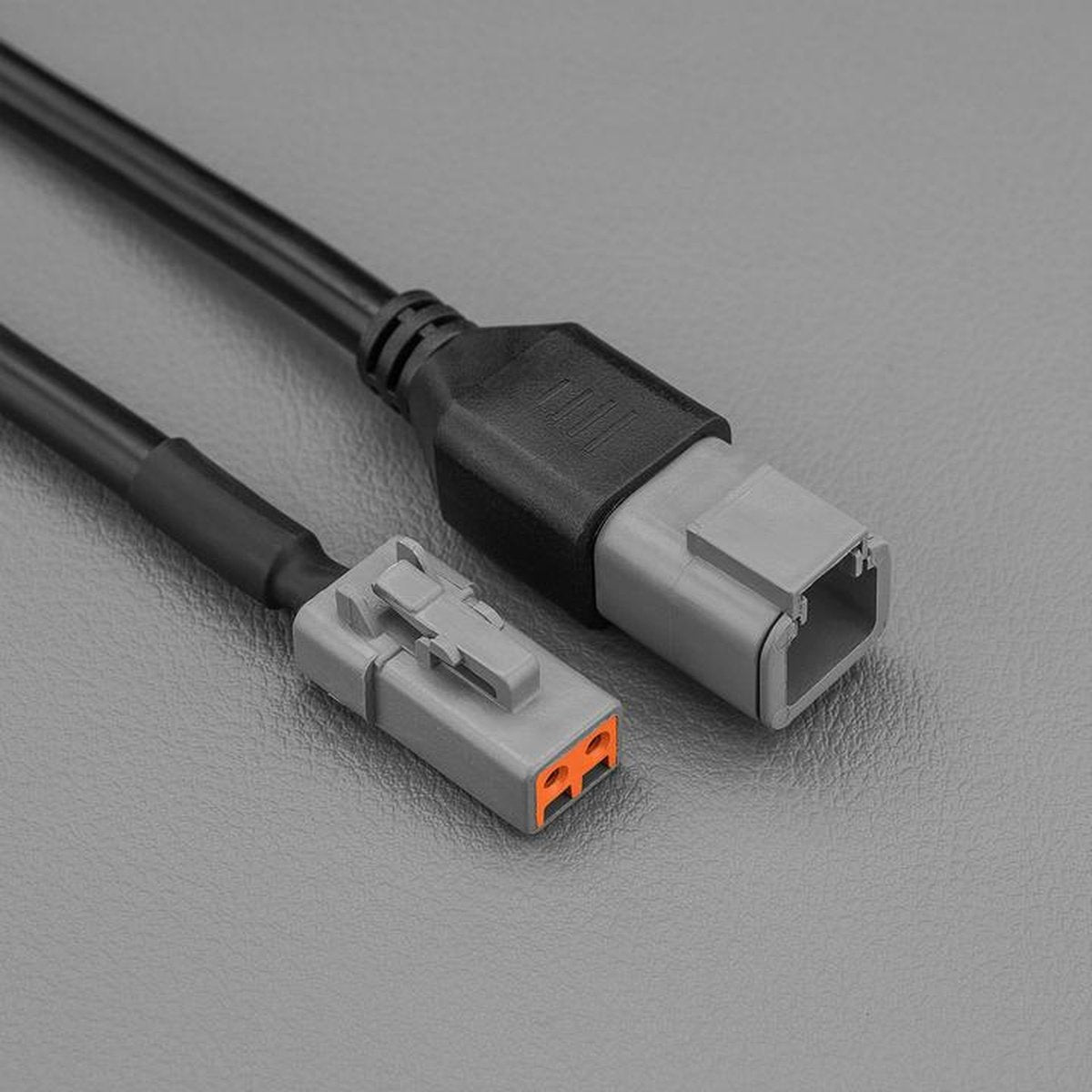

CONNECTOR: 60cm Cable with DTP 4in
CERTIFICATES: R112, ref. 50 and R10
LIFESPAN: 50, 000hrs (LM80)
OPERATING TEMP: -40°C ~ +60°C
PRODUCT WEIGHT: 3.7kg
