The QUAD Pro is the continuation of the high-calibre class of the PRO bloodline. Sharing the legendary performance of the Type-X Pro and ST3303 Pro, the QUAD Pro utilises the same reflector and LED technology, to deliver an explosive performance.

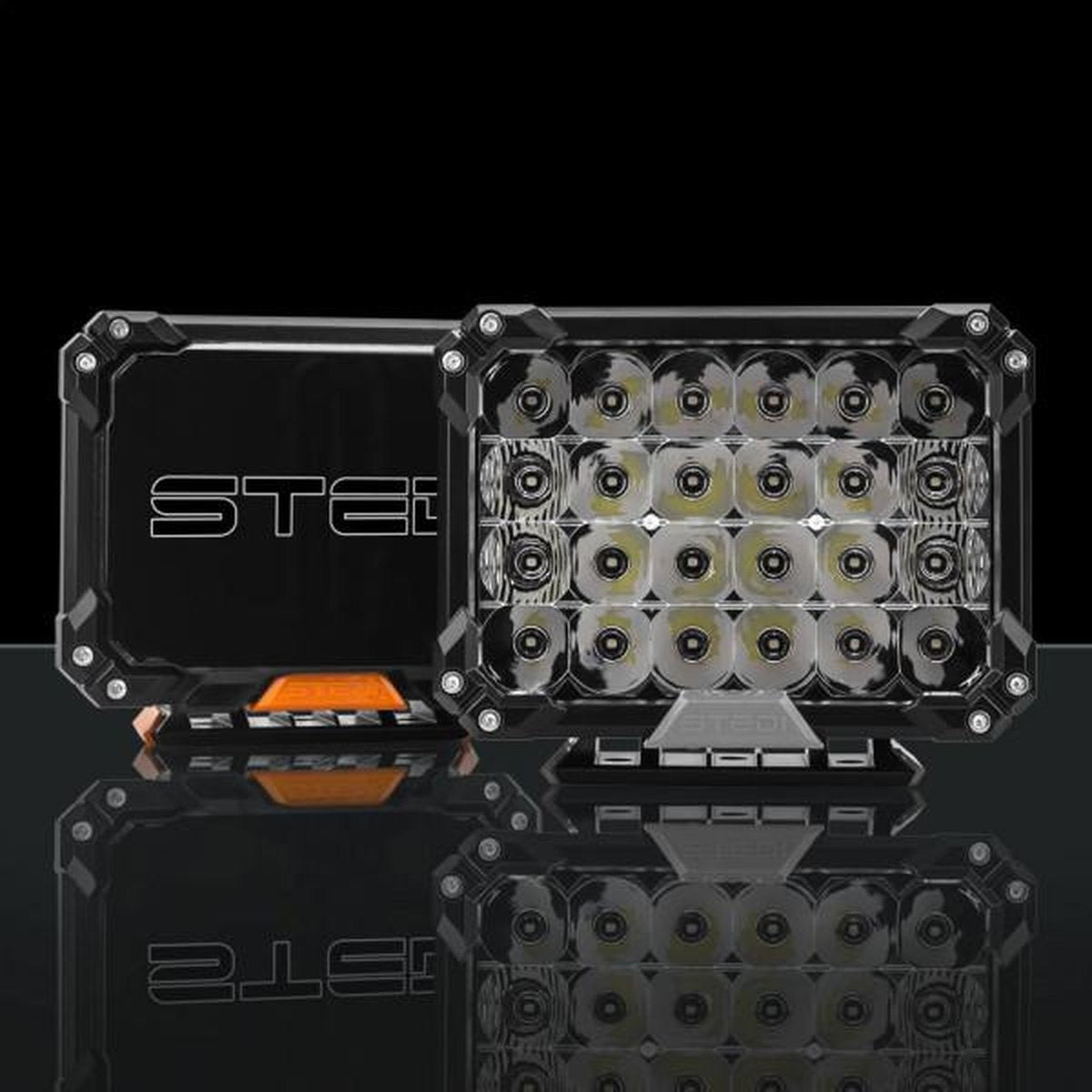

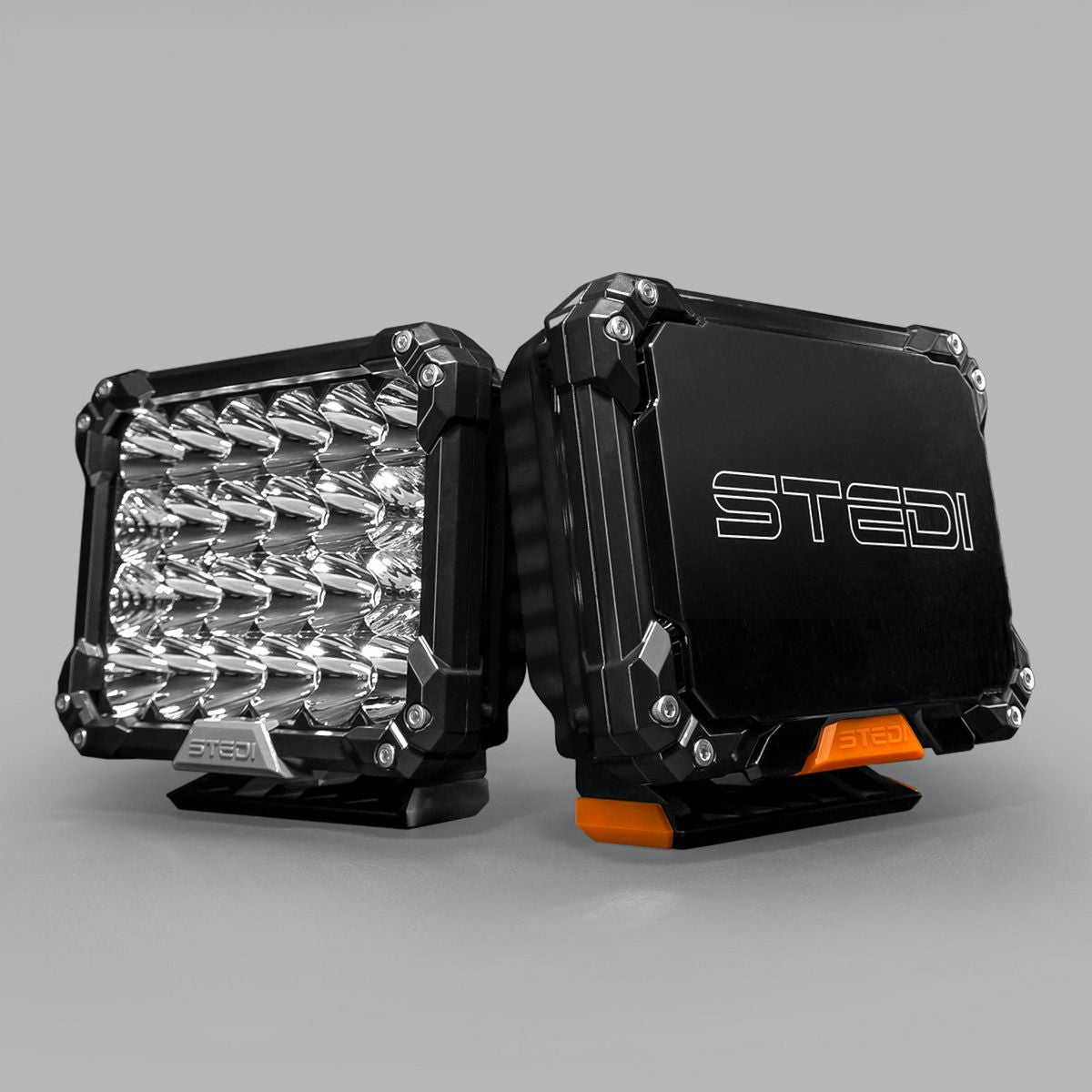

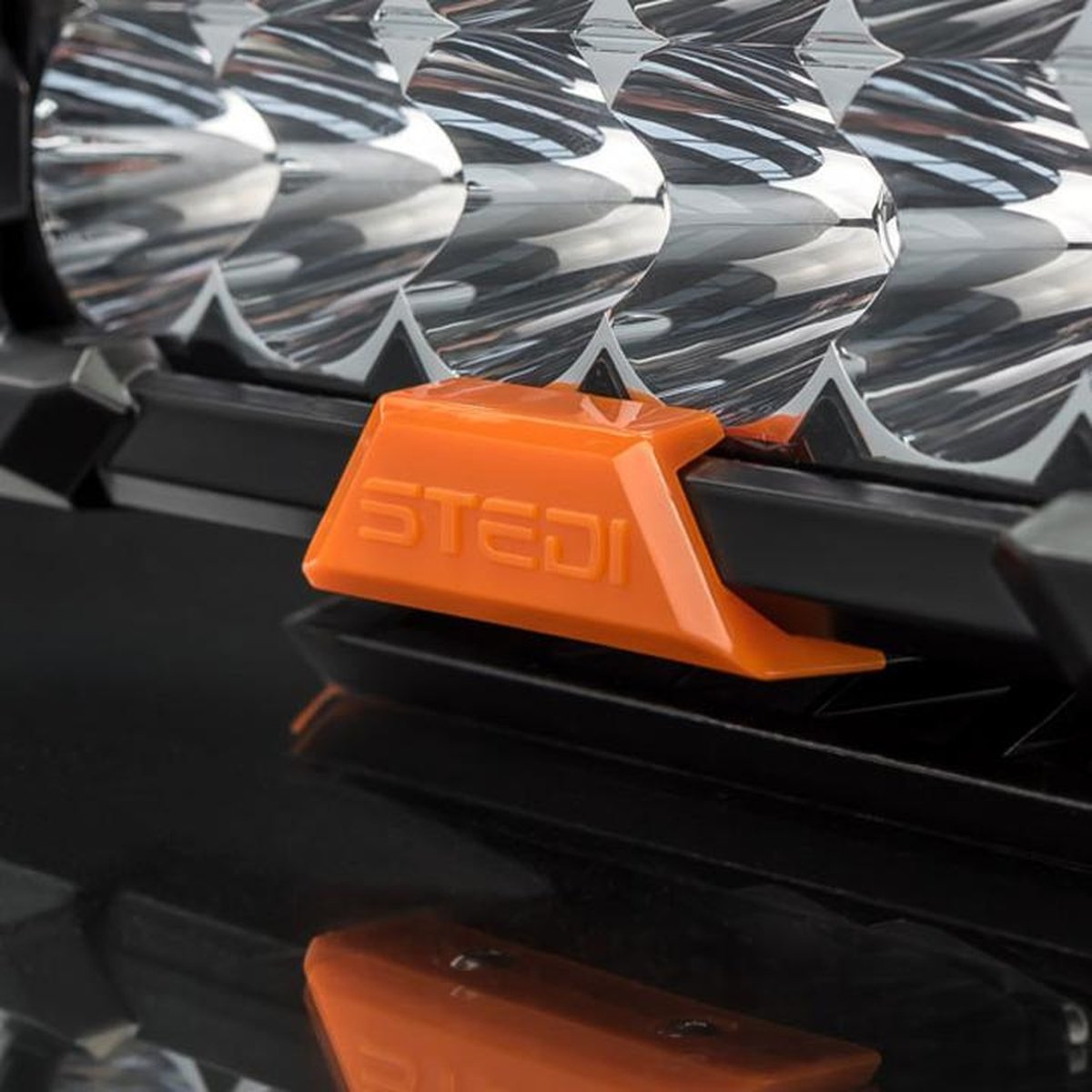

Included in the kit is a pair of STEDI blackout cover, in addition to the orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are blue, green, red, and yellow colour caps.
STEDI Quads showcase a glistening 5700K colour temperature, providing the necessary luminance to cut-through any obstrusive dust and other air-born particles.

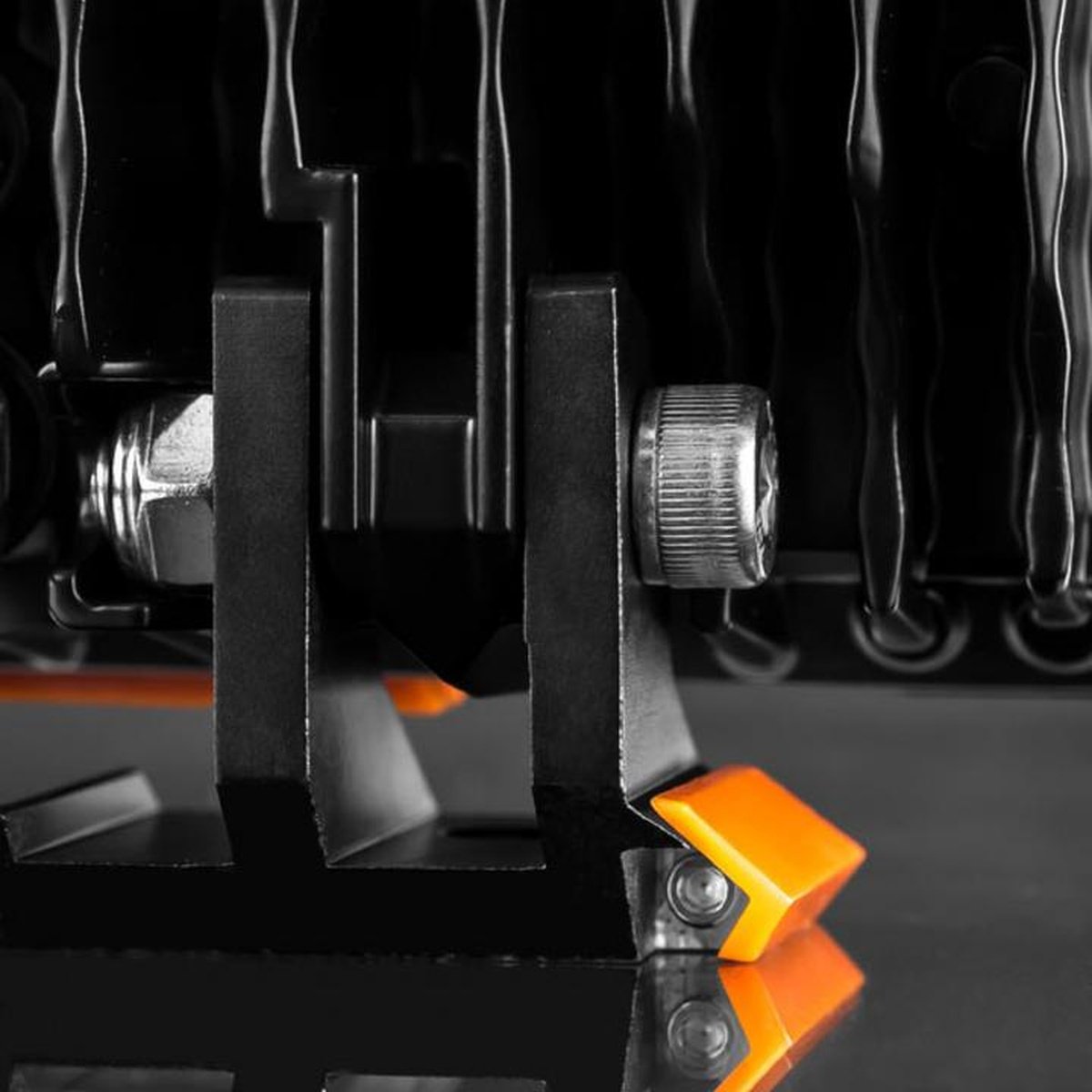

The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
SPECIFICATIONS LED: 24 x Oslon High-Flux LED RAW LUMENS: 17,040 (Pair) TESTED LUMENS: 11,360 (Pair) AMP DRAW : 7.4A @ 13.2v (each) POWER DRAW: 97W (each) CANDELA: 693,889cd BEAM PATTERN: 4 x Spread 20 x Pencil Beam INGRESS PROTECTION: IP68 | Submersible up to 3m COLOUR TEMP (CCT): 5700K VOLTAGE COMPATIBILITY: 12v & 24v LUMEN MAINTENANCE : 50,000 LM-80 WEIGHT: 1.4Kg (Including cover) (each) PHOTOMETRIC DATA 10 m: 6,938 Lx 50 m: 277 Lx 200 m: 17 Lx 300 m: 7.7 Lx 400 m: 4 Lx 500 m: 2.7 Lx 833 m: 1 Lx
