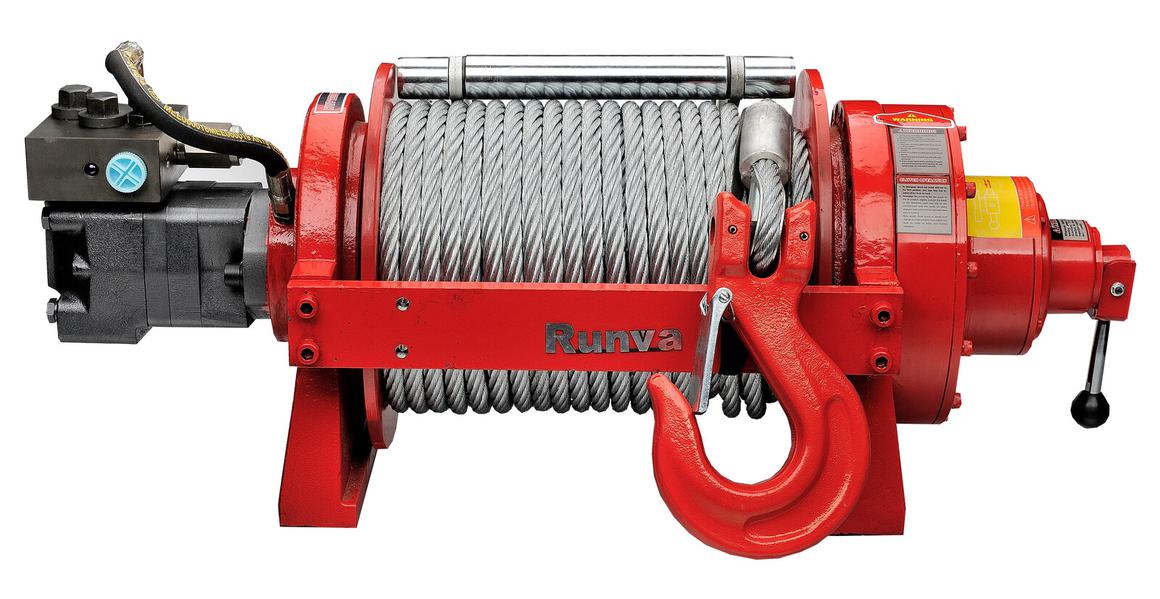

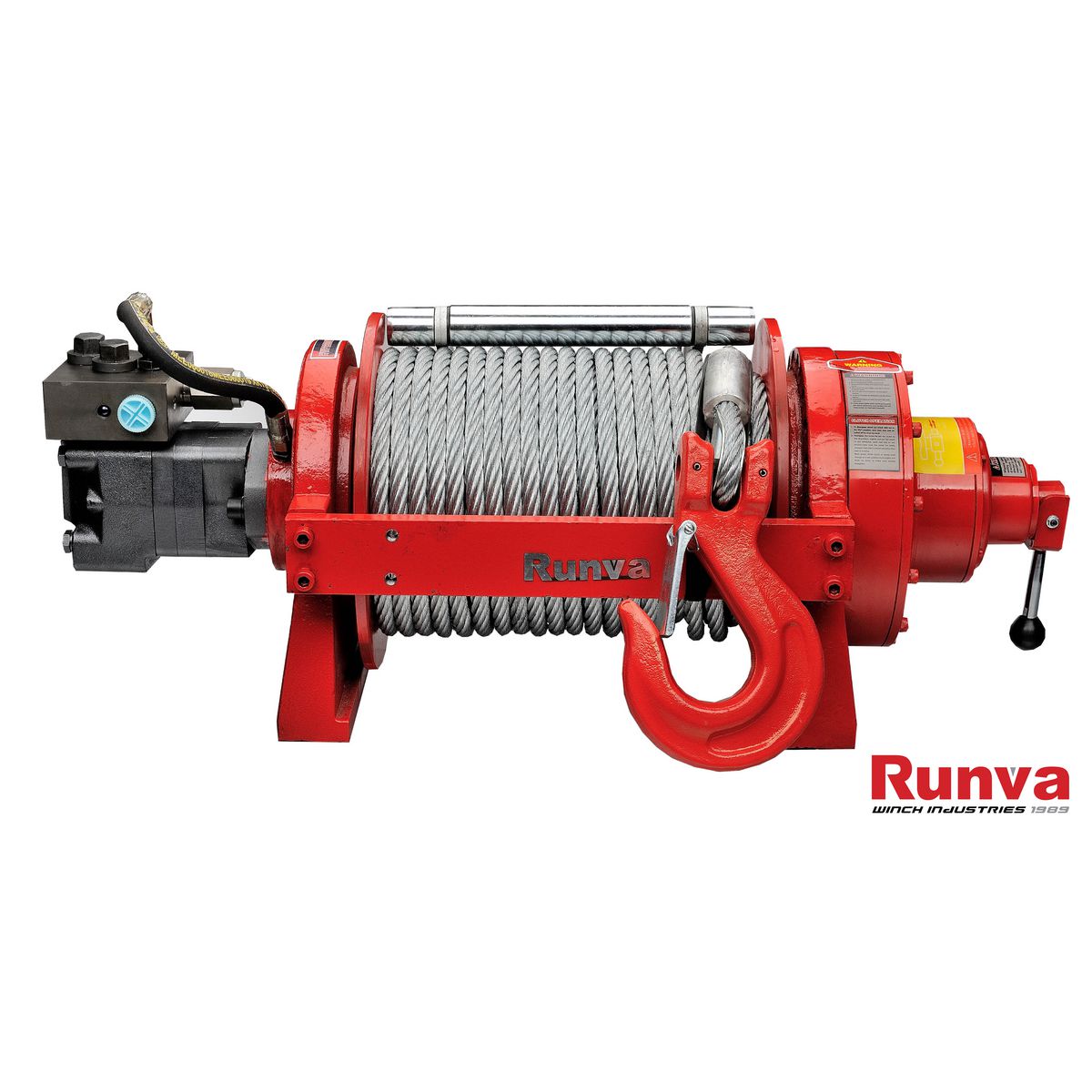

Runva HWP20000Y2P Industrial Winch Hydraulic 20000lb W/Steel Cable HWP20000Y2P

The Runva HWP20000Y2P is our most powerful commercial grade hydraulic winch that can be used in a variety of industries and applications. This winch offers a massive 20,000lb of line pull. With 48M of 14MM steel cable on the drum, this winch is ideal for even the most demanding recoveries.

The HWP20000Y2P is a single speed winch with a dual mode clutch. The clutch can be operated manually or by air. The braking is automatic via the wet-type hydraulic disc brake. The gearbox is strong and efficient thanks to the Runva patented two stage planetary setup.

With full IP67 ingress protection, this winch can be used in the most extreme conditions. The HWP20000Y2P is perfect for tow trucks & recovery vehicles, expeditions vehicles like Unimog & Iveco Daily, log splitters, portable hydraulic machines, marine applications and MUCH more.

If you need a handheld or wireless remote to operate the winch, a full optional extra accessory kit can be purchased which includes a handheld remote (wireless optional), directional control valve (either 12V or 24V) and valve block.

Specifications:

• Rated Line Pull: 20,000Lb (9,072Kg)
• Motor: Displacement100Ml/Roil Flow Requirements25 75L/Minpressure Requirements17.5Mpa
• Gear Train: Full Steel 2 Stage Planetary
• Gear Ratio: 39:1
• Clutch Type: manual + Air
• Clutch Handle Position: : side Of Winch
• Brake: Automatic Load Holding Hydraulic Disc
• Cable Type: steel Cable
• Cable Size: 14mm X 48M
• Drum Size: 138mm X 316mm
• Mounting Bolt Pattern: 431M X 64mm; 431mm X 192mm (8X M14 Bolts)
• Overall Dimensions: 835mm X 372mm X 320Mm
• Remote Control: N/A
• Finish: Red Powder Coat
• Warranty: Limited 18 Month Commercial Warranty
