To get the most out of this winch, Runva recommends using a 70mm to 90mm diameter power leads with a minimum 1000CCA+ battery dedicated to powering the winch.

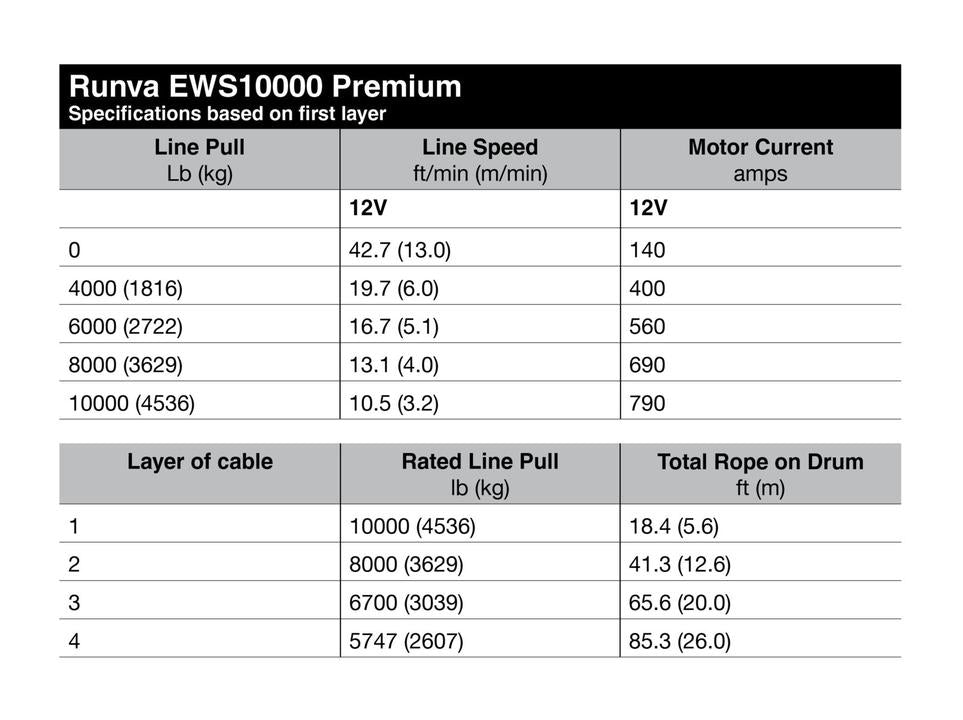

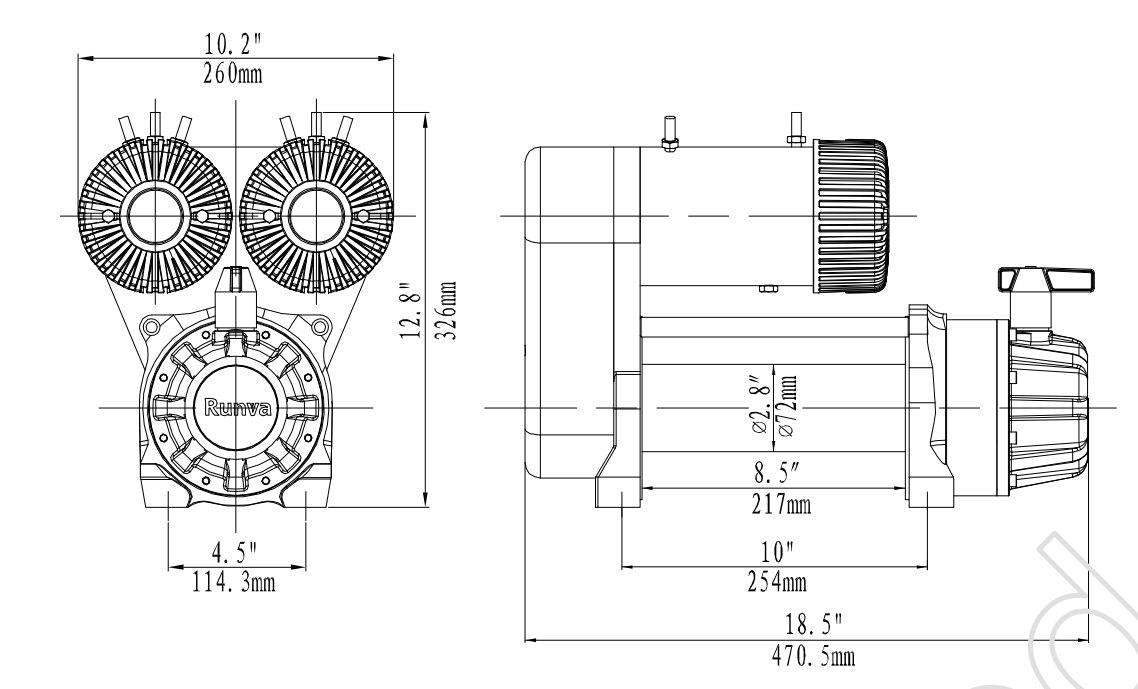

SPECIFICATIONS RATED LINE PULL: 10000LB (4536KG) MOTOR: SERIES WOUND (24V) 2X 5.4KW/7.2HP - IP67 RATED GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY GEAR RATIO: 108:1 BRAKE: AUTOMATIC RACHET LOAD HOLDING IN THE GEARBOX CABLE TYPE: SYNTHETIC ROPE CABLE SIZE: 10MM X 30M DRUM SIZE: 72MM X 217M MOUNTING BOLT PATTERN: 254MM X 114.3MM OVERALL DIMENSIONS: 479MM X 262MM X 355MM REMOTE CONTROL: 3.7M HANDHELD REMOTE/WIRELESS REMOTE BATTERY LEADS: 2 X 1.8M HEAVY DUTY LEADS FINISH: BLACK POWDER COAT NET WEIGHT: 60KG GROSS WEIGHT: 70KG (INCLUDES PACKAGING) WARRANTY: LIMITED LIFETIME
