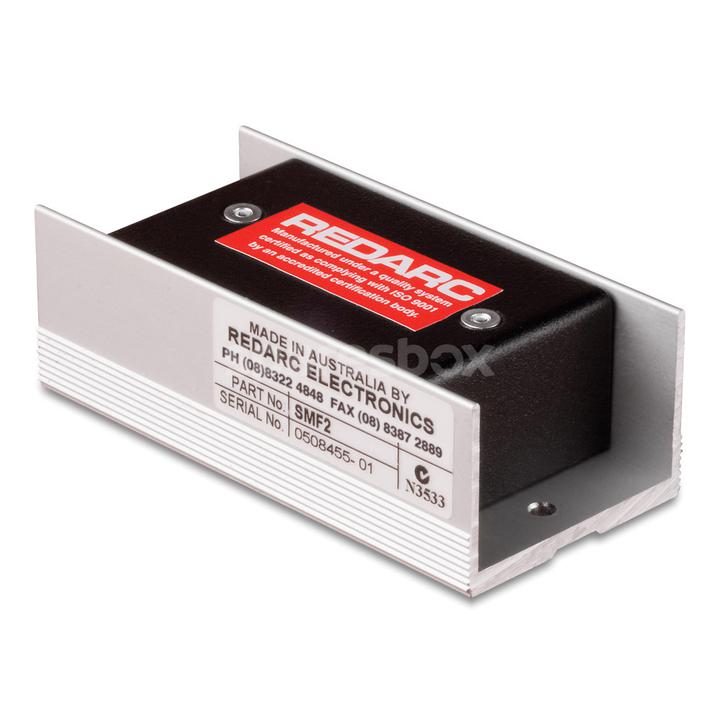

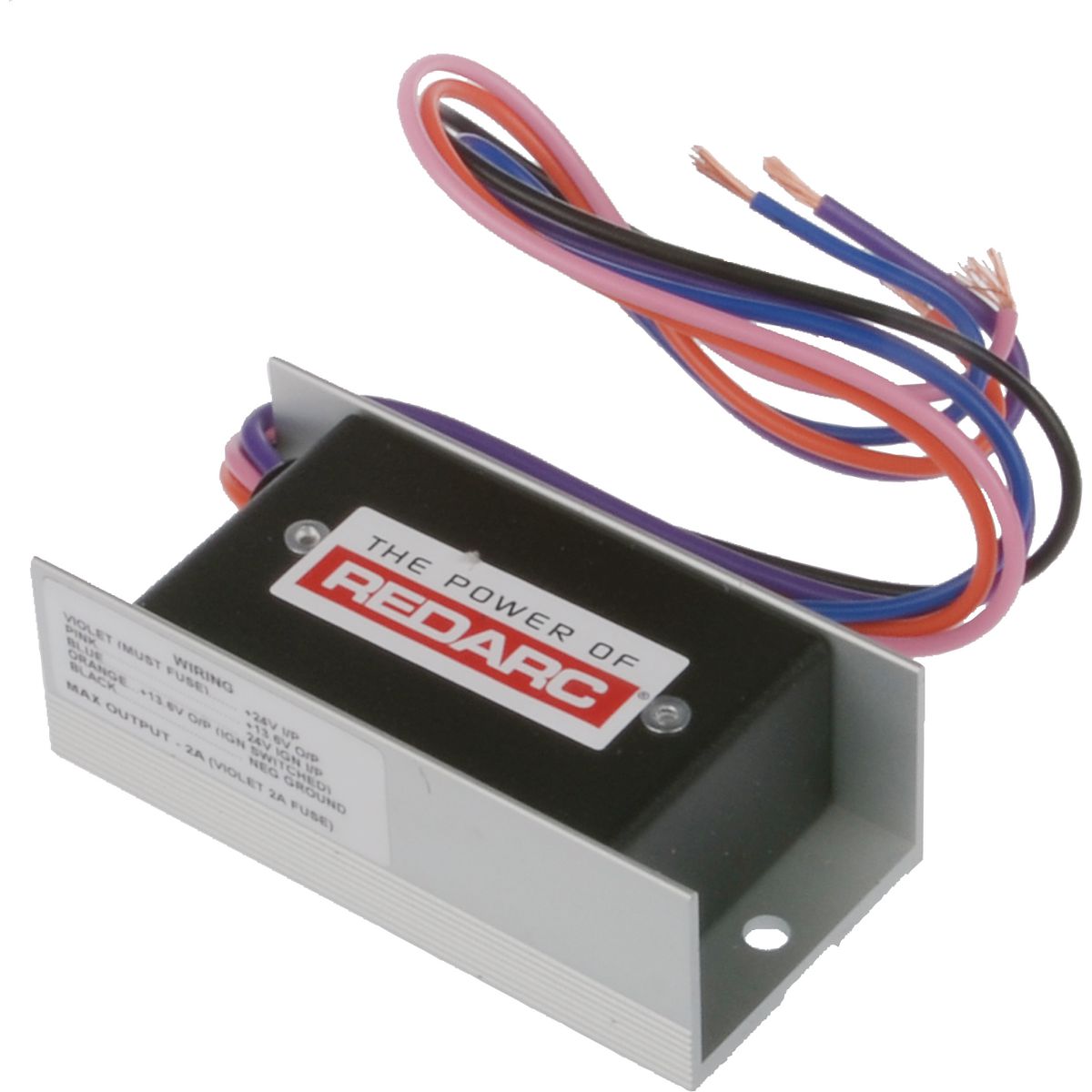

REDARC Voltage Reducer 2A Switchmode SMF2
REDARC Voltage Reducer 2A Switchmode SMF2
Regular price
$195.95 AUD
Regular price
Sale price
$195.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
REDARC Voltage Reducer 2A Switch mode SMF2
Designed for minimal loads such as lamps and small motors, the 2A REDARC Voltage Reducer is intended to supply 13.6V (+/-5%) from a 24V negative ground automotive electrical system.
You have two options for output: ignition switched and constant. The constant output is useful for applications such as radio memory, and increases the versatility of this unit.
SPECIFICATIONS
Input (Operating) Voltage: 19 - 33VDC
Output System Voltage: 13.6VDC
Output Current Rating (Cont.): 2A
Input Fuse Rating: 2A
Warranty: 2 Years
Standby Current Draw: 15mA
Length (mm): 90
Width (mm): 45
Height (mm): 30
Weight (kg): 0.185
Designed for minimal loads such as lamps and small motors, the 2A REDARC Voltage Reducer is intended to supply 13.6V (+/-5%) from a 24V negative ground automotive electrical system.
You have two options for output: ignition switched and constant. The constant output is useful for applications such as radio memory, and increases the versatility of this unit.
SPECIFICATIONS
Input (Operating) Voltage: 19 - 33VDC
Output System Voltage: 13.6VDC
Output Current Rating (Cont.): 2A
Input Fuse Rating: 2A
Warranty: 2 Years
Standby Current Draw: 15mA
Length (mm): 90
Width (mm): 45
Height (mm): 30
Weight (kg): 0.185
