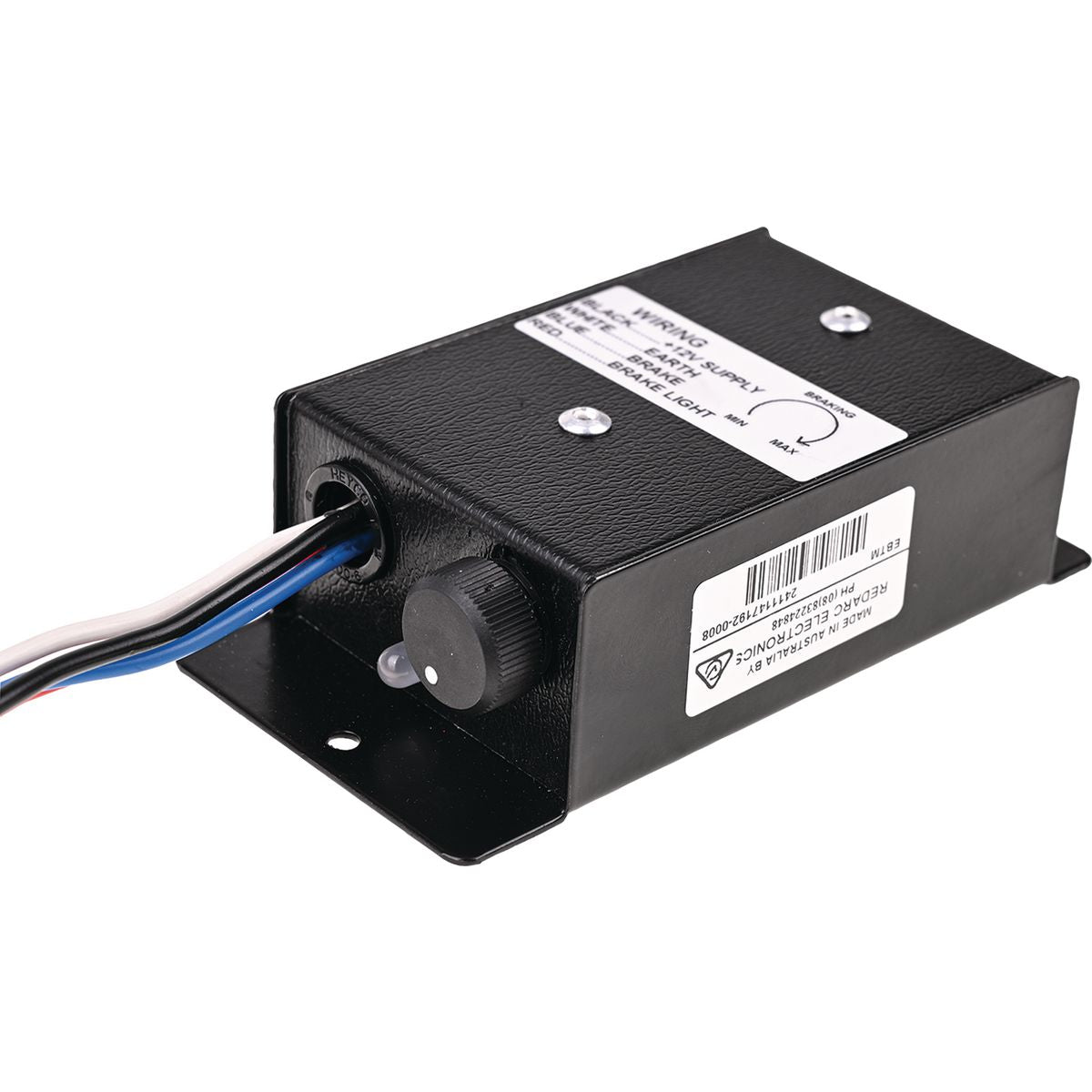

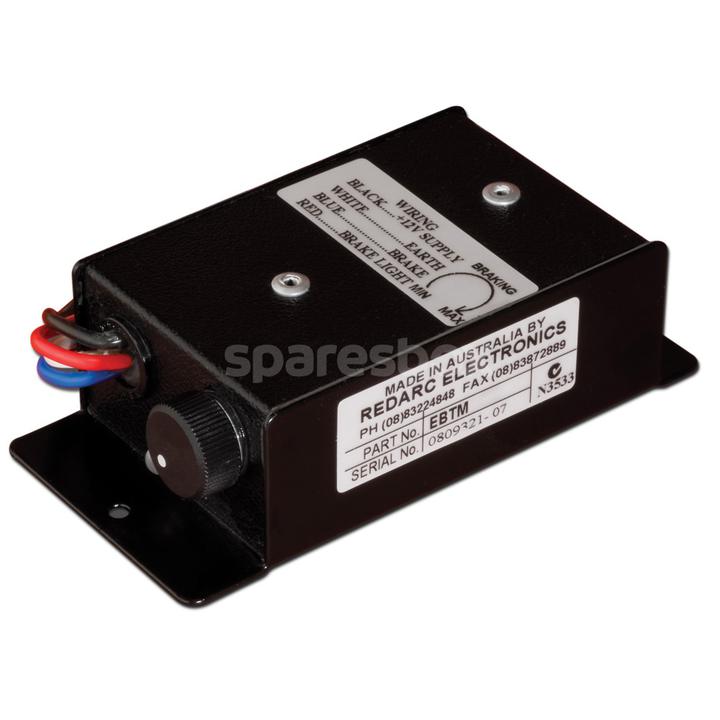

REDARC Trailer Mount Electric Brake Controller 12V EBTM

The REDARC Trailer-Mounted Electric Trailer Brake Controller is a simple, weather-resistant system to ensure safe braking when towing a trailer, camper, caravan, or boat trailer. This unit is completely potted in silicone elastomer, ensuring a high level of protection against vibrations, weather, and driving conditions.

This unit operates similarly to the EB Brake Controller. However, since a manual button is not needed on this style of brake controller, it has been removed to make space for an auxiliary 12-volt available at the trailer socket. Ensure that the 12V supply in your trailer is adequate to supply sufficient power.

Note: You may need to check with local transport authorities regarding the usage of trailer-mounted electric trailer brake controllers in your state.

The REDARC Brake Controller is delivered with a 2-year manufacturer's warranty covering faults and material defects.

Specs

Model number: EBTM

Input (Operating) Voltage: 12VDC

Input Fuse Rating: 30A (Circuit Breaker)

Protection: Reverse Polarity, Short Circuit

Weight (kg): 0.3

Output System Voltage: 12VDC

Output Current Rating (Cont.): 18A

Length (mm): 100

Width (mm): 50

Height (mm): 30
