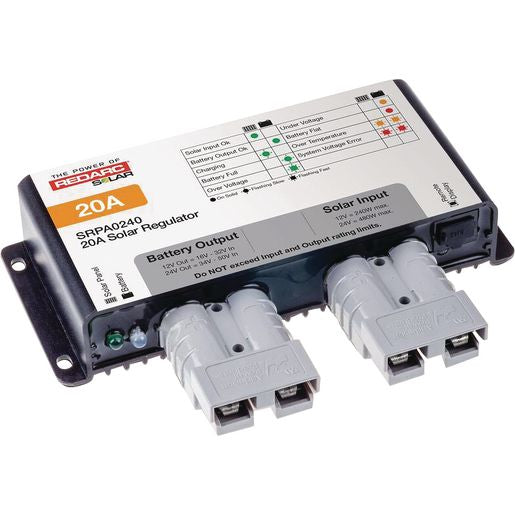

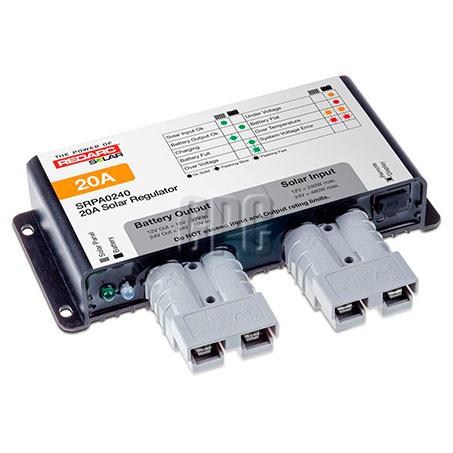

REDARC Solar Charge Regulator 12/24V SRPA0240

The REDARC 20A Solar Regulator suits the 150W and 190W Sunpower? Solar Blankets. It ensures that the power the panels supply to the auxiliary batteries is the correct voltage, so that maximum charge can be maintained, while also protecting your batteries from overcharge, over temperature, and reverse polarity. The SRPA0240 can charge two separate battery banks simultaneously, featuring dual-battery outputs. Your new REDARC solar regulator is perfect for permanent or portable systems in motorhomes, caravans, and camper trailers. The SRPA0240 can be used with multiple chemistry batteries, including AGM, Standard, and Calcium* and features genuine industry-standard AndersonSB50 plug connection - just plug and play!

The REDARC SRPO240-RM Remote Monitor is a fantastic addition to your solar-power setup and complements REDARC Regulators. The remote allows you to keep track of how your solar panels and batteries are performing via a large, backlit LCD screen.

*Battery default setting is AGM - the REDARC Solar Remote Monitor can easily change battery types and configuration settings.

REDARC 20A Solar Charge Regulator SPECS

Input (Operating) Voltage: 12V/24V
Maximum Power Rating: 240/480W
Output Current Rating (Cont.): 20A
Charge Type: PWM 50HZ
Waterproof IP rating: Yes - IP55
Operating Temperature: -35 degrees to +55 degrees
Height (mm): 28
Length (mm):153
Width (mm): 103
Weight (kg): 0.52
Warranty: 2 Years
