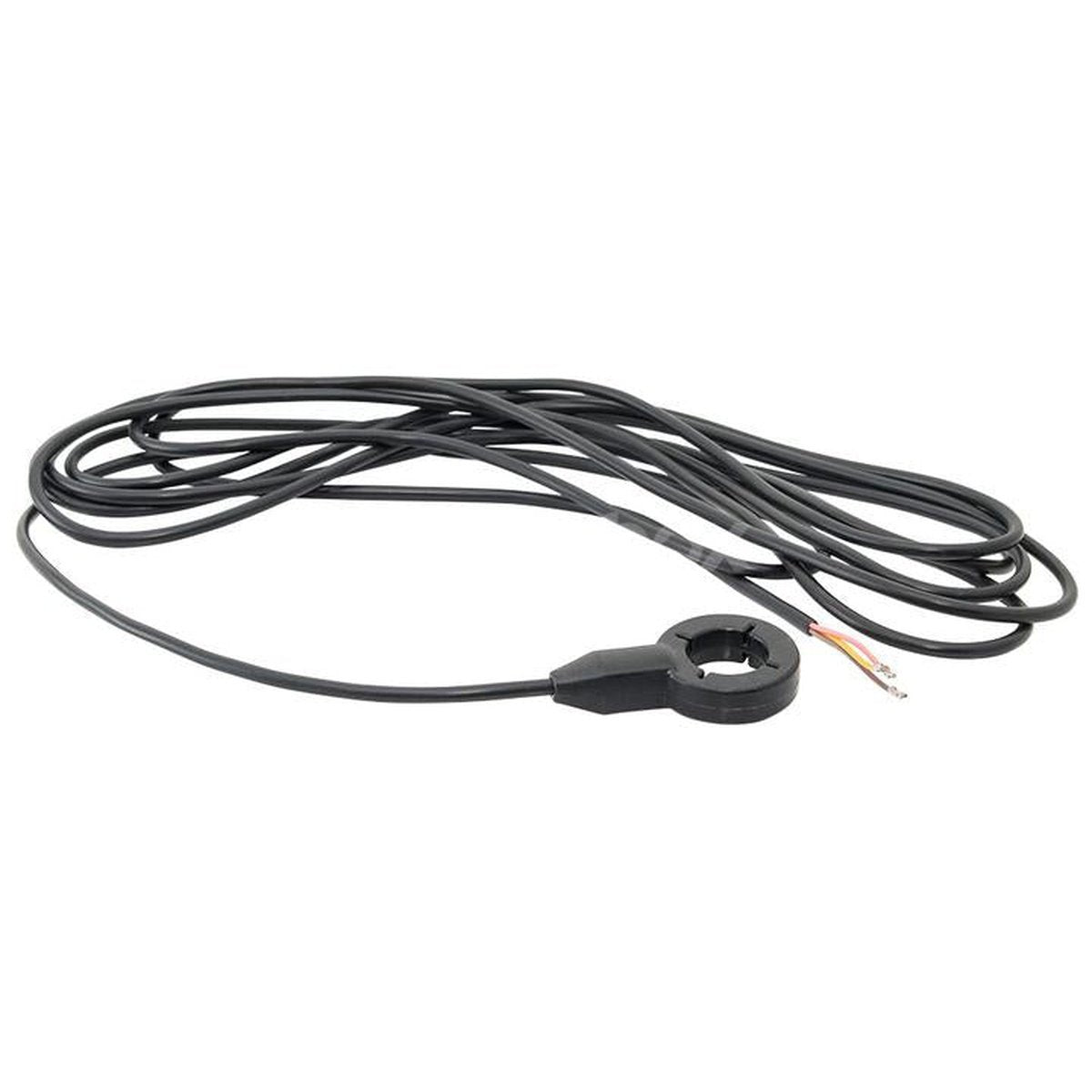

REDARC Hall Effect Current Sensor 8V GS-AMPS

Designed to measure the current flowing in a circuit and to output the value of that current as a voltage signal, the GS-AMPS Hall Effect Current Sensor is 100A rated sensor that is compatible with a range of REDARC Gauges. The high-performance, compact sensor is cable-mounted and fully sealed, allowing it to be installed in rugged conditions and environments where reliability is a must.

This optional sensor is compatible with the following REDARC gauges: G52-VVA, G52-VA, G52-BEA and G52-TA.

The GS-AMPS Hall Effect Current Sensor is delivered with a 2-year manufacturer's warranty covering faults and material defects.

Specs

Supplied Cable: 4m

Input (Operating) Voltage: 8VDC

Length (mm): 54

Width (mm): 31

Height (mm): 10

Weight (kg): 0.1
