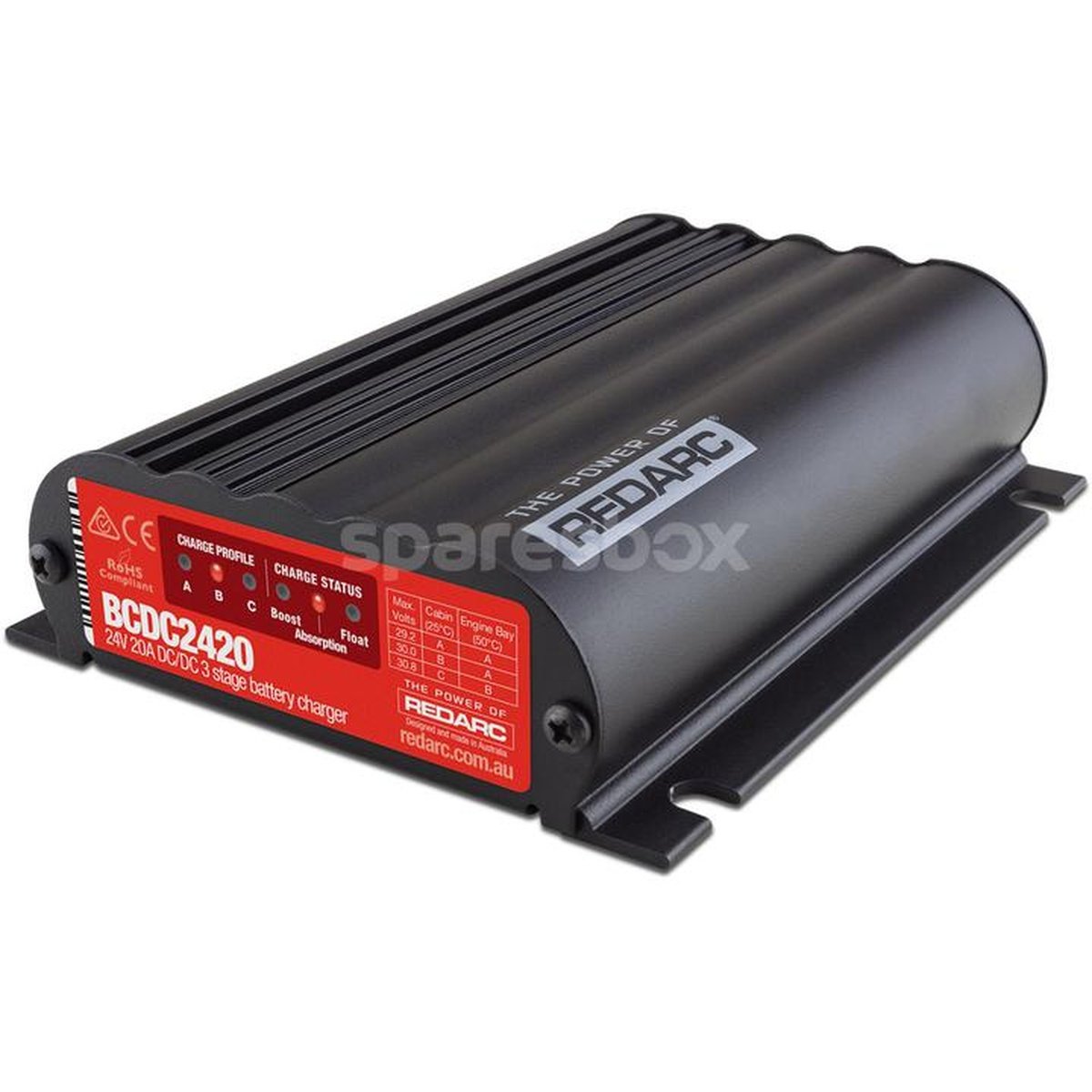

REDARC 20A Battery Charger DC to DC 24V BCDC2420-LV

Envisioned as a market-leading low-voltage charger, the 20A REDARC DC-to-DC Charger works to charge all major lead acid batteries.

The unique three-stage charging profile works well with a range of 24V battery systems including AGM, gel, VRLA, and standard lead acid systems. The versatility and multi-stage platform make it a natural match for trucks and other heavy vehicles. An MPPT Solar Regulator means that you can use your 12V solar panels to charge your 24V auxiliary batteries a must for anyone seeking total self-reliance.

SPECIFICATIONS

Input (Operating) Voltage: 9 - 32VDC
Maximum Charging Voltage: 30.6V
Output Current Rating (Cont.): 20A
Input Current (Max.): 40A
Input Fuse Rating: 50A
Output Fuse Rating: 30A
Warranty: 2 Years
Standby Current Draw: <50mA
Output System Voltage: 24VDC
Output Power: 600W
Length (mm): 150
Width (mm): 120
Height (mm): 37
Weight (kg): 0.68
Type Approval: E and CE
