PWR Universal Water To Oil Cooler - In-Line 3in X 3inX 8in With 44.5mm Outlets PWO5963

Universal Water To Oil Engine Oil Cooler In-line 3" x 3"x 8" with 44mm Outlets

Product Details:

• Universal fitment for easy installation
• High heat transfer
• Low pressure drop
• Dash-10 ORB female ports for male adapters or flanged outlets depending on application
• Start of the art controlled atmosphere brazing process
• Pressure tested and guaranteed
• 1 Year manufactured warranty
• 100% Australian made
• 100% Australian made

The PWR Water to Oil Heat Exchangers are very robust all aluminium construction units featuring complex tube & fin internal cores ideal when there is minimal space for a conventional oil cooler. Plumbed in between the cold side outlet of the radiator and inlet of the water pump, thick-wall extruded tubes carry the coolant flow, whilst the multiple pass baffle configuration within the shell guides the oil flow through a fine, yet robust turbulation fin in-between each tube. This innovative design provides maximum liquid to surface contact on both the coolant and oil passages, yet proves to be a high flowing unit to ensure minimal pressure drops in each of the fluid systems. The result is a very reliable high heat transfer oil cooler in a low pressure drop configuration made 100% in Australia from the finest materials and crafted by our passionate fabricators.

Specifications:

• Natural Aluminium Finish

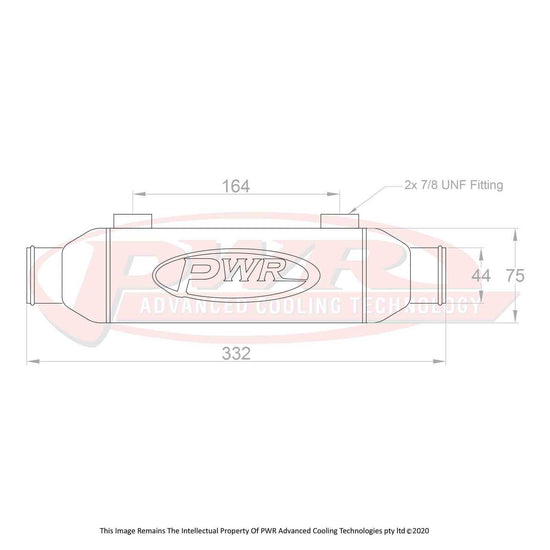

• 75 x 75 x 332mm
• Extruded Tube and Water Fin
• 7/8 UNF Fittings

What's Included:

• x1 Universal Water to Oil Cooler

Compatibility:

• Universal Part
