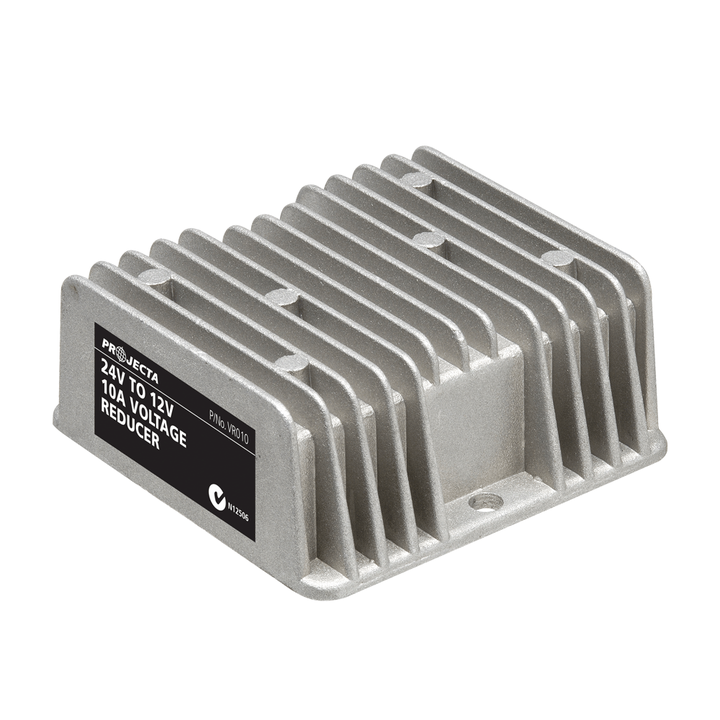

PROJECTA Voltage Reducer 10A 24-12V VR010

Projecta's 10 Amp Voltage Reducer is the perfect solution to power 12V accessories through a 10A cigarette lighter! Gone are your frustrations with not having the power abilities you wanted for your in-car accessories - such as your phone and Ipad. Small and unobtrusive, the VR010 is only 32mm in height.



SPECIFICATIONS

Constant output current: N/A
Ignition switched output current: 10A
Standby operating current: 0.015mA
Operational current draw: 60mA
Efficiency: 95%

PROTECTION

Over and under voltage protection
Overload protection
Short circuit protection
Over temperature protection
Reverse Polarity protection via the fuse on the input wire

INSTALLATION
The reducer can be mounted in or outside the vehicle. Securely mount and ensure adequate ventilation.

WIRING

RED WIRE - 24V Input (Fused)
BLUE WIRE - 24V Ignition
YELLOW - 13.6V Ignition switched power
BLACK - Ground

FUSE: VR010 10A

OPERATION

In the event of an overload the output voltage will diminish until the overload is removed.
