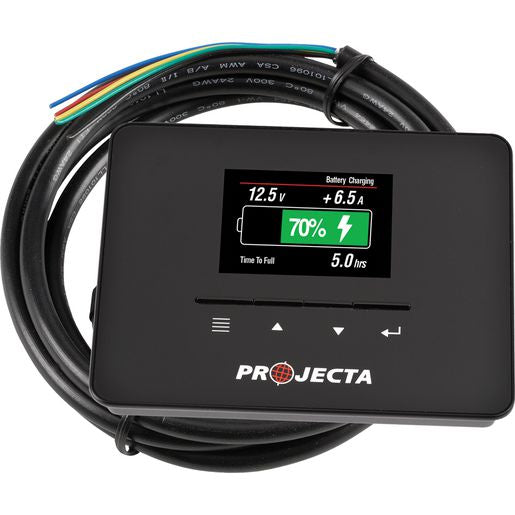

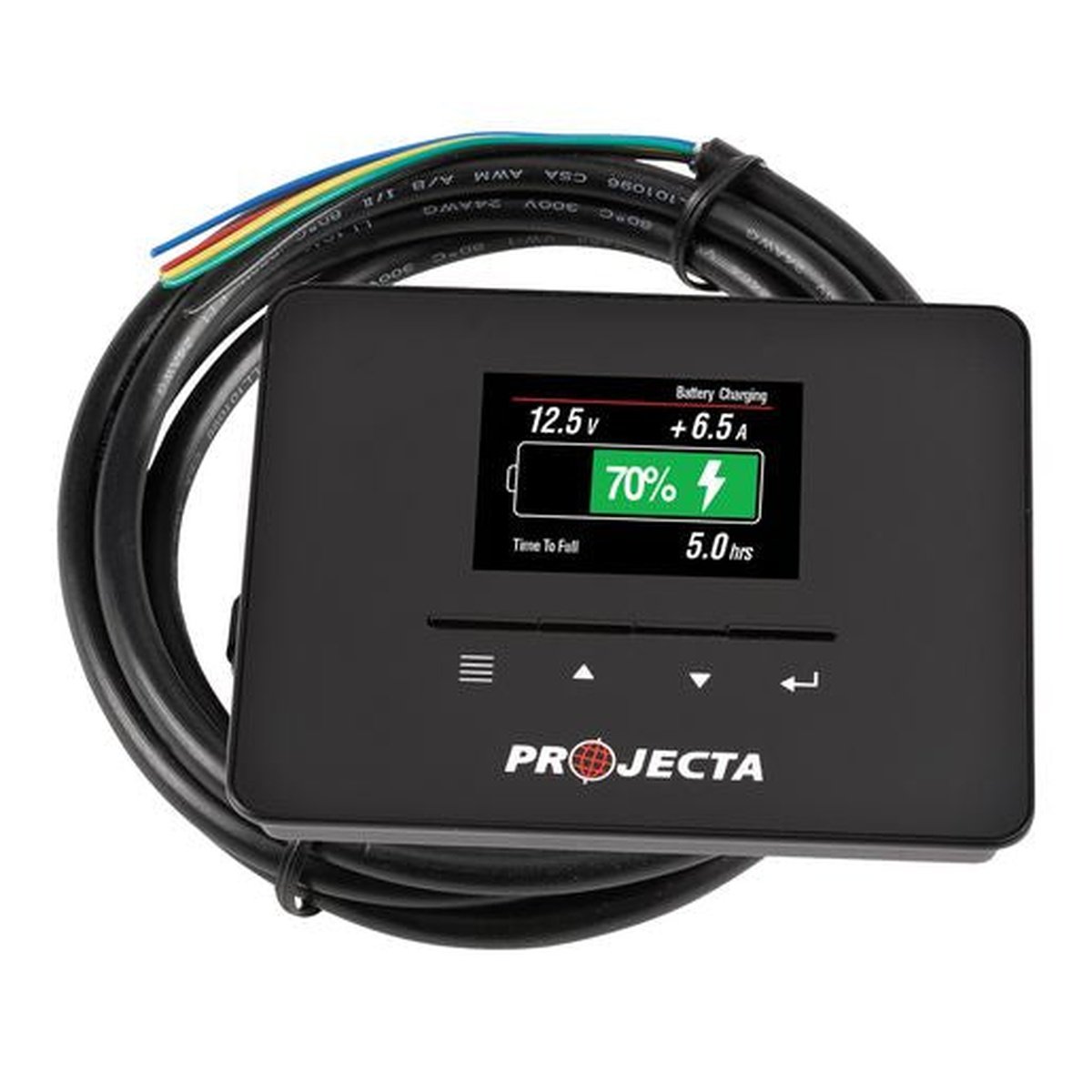

PROJECTA Smart Battery Monitor BM320

Battery maintence is a critical issue that many drivers are not on top of. You can avoid the inconvenience, and even danger, of having a flat or malfunctioning battery with Projecta's superior battery-maintenace technology - meet their 12V Smart Battery Gauge! The perfect addition to your camper trailer or caravan interior, the BM320 will let you keep on top of your battery's total capacity, overall health, and general status. All data is (literally) at your fingertips, via the BM320's full-colour LCD interface that incorporates two screens. The first screen is ideal for the novice user who is looking for general battery-performance information, while the second goes into more detail - providing information on ambient temperature, state of health, and battery capacity.



Projecta have a great range of battery maintenance equipment that will test battery condition and charge so that you can get the most out of your batteries. Achieve safe usage, a longer battery life, and unwaivering performance from all of your batteries with Projecta battery maintenance equipment!



SPECIFICATIONS

CURRENT DRAW: 12V/1.5mAdc

INPUT VOLTAGE RANGE: 6.0-17.0Vdc

MAX CURRENT: 320A

BATTERY CAPACITY SUPPORTED: 5-320AH

DISPLAY RESOLUTION

Current: 0.1A
Voltage: 0.1V
Battery Capacity: 0.1Ah

TYPE OF BATTERY SUPPORTED: Wet/AGM/Gel/Calcium

CABLE LENGTH: 1.5m

CONNECTORS:

Terminal Block
Molex 4 pin snap fit

DISPLAY:

TIME REMAINING (to full/to empty)

POWER REMAINING (Ah)

CHARGING/DISCHARGING STATUS

BATTERY STATE OF HEALTH (Ideal, Good, Fair, Poor)

PROTECTION: REVERSE POLARITY PROTECTED

MINIMUM VOLTAGE: 6V

INPUT OVER VOLTAGE PROTECTION: 17V
