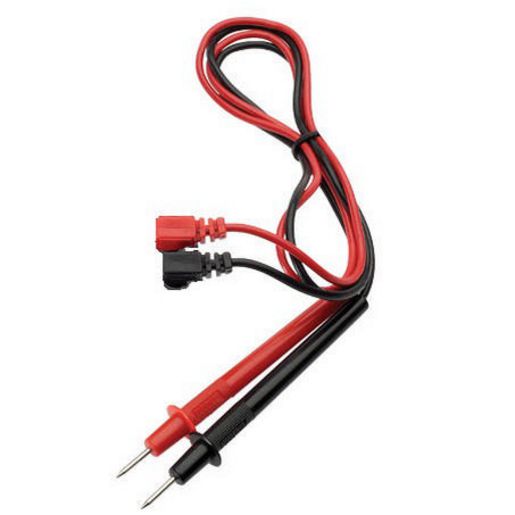

PROJECTA Multimeter Test Leads DT830BTL

The Projecta Digital Multimeter is a convenient and reliable entry-level multimeter that is perfect for either a first-time user or someone experienced in vehicle maintenance and electronics. Easily select the function and range to be measured with a simple rotary switch - it's that easy! When the internal battery is low, a symbol will be displayed that is easily visable on the front screen. Check out DT830BTL for replacement Battery Test Leads.



SPECIFICATIONS

POLARITY: Auto indication (-)

VOLTAGE:

DCV: 200mV, 2000mV, 20V, 200V & 1000V
ACV: 200V & 750V (45–450HZ)

CURRENT

DCA: 200(1 millionth)A, 2000(1 millionth)A, 20mA, 2000mA & 10A

RESISTANCE: 200 Ohm, 2000 Ohm, 20k Ohm, 200k Ohm & 2000k Ohm

DRY CELL BATTERY CHECK: 1.5V (AAA, AA, C & D) & 9V

DIODE TEST: 1mA current for forward Vdrop

TRANSISTOR TEST: hFE (0-1000) @ 3.2Vce

ACCURACY: < ± 1.0% full scale reading

BATTERY: 9V dry cell

INTERNAL FUSE: M205 (F500mA)

LOW BATTERY WARNING: 7.5V

SIZE: 126mm x 69mm x 24mm

WEIGHT: 115g
