PROJECTA Battery Tray fits Toyota Hilux Diesel 2005-On HDBT114
PROJECTA Battery Tray fits Toyota Hilux Diesel 2005-On HDBT114
Regular price
$329.76 AUD
Regular price
$387.95 AUD
Sale price
$329.76 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

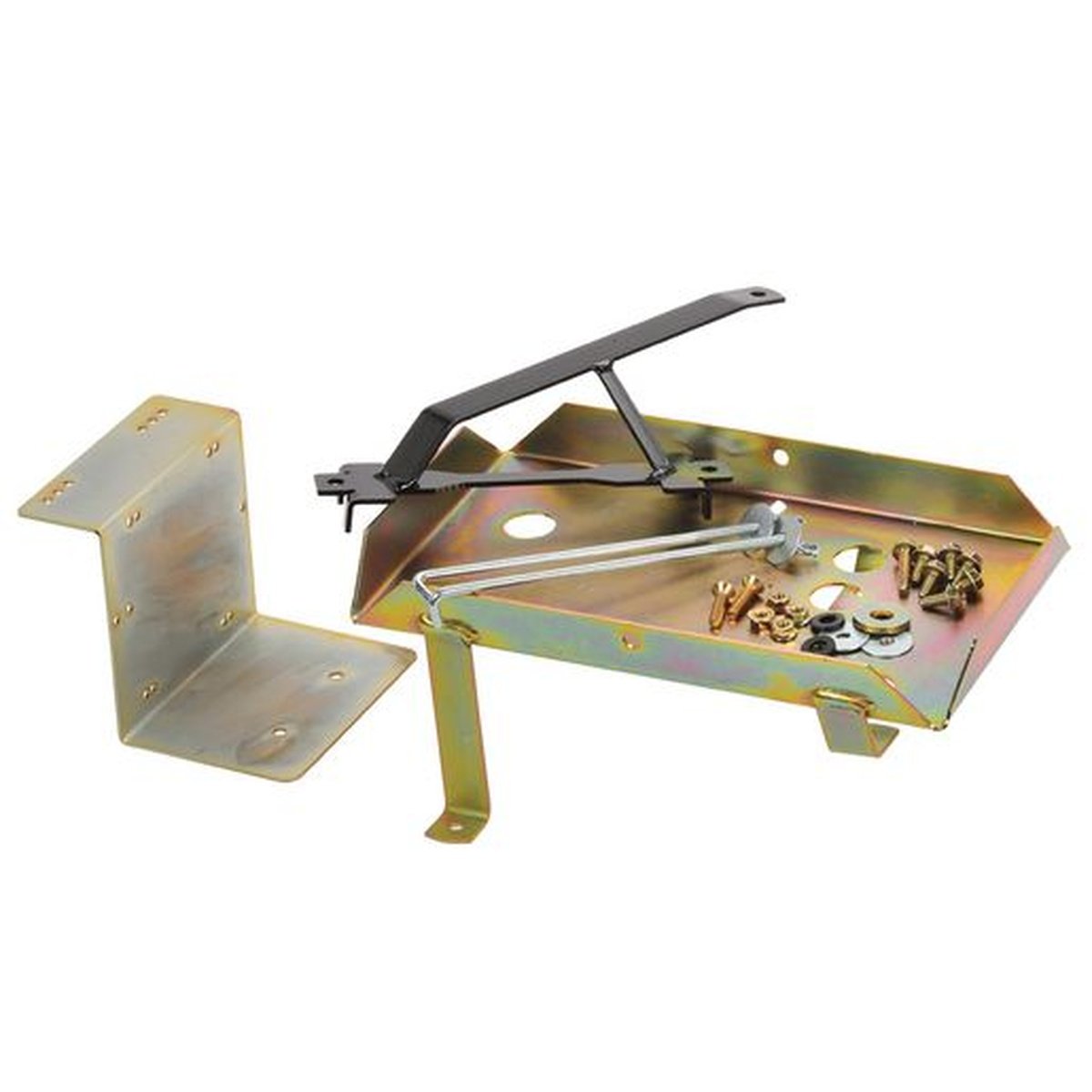

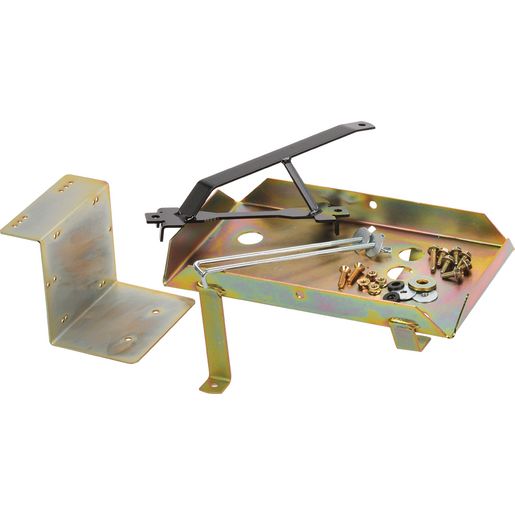

Battery Tray for Toyota Hilux Auto/Manual Diesel 1KD–FTV, 3.0 Litre Turbo Diesel & 1 GR-FE, 4.0 Litre V6 Petrol (2005-2014)
Custom-made for the Toyota Hilux, the HDBT114 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
2 x 25mm-6mm Panel Washer
1 x 30mm M6 Bolt
2 x Black Washer
2 x M6 bolt, Countersunk, 25mm
6 x M6 20mm bolt
4 x M6 Whizlock Nuts
1 x Gold Spacer Washer
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Passenger side near Firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2a. Unplug Diesel computer plugs.
2b. Remove computer.
2c. Remove computer bracket from vehicle.
3. Refit diesel computer to supplied computer bracket using the 3 original screws.
4. Bolt computer bracket to tray using 2 x M6 countersunk, 25mm long bolts and tighten using the 2 x M6 Whizlock nuts.
5. Place battery tray into position and line up with 2 x Captive nuts and 2 x existing holes. Use 4 x M6 bolts and 2 x 25mm Panel Washers & 2 x M6 Whizlock nuts.
Custom-made for the Toyota Hilux, the HDBT114 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
2 x 25mm-6mm Panel Washer
1 x 30mm M6 Bolt
2 x Black Washer
2 x M6 bolt, Countersunk, 25mm
6 x M6 20mm bolt
4 x M6 Whizlock Nuts
1 x Gold Spacer Washer
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Passenger side near Firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2a. Unplug Diesel computer plugs.
2b. Remove computer.
2c. Remove computer bracket from vehicle.
3. Refit diesel computer to supplied computer bracket using the 3 original screws.
4. Bolt computer bracket to tray using 2 x M6 countersunk, 25mm long bolts and tighten using the 2 x M6 Whizlock nuts.
5. Place battery tray into position and line up with 2 x Captive nuts and 2 x existing holes. Use 4 x M6 bolts and 2 x 25mm Panel Washers & 2 x M6 Whizlock nuts.
