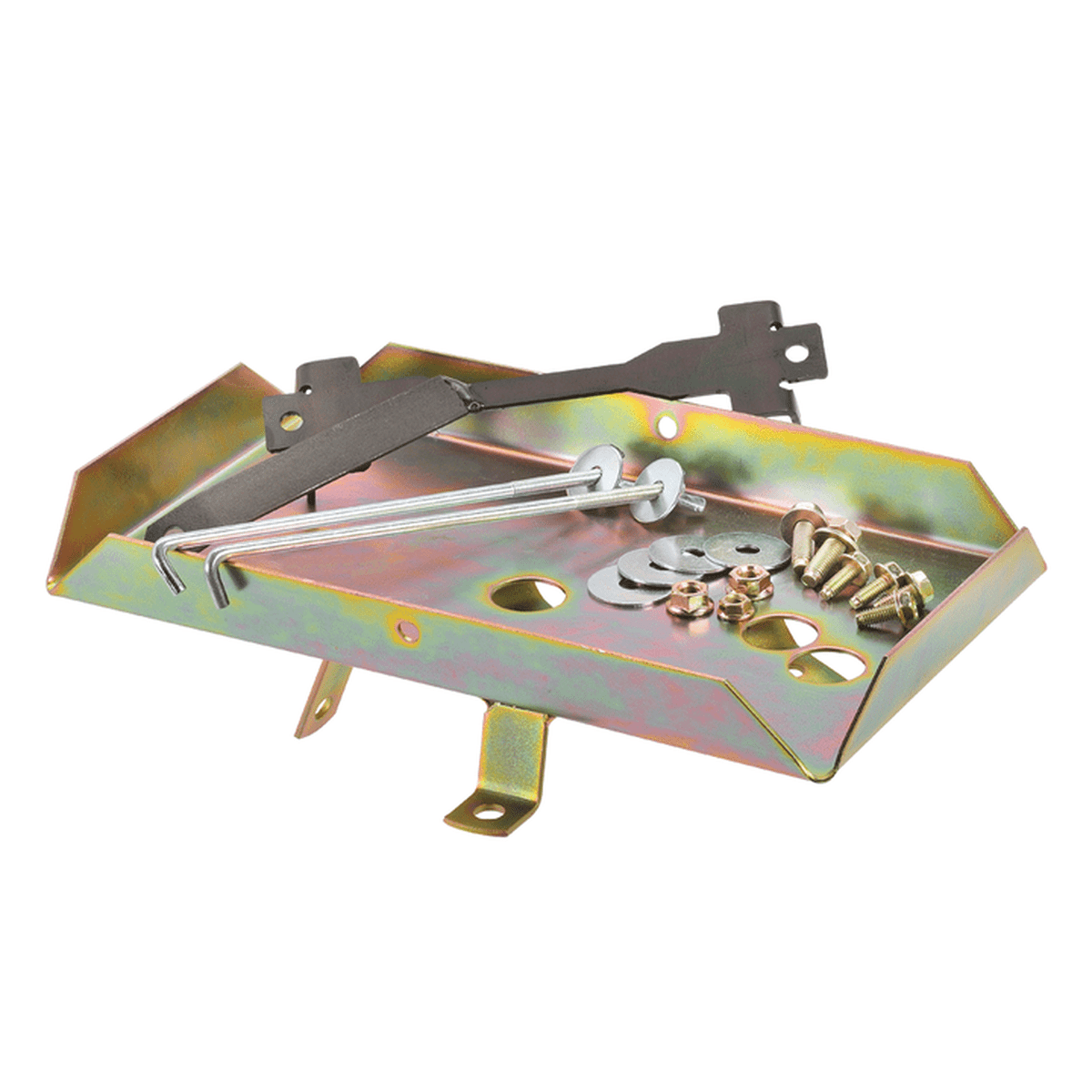

PROJECTA Battery Tray fits Nissan Navara D22 08-On HDBT154
PROJECTA Battery Tray fits Nissan Navara D22 08-On HDBT154
Regular price
$235.46 AUD
Regular price
$313.95 AUD
Sale price
$235.46 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Battery Tray for Auto/Manual Navara D22 2.5 Litre Diesel (2008>)
Custom-made for the Nissan Navara D22, the HDBT154 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
4 x M6 Bolts
2 x M8 Bolts long
2 x M8 Nut
4 x M8 Body Washer
2 x M6 Nut
SPECIFICATIONS
Max Battery Size (mm) L300x W175 x H220 (No Snorkel fitted)
L265 x W175 H220 (Snorkel fitted)
Max Battery Weight 22Kg (No Snorkel fitted) 17Kg (Snorkel fitted)
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Passenger Side near radiator support
Special Notes May require a workshop to remove the pre cleaner and seal up the hole
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Place the tray in position, the holes in the tray should line up with the holes in the body. Pre Cleaner may need to be removed.
3. Bolt the tray in using the M6 bolts. Use the existing 2 captive nuts in the body and the supplied body washer and nuts for the other 2 holes.
4. Bolt 1 x M8 bolt in the leg of the tray, use the body washer and nut. Use 1 x M8 Bolt through the radiator support frame use the body washer and nut.
5. Place the battery in the tray, attach the 2 x J bolts, fit the special top mount and bolt to the radiator support frame.
6. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
