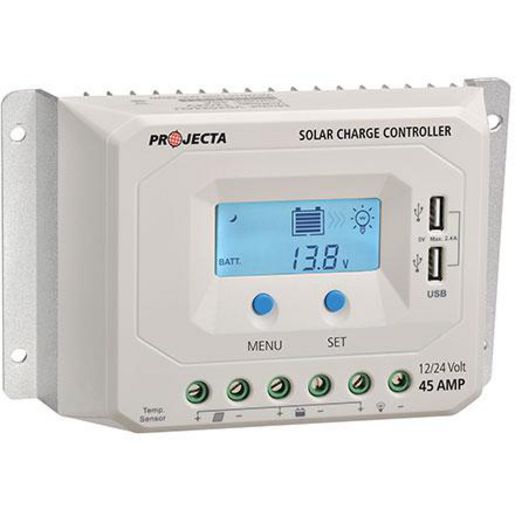

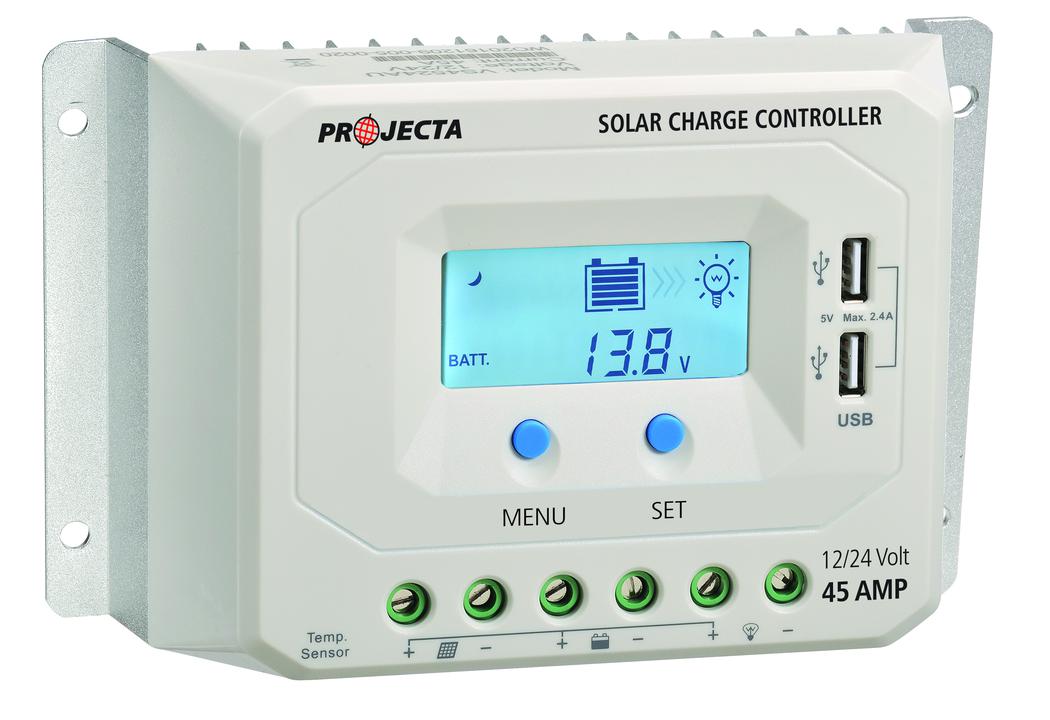

PROJECTA 45A 12/24V Solar Charge Controller 4 Stage Auto SC245
PROJECTA 45A 12/24V Solar Charge Controller 4 Stage Auto SC245
Regular price
$207.95 AUD
Regular price
Sale price
$207.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Part of the Smart range of Projecta Solar Charge Controllers, the SC245 is enginnered for use with larger deep cycle battery banks, such on those found on motor homes, houseboats, and remote shacks. The low voltage disconnect functionality means that your battery will never be depleted to a damaging level. Another unique feature is that load control function, which allows appliances to be turned on and off directly fromt the unit.
Further to this, the Smart range encompasses the key features of the Everyday Plus Controller range, utilising smart 4-stage charging, with multi-chemistry selection letting you manage both deep-cycle batteries. This means your battery will be kept at its optimal condition, increasing both daily performance and lifespan. Be assured that a thorough level of charge will be maintained with the MCU-controlled PWM controller.

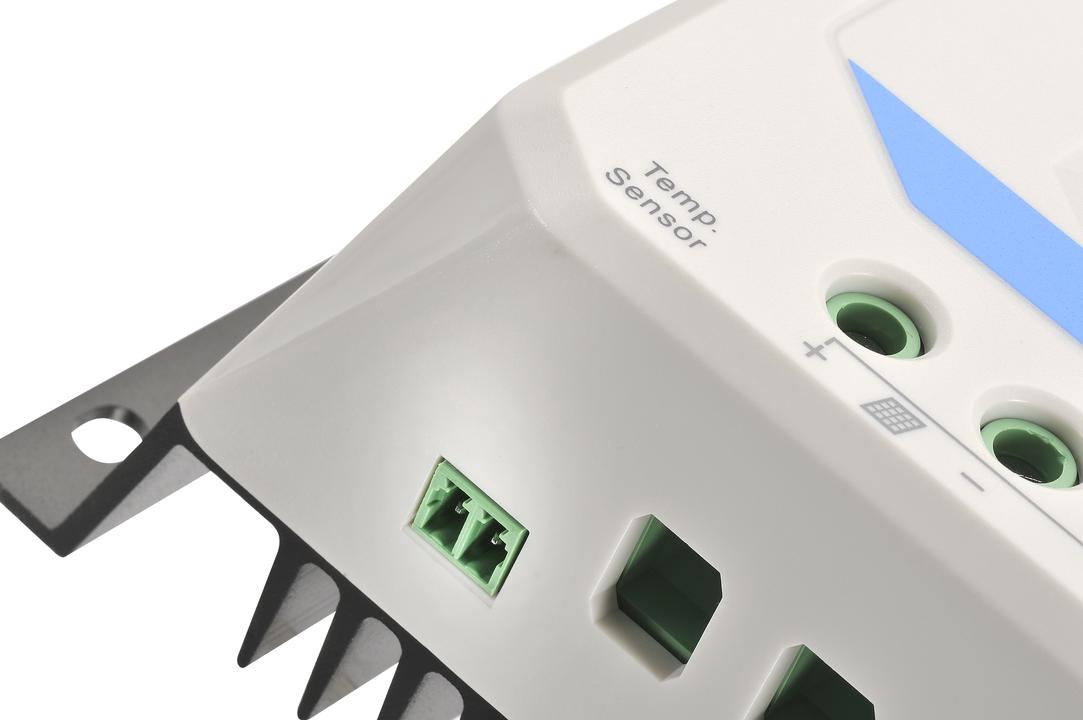

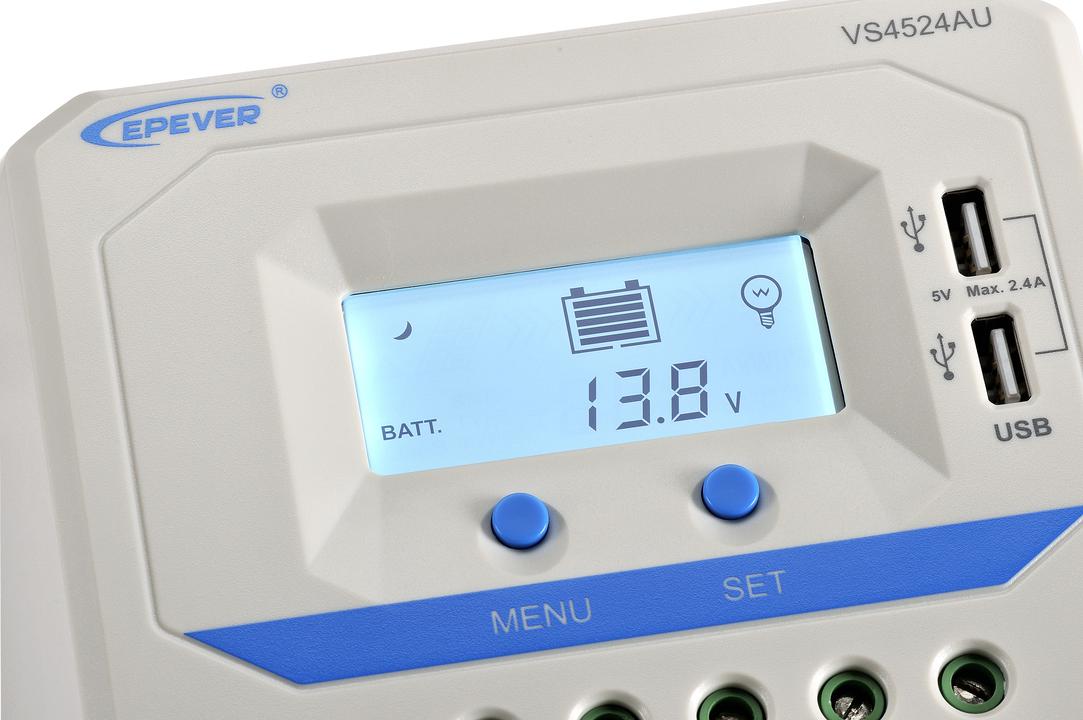

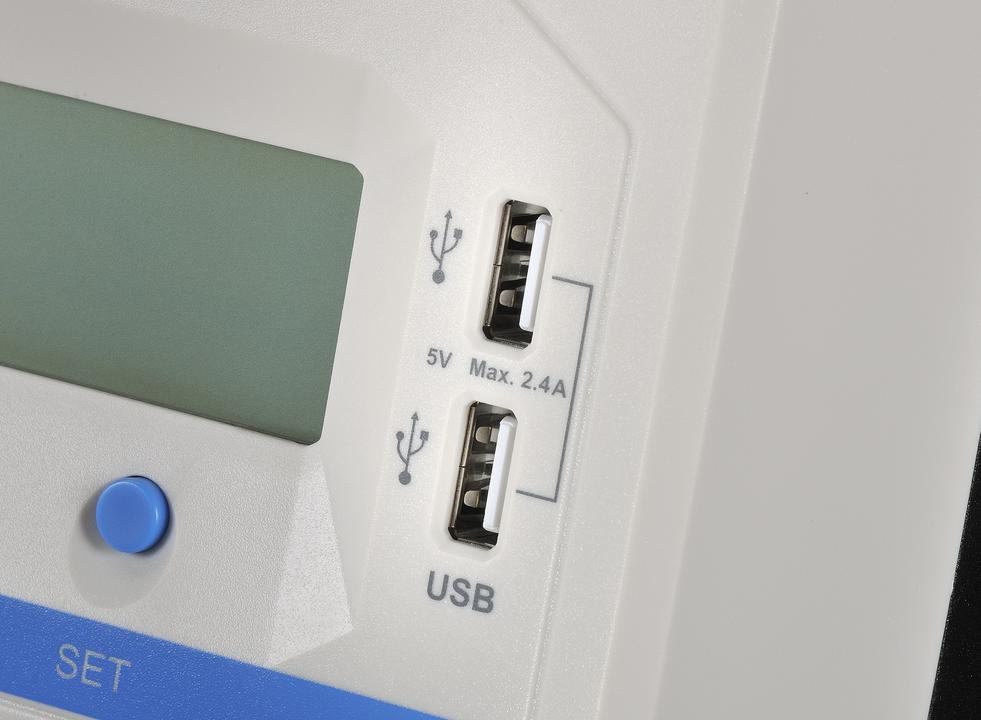

Opt for a Solar Charge Controller that you can get the most out of, at a very competitive price point! Easily see the battery voltage, charging current, charging capacity, fault codes, and more on the digital LED screen that merges practicality with the latest technology. Likewise, the LED charge indicator lets you know the charge status and battery condition, while a built-in temperature sensor lets the unit optimise charge protection. This smart model offer dual USB ports, meaning you can omit power directly from the controller!
SPECIFICATIONS
INPUT: 12V or 24V
MAX INPUT: 50VDC, 45A
MAX CHARGE: 45A
MAX PANEL SIZE: 540W (12V)
BATTERY: 12V or 24V
CHARGE CONTROL 4 Stage Charging Bulk/Absorption :
12V:
Absorption - Gel - 14.2V
Absorption - AGM - 14.4V
Absorption - Wet - 14.7V
Equalisation - AGM - 14.6V
Equalisation - Wet - 14.8V
Float -13.8V
24V:
Absorption - Gel - 28.4V
Absorption - AGM - 28.8V
Absorption - Wet - 29.4V
Equalisation - AGM - 29.2V
Equalisation - Wet - 29.6V
Float -27.6V
NEGATIVE SWITCHING: Yes
LVD DISCONNECT:
12V: Default 11.1V - User Set 9-17V
24V: Default 22.2V - User Set 18-34V
LVD RECONNECT:
12V: Default 12.6V - User Set 9-17V
24V: Default 25.2V - User Set 18-34V
APPROVAL: EMC
IP RATING: IP22
Further to this, the Smart range encompasses the key features of the Everyday Plus Controller range, utilising smart 4-stage charging, with multi-chemistry selection letting you manage both deep-cycle batteries. This means your battery will be kept at its optimal condition, increasing both daily performance and lifespan. Be assured that a thorough level of charge will be maintained with the MCU-controlled PWM controller.
Opt for a Solar Charge Controller that you can get the most out of, at a very competitive price point! Easily see the battery voltage, charging current, charging capacity, fault codes, and more on the digital LED screen that merges practicality with the latest technology. Likewise, the LED charge indicator lets you know the charge status and battery condition, while a built-in temperature sensor lets the unit optimise charge protection. This smart model offer dual USB ports, meaning you can omit power directly from the controller!
SPECIFICATIONS
INPUT: 12V or 24V
MAX INPUT: 50VDC, 45A
MAX CHARGE: 45A
MAX PANEL SIZE: 540W (12V)
BATTERY: 12V or 24V
CHARGE CONTROL 4 Stage Charging Bulk/Absorption :
12V:
Absorption - Gel - 14.2V
Absorption - AGM - 14.4V
Absorption - Wet - 14.7V
Equalisation - AGM - 14.6V
Equalisation - Wet - 14.8V
Float -13.8V
24V:
Absorption - Gel - 28.4V
Absorption - AGM - 28.8V
Absorption - Wet - 29.4V
Equalisation - AGM - 29.2V
Equalisation - Wet - 29.6V
Float -27.6V
NEGATIVE SWITCHING: Yes
LVD DISCONNECT:
12V: Default 11.1V - User Set 9-17V
24V: Default 22.2V - User Set 18-34V
LVD RECONNECT:
12V: Default 12.6V - User Set 9-17V
24V: Default 25.2V - User Set 18-34V
APPROVAL: EMC
IP RATING: IP22
