PIONEER

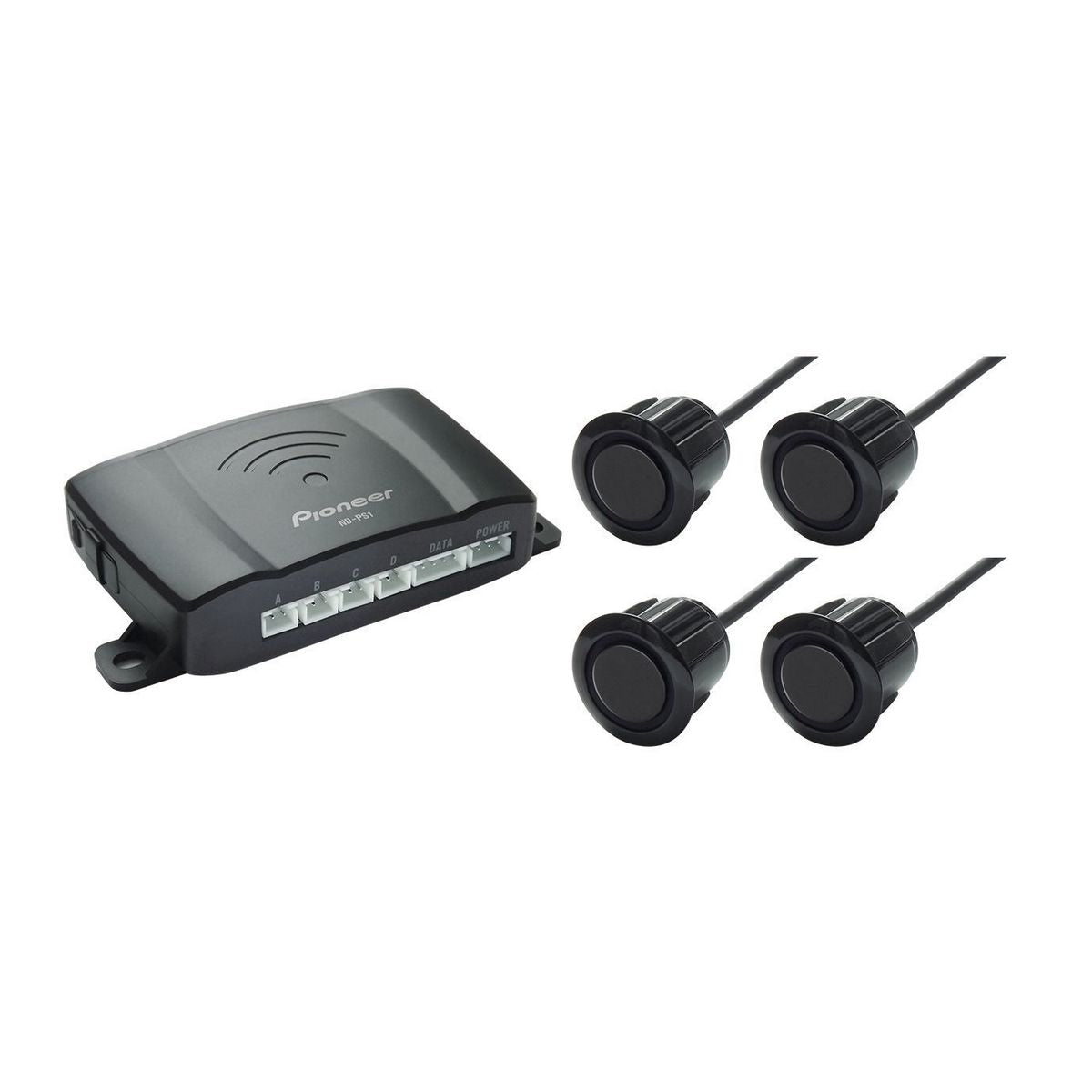

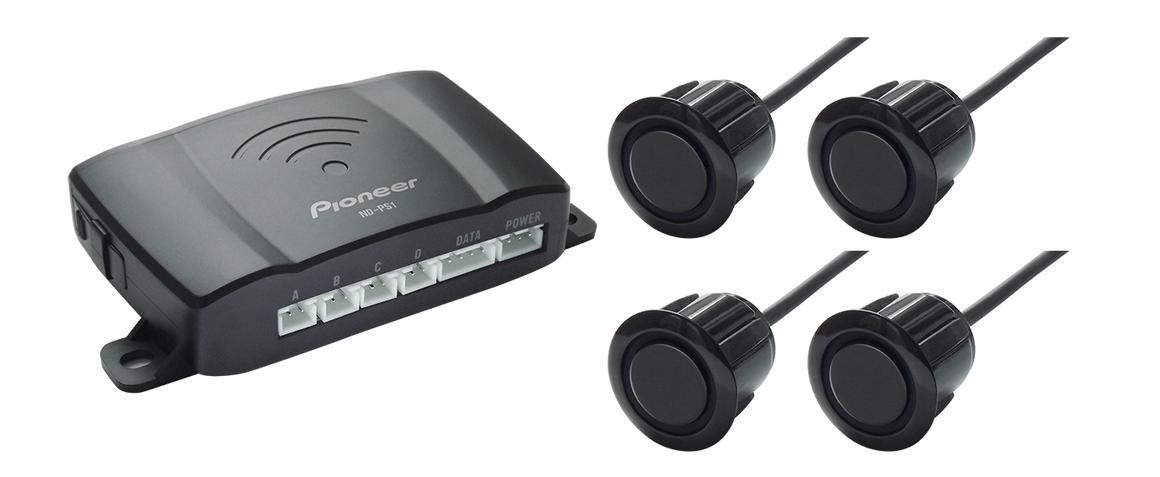

Pioneer ND-PS1 Optional Rear Parking Sensors Suits SPH-C10BT
Pioneer ND-PS1 Optional Rear Parking Sensors Suits SPH-C10BT
Regular price
$151.95 AUD
Regular price
Sale price
$151.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

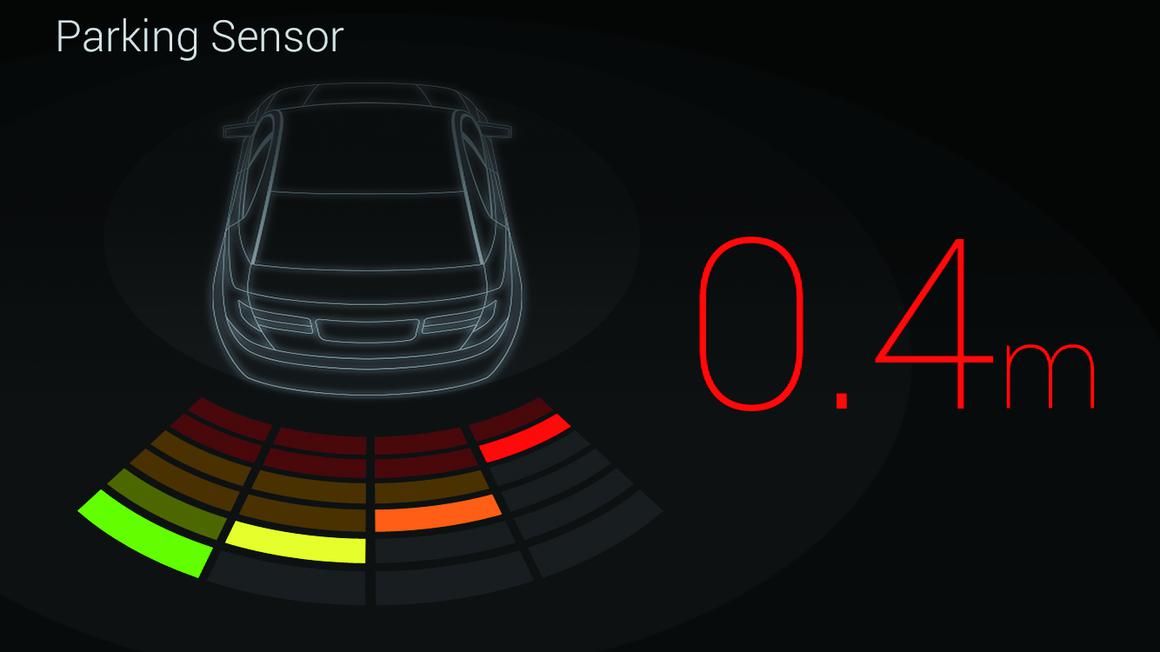

Pioneer's compact yet sensitive rear parking sensor system is perfect for the safety-minded motorist, adding an additional layer of awareness to your vehicle's set-up. Intended for use with SPH-C10BT, this optional extra makes reversing a breeze.
SPECIFICATIONS
Control box specification --
Nominal voltage: 14.4 V DC
Operating voltage: 10.8 ~ 15.1 V DC
Rated current: 10 ~ 30 mA at 14.4 V DC
Detection Range: 0.3 m ~ 2.5 m
Operation temperature range: -30°C ~ 80°C
Dimensions (WxHxD): 105.3 mm x 21.8 mm x 56.0 mm
Weight: 50 g / 1 pc
Cable length --
Power cable: 1 m
Connection cable: 5 m
Sensor specifications --
Center frequency: 40 kHz
Directivity X-axis: 70°
Directivity Y-axis: 70°
Maximum input voltage: 120 Vp-p (at 40 kHz)
IP code:L IP67
Dimensions: φ 23.5 mm x 19.8 mm (exclude cable)
Cable length: 2.5 m
SPECIFICATIONS
Control box specification --
Nominal voltage: 14.4 V DC
Operating voltage: 10.8 ~ 15.1 V DC
Rated current: 10 ~ 30 mA at 14.4 V DC
Detection Range: 0.3 m ~ 2.5 m
Operation temperature range: -30°C ~ 80°C
Dimensions (WxHxD): 105.3 mm x 21.8 mm x 56.0 mm
Weight: 50 g / 1 pc
Cable length --
Power cable: 1 m
Connection cable: 5 m
Sensor specifications --
Center frequency: 40 kHz
Directivity X-axis: 70°
Directivity Y-axis: 70°
Maximum input voltage: 120 Vp-p (at 40 kHz)
IP code:L IP67
Dimensions: φ 23.5 mm x 19.8 mm (exclude cable)
Cable length: 2.5 m
