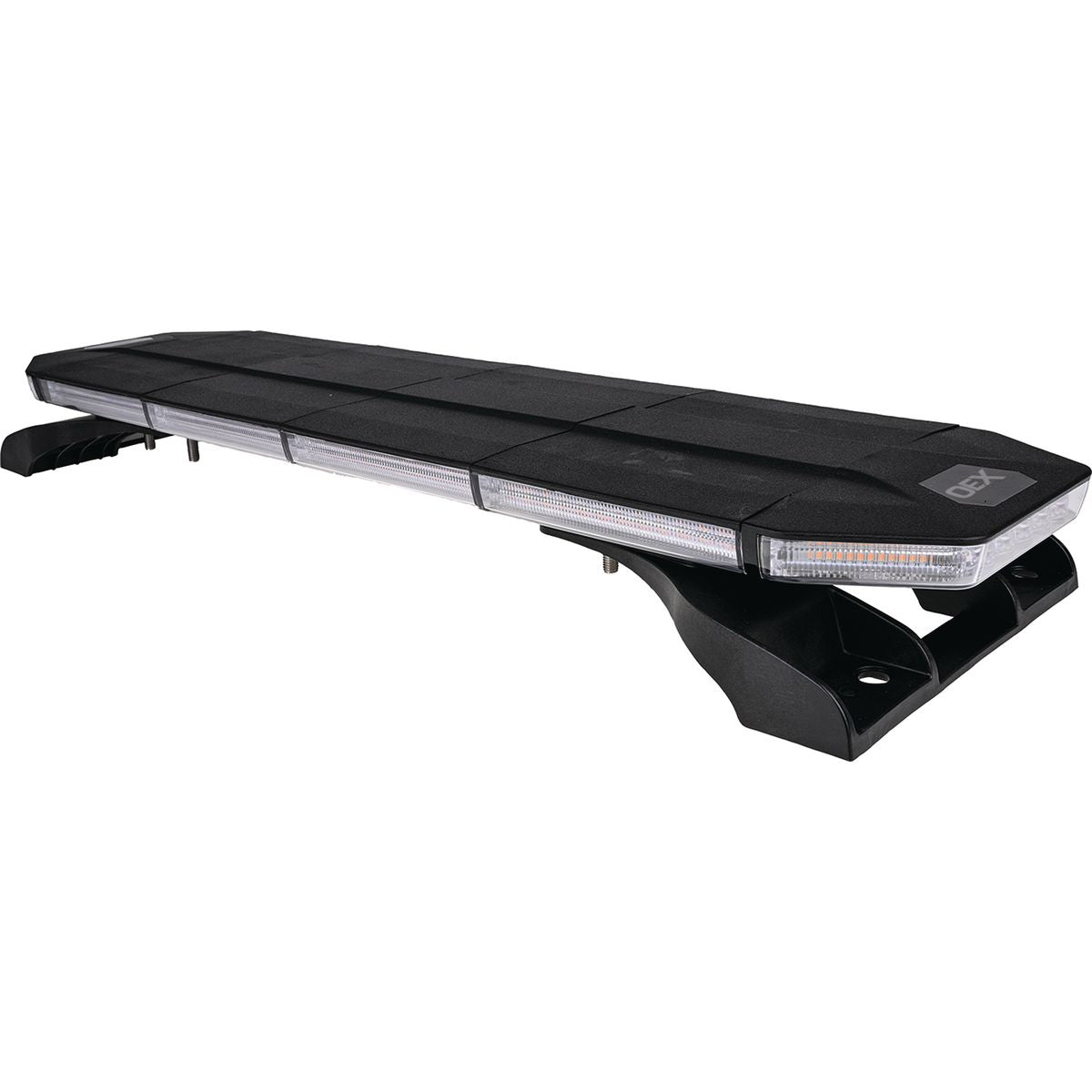

OEX 12/24V LED Low Profile Utility Light Bar, Amber LED - Clear Lens, Bracket Mount - 777MM ACX5740

Low profile, lightweight Amber LED Light Bar for emergency applications that require a high degree of visibility. 168 Amber LED's, with a clear outer lens deliver exceptional light output, meeting SAE J845 Class 1 and ECE R10 standards.

The new Emergency Light Bar from OEX is multivolt, IP67 water and dust proof and meets CISPR25 Class 3 EMC specifications. Featuring 10 Amber flash patterns, including lightweight, adjustable plastic brackets suitable for a wide variety of vehicle and industrial applications.

Features:

• 12-24 Volt
• Clear Lens with Amber Led output
• Multifunction, 10 flash strobe patternECE R65 Class2
• SAE J845 Class 1
• ECE R10, CISPR25 Class 3
• IP67 Rated
• T-Channel bottom mount
• Light weight plastic mounts included
• 3 year warranty

Specifications:

• 168 LED
• 85.5W
• 10Ah @ 12V
• 780 x 200 x 83mm (WxDxH)
• IP67

Wiring:
Standard fitment requires the following wiring:
Red Wire
Positive: Connect to a positive power supply (ensure it passes through a 15A fuse to protect the circuit).

Black Wire
Negative/Earth: Connect to the negative terminal or a grounded earth connection.

Yellow Wire
Use as a trigger to change the flash pattern.
