Narva Trailer Plug 7 Pin Metal Large Round HD 82193
Narva Trailer Plug 7 Pin Metal Large Round HD 82193
Regular price
$90.95 AUD
Regular price
Sale price
$90.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

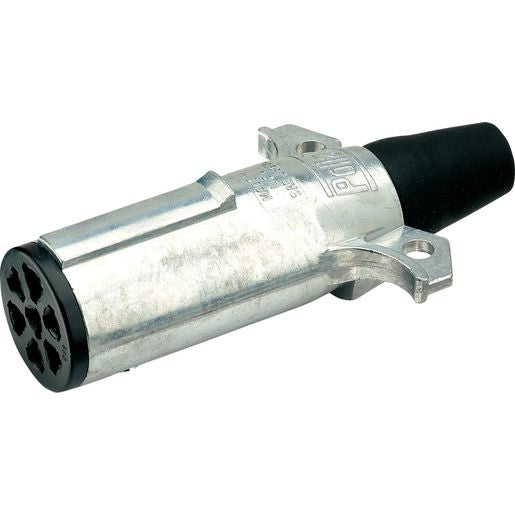

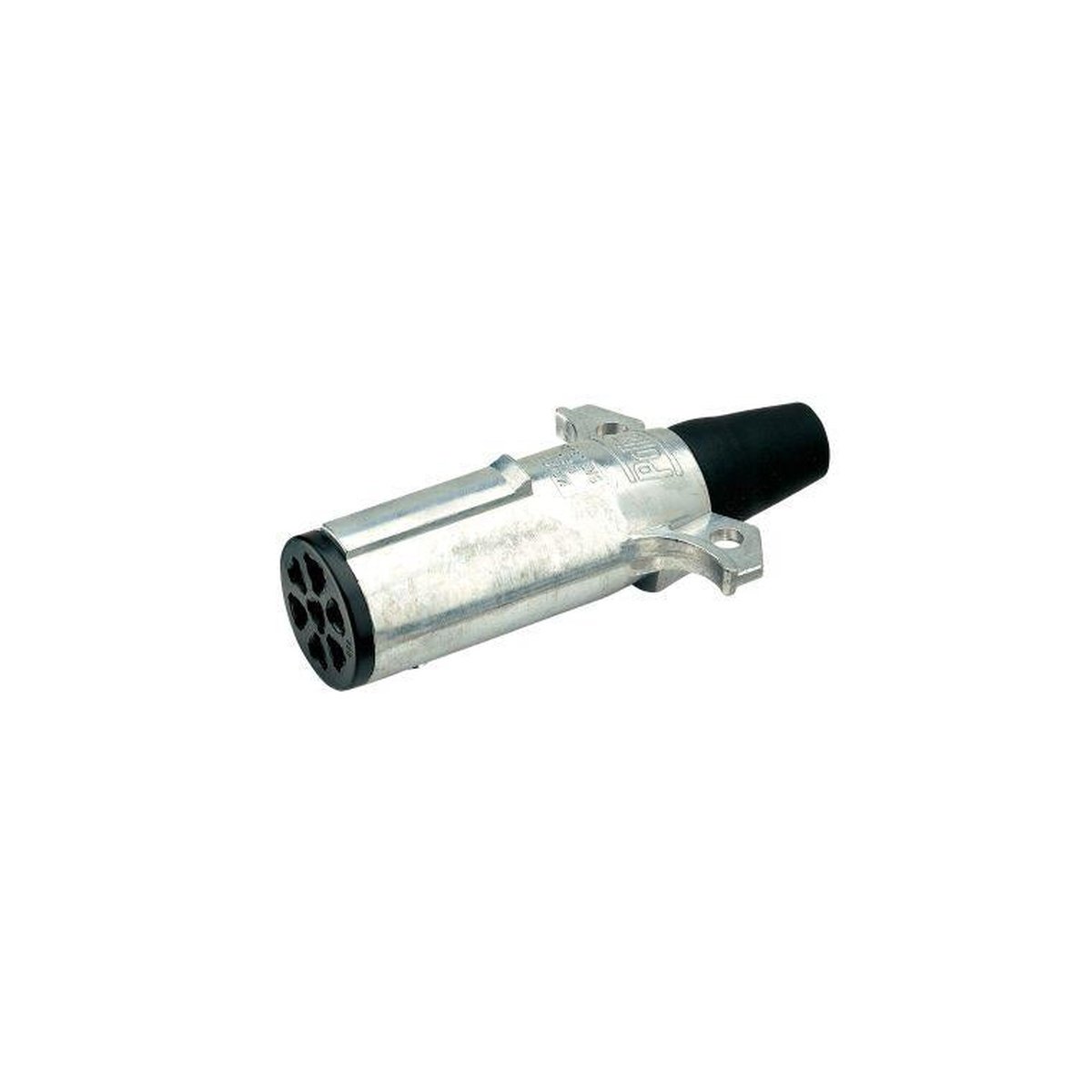

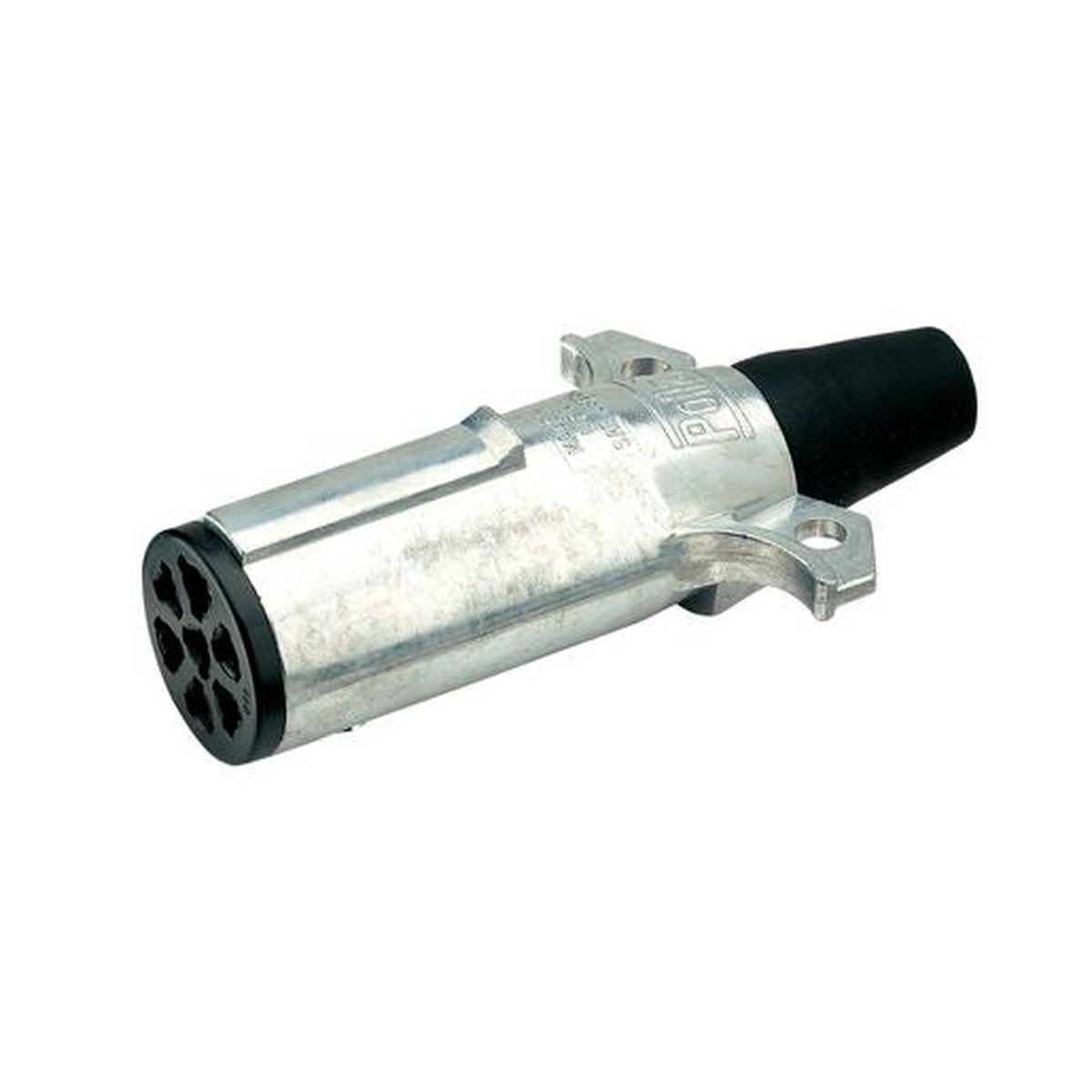

Narva 7-Pin Heavy-Duty Round Metal Trailer Plug 82193
This 7-Pin Heavy-Duty Round Metal Trailer Plug features a rubber boot and boasts a peak rating of 70A. It is compatible with wire sizes from 4.8mm up. Electro-plated solid brass terminals are designed to minimise voltage drop and provide protection against corrosion. An internal 'weatherbeater' seal prevents water ingress while a spring guard offers extra protection for the cable near the plug.
Narva's heavy-duty plugs and sockets are designed and manufactured in the USA in line with current SAEJ560 standards, thereby rendering them compliant with the Australian AS 4735-2003 standard for heavy-duty connectors. This connector imade from corrosion-resistant nylon housing and rated at 40A continuous duty.
SPECIFICATIONS
Input voltage range: Amp rating per pole 40A at 6-28V continuous
ADR: 42/04, 64/00
This 7-Pin Heavy-Duty Round Metal Trailer Plug features a rubber boot and boasts a peak rating of 70A. It is compatible with wire sizes from 4.8mm up. Electro-plated solid brass terminals are designed to minimise voltage drop and provide protection against corrosion. An internal 'weatherbeater' seal prevents water ingress while a spring guard offers extra protection for the cable near the plug.
Narva's heavy-duty plugs and sockets are designed and manufactured in the USA in line with current SAEJ560 standards, thereby rendering them compliant with the Australian AS 4735-2003 standard for heavy-duty connectors. This connector imade from corrosion-resistant nylon housing and rated at 40A continuous duty.
SPECIFICATIONS
Input voltage range: Amp rating per pole 40A at 6-28V continuous
ADR: 42/04, 64/00
