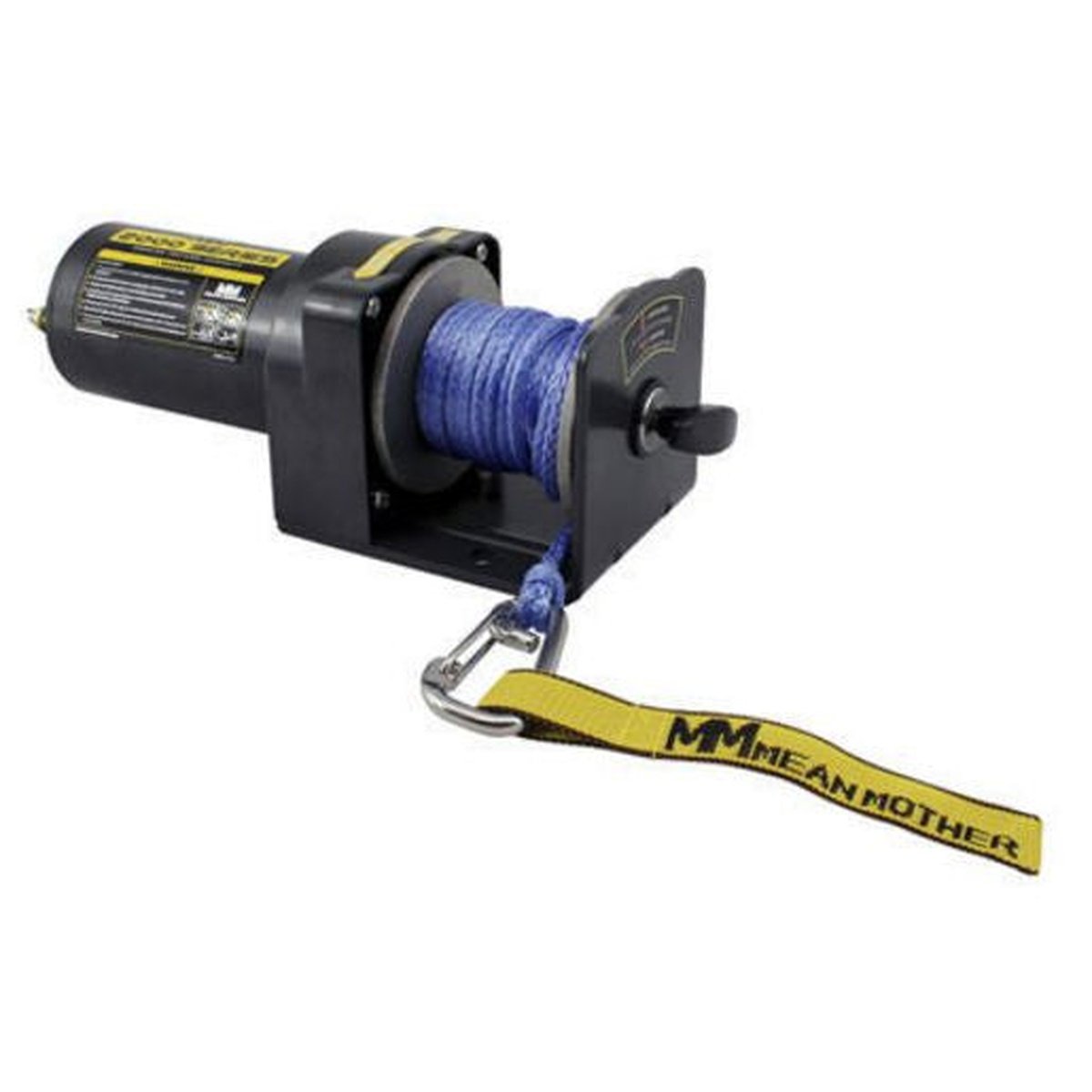

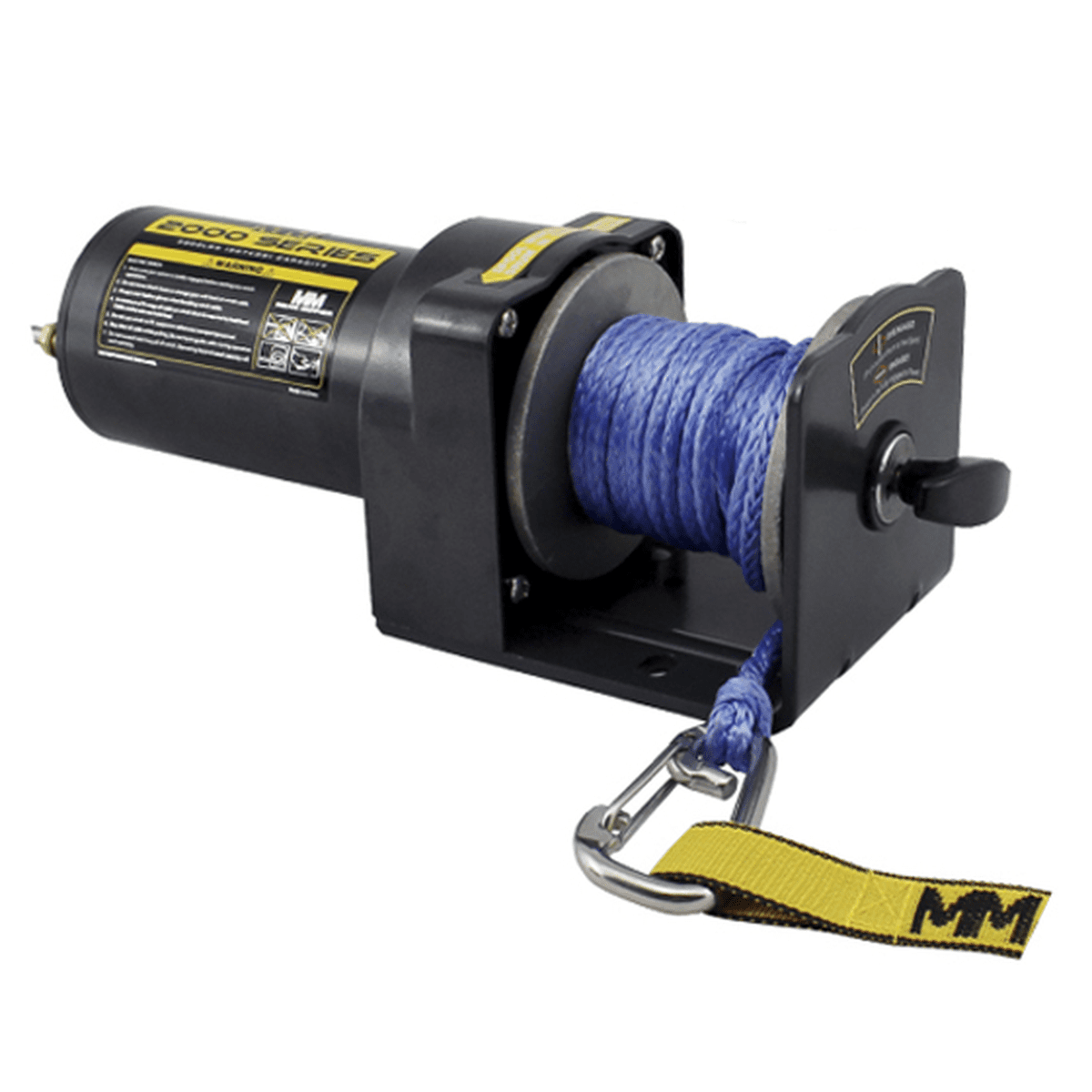

Mean Mother Peak Electric Winch 2000lb Synthetic Rope EW2000S

Mean Mother ATV EW2000S winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.

Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

Features:

• Forward and reverse operation with Free spool function
• Steel bushings
• Steel gears
• Hand Control
• Dyneema is a safer and lighter option than wire cable, and is regarded as the ultimate in performance
• Each synthetic rope is fitted with a stainless steel snap hook for maximum pulling strength

General Information:

• Specifications 2000lb (907kg)
• Voltage 12 Volt
• Gear Ratio 153:1
• Gear Tran 1 Stage Planetary
• Clutch Spline joint clutch
• Motor Type Permanent magnet
• Motor 1.5 Hp, 1 Kw
• Control Hand control, 1.12m lead
• Braking Self locking brake
• Drum Size 32mm x 71mm(1.26" x 2.8")
• Cable Genuine Dyneema SK75 4.5mm x 7.5 Metres (3/16" x 24.6,)
• Clevis Hook 316 Stainless Steel Snap hook
• Overall Dimensions 320mm x 105mm x 110.5mm (12.6" x 4.13" x 4.35")
• Net Weight 6.6kg
• Mounting Bolt Pattern 48mm x 76mm (1.89" x 3")
• Battery Power Cables 2 x 1120mm x 6mm
• Motor Power Cables 2 x 1120mm x 6mm
• Finish Powder Coating

Performance of 1st Layer:

• Line Pull Line Speed Motor Amp Draw Voltage
• 0 lbs 0 kgs 13 Fpm 4.0 Mpm 19 12 Volt
• 1000 lbs 454 kgs 10 Fpm 3.1 Mpm 70 12 Volt
• 1500 lbs 680 kgs 8.2 Fpm 2.5 Mpm 90 12 Volt
• 2000 lbs 907 kgs 6.5 Fpm 2.0 Mpm 110 12 Volt

Line Pull & Cable Capacity by Layer:

• Cable Layer Rated Line Pull Cable Capacity
• 1 2000 lbs 907 kgs 6 Feet 1.8 Metres
• 2 1636 lbs 742 kgs 13Feet 4.0 Metres
• 3 1385 lbs 628 kgs 22 Feet 6.7 Metres
• 4 1200 lbs 544 kgs 33 Feet 10.0 Metres
• 5 1059 lbs 480 kgs 44 Feet 13.4 Metres
• 6 947 lbs 430 kgs 50 Feet 15.2 Metres

What's Included:

• Winch
• Hand control with power leads
• 4.5mm x 7.5m Genuine Dyneema SK75
• 316 Stainless Steel Snap hook
• Hand Saver Hook Strap
• Detailed Instruction Manual
• Warranty registration Card
• Winch Mounting Hardware (Bolts, washers and Nuts)
• 12 Month Warranty
