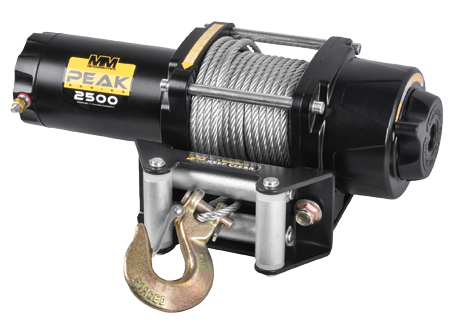

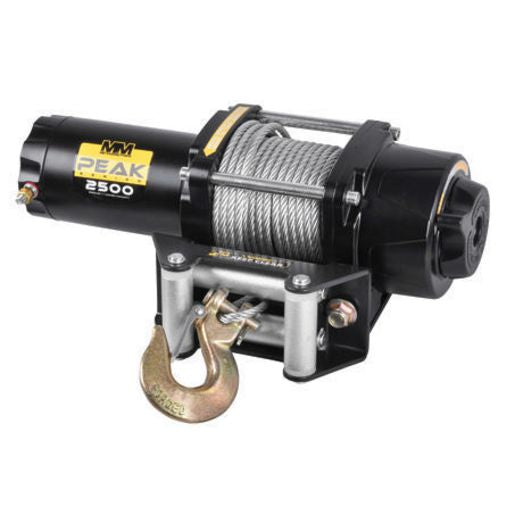

Mean Mother 4x4 Peak Electric Winch 2500lb EW2500

Mean Mother ATV winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.

The 2500lb ATV Winch is supplied with a universal mounting plate for easy installation. It has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

Features:

• Forward and reverse operation with Free spool function
• Two Stage Planetary quality components Sintered Steel Bushes & Hardened Steel Gears
• Waterproof contactor (solenoid) system. Permanently mounts to ATV.
• Waterproof quality plug with protective cap.
• Mountable handle bar Forward and reverse toggle switch.
• Thimble in cable eyelet provides reinforcement and maximum strength.
• 4.76mm x 12m (2500lb) 7-19 Construction galvanised aircraft cable.

General Information:

• Specifications 2500lb (1135kg)
• Voltage 12 Volt
• Gear Ratio 242:1
• Gear Tran 2 Stage Planetary
• Clutch Turn 90 by handle
• Motor Type Permanent magnet
• Motor 3 Hp, 2.2 Kw
• Control Handle bar mountable switch, 2.4m lead
• Braking Self stocking brake
• Drum Size 50mm x 80mm(2.5" x 3.15")
• Cable 4.76mm x 12m (3/16" x 39,) 7-19 Construction galvanised aircraft cable.
• Clevis Hook 1/4"
• Overall Dimensions 333.5mm x 116mm x 114mm (13.13" x 4.57" x 4.5")
• Net Weight 11.4kg (25lb)
• Mounting Bolt Pattern 124mm x 76mm (4.88" x 3")
• Battery Power Cables 2 x 2350mm x 10mm
• Motor Power Cables 1 x 600mm x 10mm & 1 x 450mm x 10mm
• Recommended Battery Minimum 650CCA
• Finish Powder Coating

Performance of 1st Layer:

• Line Pull Line Speed Motor Amp Draw Voltage
• 0 lbs 0 kgs 19.7 Fpm 6.0 Mpm 31 12 Volt
• 1000 lbs 454 kgs 18.4 Fpm 5.6 Mpm 105 12 Volt
• 2000 lbs 907 kgs 14.8 Fpm 4.5 Mpm 145 12 Volt
• 3500 lbs 1589kgs 13.5 Fpm 4.1 Mpm 195 12 Volt

Line Pull & Cable Capacity by Layer:

• Cable Layer Rated Line Pull Cable Capacity
• 1 2500 lbs 1135 kgs 9.2 Feet 2.8 Metres
• 2 2130 lbs 967 kgs 20.3 Feet 6.2 Metres
• 3 1855 lbs 842 kgs 33.1 Feet 10.1 Metres
• 4 1643 lbs 746 kgs 39.40 Feet 12.00 Metres

What's Included:

• Winch
• Winch mounting plate
• Solenoid (contactor)
• Handle bar switch with mounting bracket
• Power cable kit
• 4.76mm x 12m, 7-19 Construction galvanised aircraft cable.
• Roller Fairlead
• 1/4" Clevis Hook
• Hand Saver
• Hook Strap
• Detailed Instruction Manual
• Warranty registration Card
• Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)
