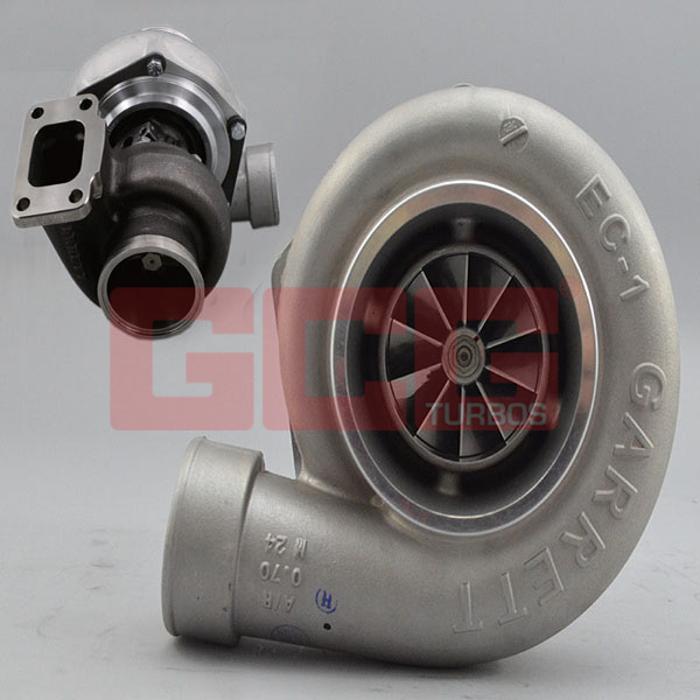

Garrett Turbo Charger GTW3684R EWG T3 Single Entry / V-Band G841691-5002T3SE

• Bearing Type: Ceramic Dual Ball Bearing
• Cooling System: Oil &, Water Cooled
• Turbine Housing: Externally Wastegated, available in 0.63a/r, 0.82a/r and 1.06a/r
• Base Flange: T3 Single Entry
• Exhaust Outlet Flange: V-Band (3.0"")
• Horsepower: 425-750hp
• Displacement: 2.0L - 5.3L

Product Information:

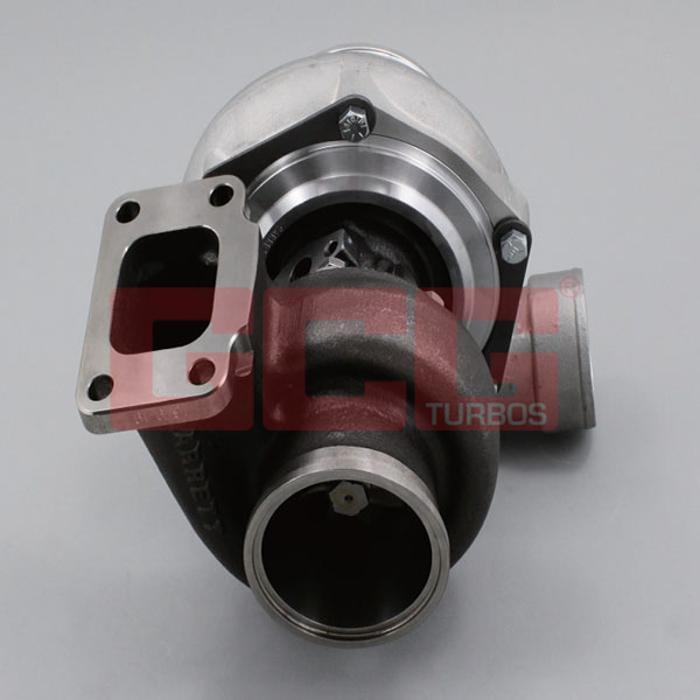

This custom built GTW3684R Turbocharger comes with a Garrett T3 Single Entry Inlet, V-Band Outlet Turbine Housing, with ratio options of 0.63a/r, 0.82a/r and 1.06a/r. Utilizing a T3 single entry mounting flange allows this turbocharger to suit common off the shelf exhaust manifolds, and also allows direct interchanges with previous turbocharger versions (GT3082R / GT3582R / GTX3582R GEN I).

The Turbine Outlet V-Band clamp is included, but the turbine outlet flanges are sold separately.

Garrett GTW Features:

• Ported Shroud design for surge resistance
• Forged Fully-Machined Billet Compressor Wheel
• Lightweight Aluminium Backplate
• Inconel Super-Alloy Turbine Wheel
