Garmin Catalyst 2 Racetrack Driving Performance Optimiser

FIND YOUR LINE TO FASTER TIMES

Get on track for your best achievable time with this compact all-in-one racetrack driving performance optimiser that provides real-time audio coaching1. After every session, review your performance data2 and see opportunities to save time.

• COMPOSITE VIDEO OF YOUR BEST POSSIBLE TIME WITH TRUE OPTIMAL LAP TECHNOLOGY
• REAL-TIME COACHING WITH ON-TRACK AUDIO CUES
• INTERPRETS YOUR DATA AND FINDS TOP THREE OPPORTUNITIES FOR IMPROVEMENT
• REVIEW PERFORMANCE DATA FROM THE ROAD COURSE OR DRAG STRIP AND COMPARE WITH FRIENDS
• LEADERBOARDS2 BASED ON LAP OR DRAG TIMES; OPTION TO WATCH VIDEOS WITH A VAULT PLAN
• EXPORT HD VIDEOS WITH DATA OVERLAYS

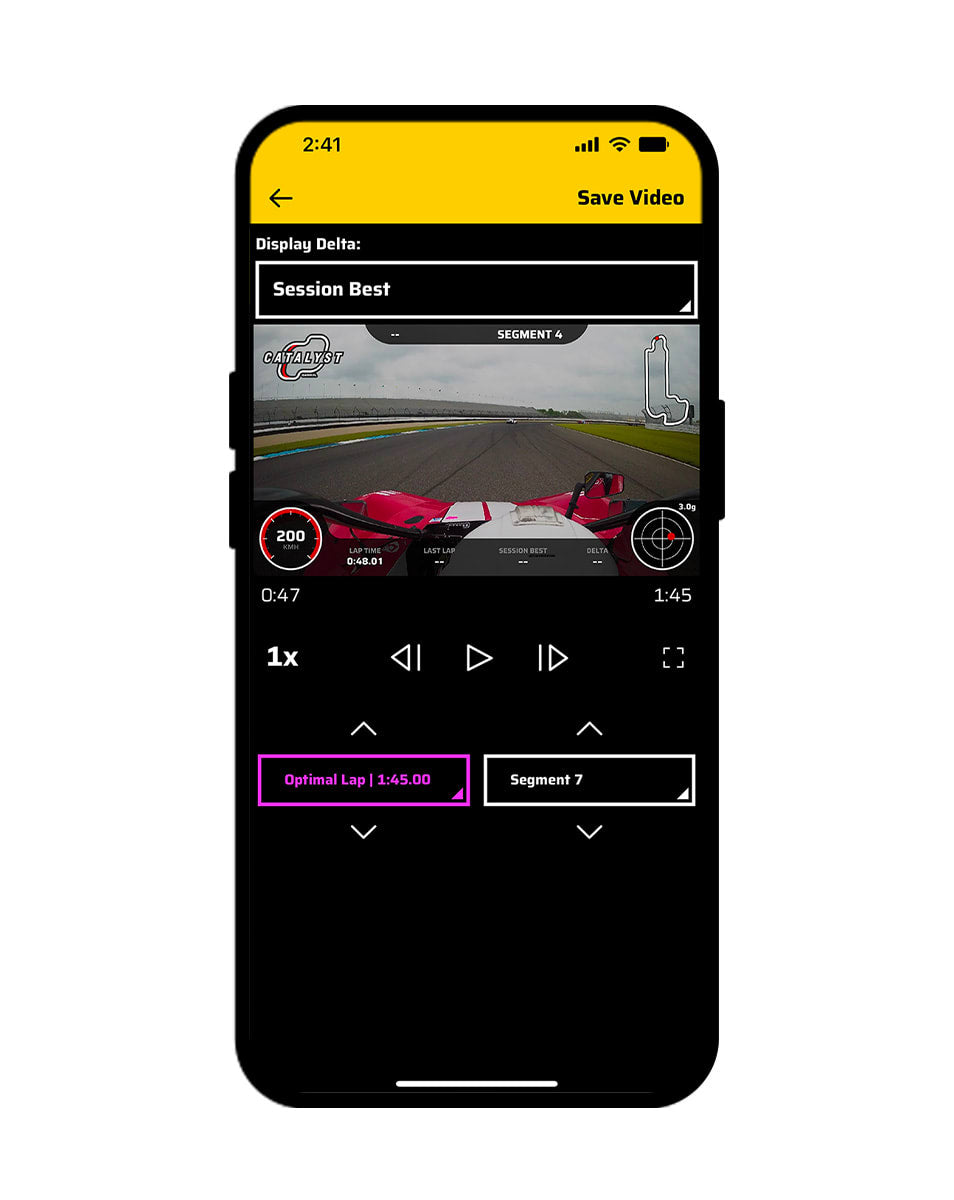

TRUE OPTIMAL LAP

Our patented True Optimal Lap technology splices together your best achievable time into a single video based on lines you drove and can repeat.

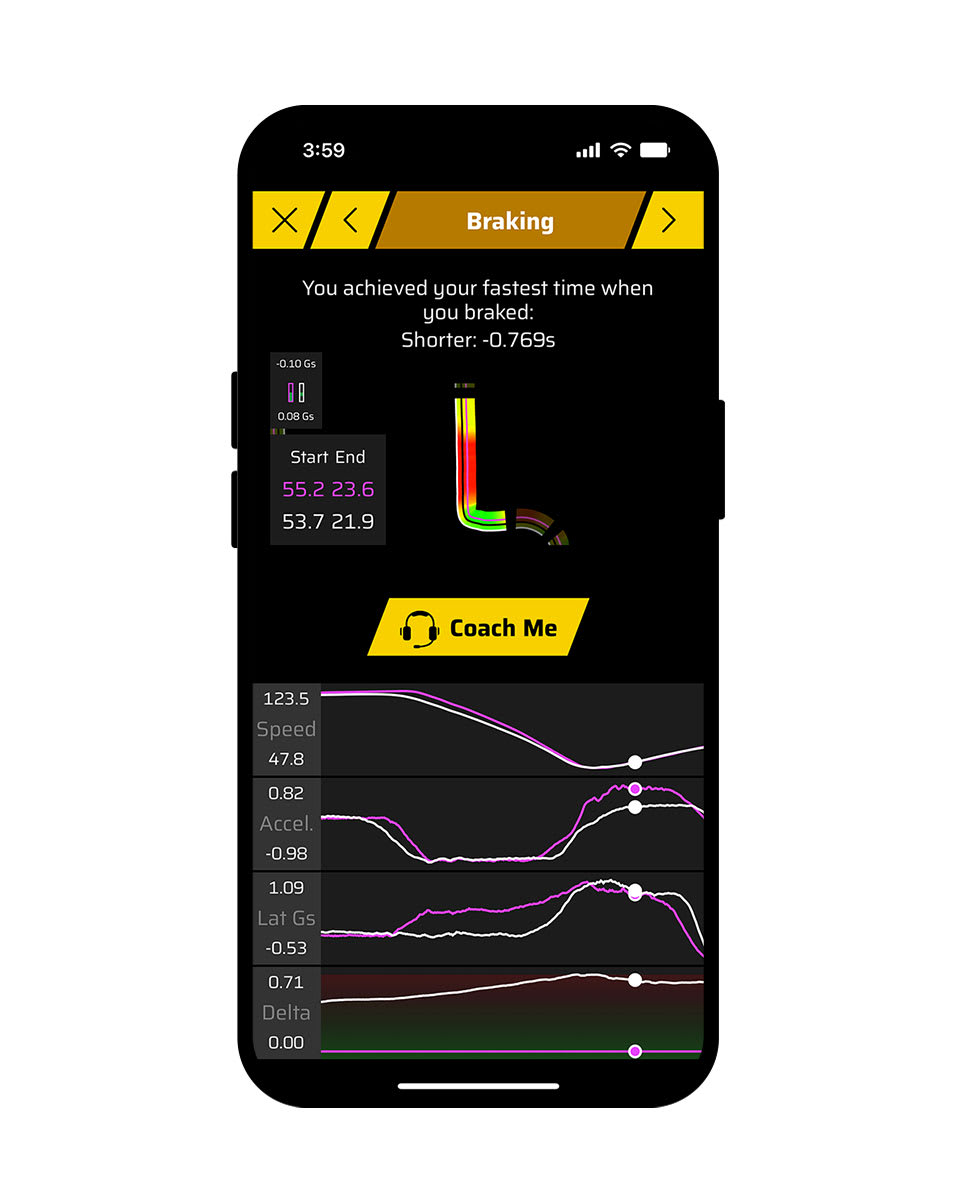

ON-TRACK COACHING

Real-time coaching adapts to your performance with audible cues on speed, braking and more delivered through your Bluetooth technology-enabled earbuds or car stereo.

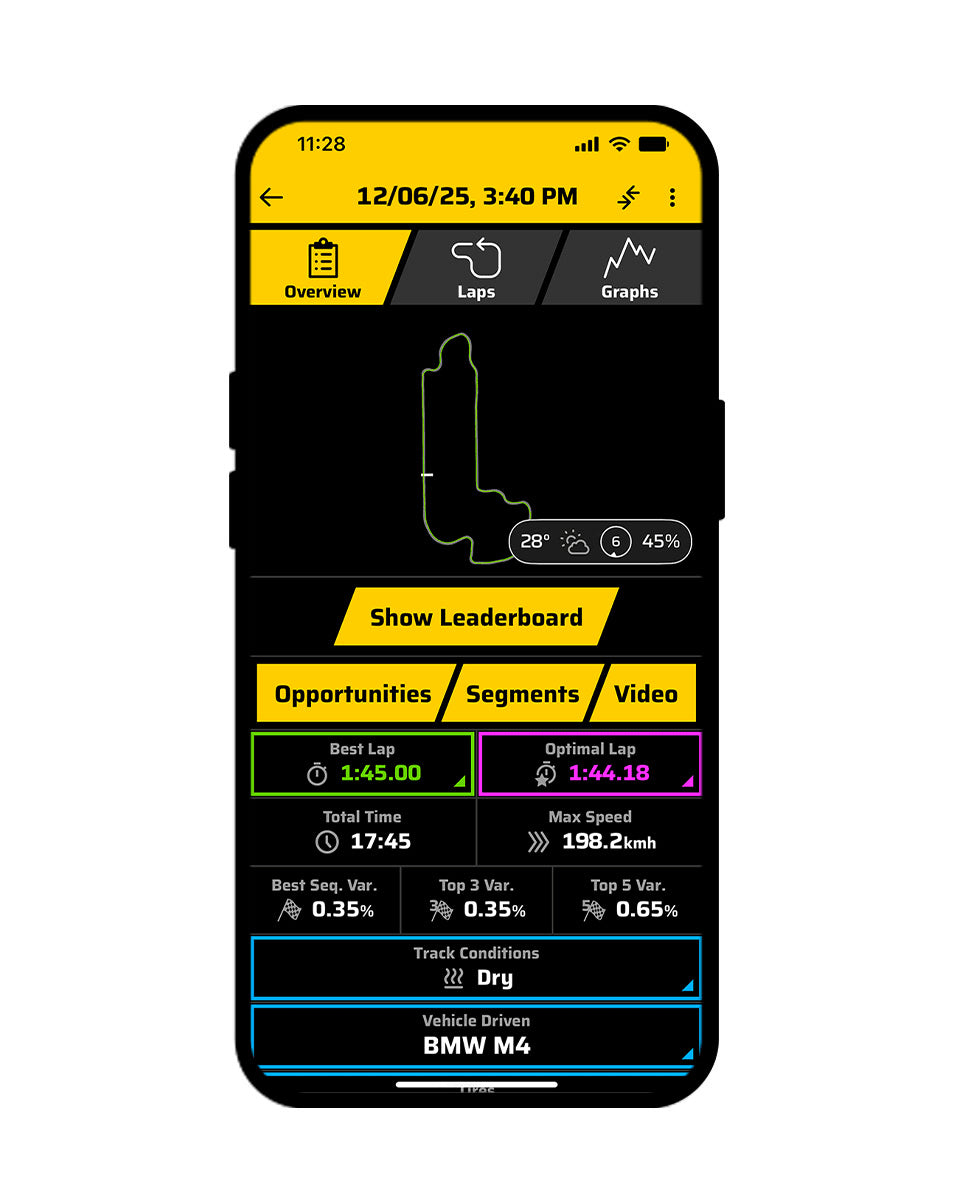

AUTOMATIC INTERPRETATION

The Garmin Catalyst 2 driving performance optimiser interprets your performance data, so you can spend less time analysing and more time driving. After every session, the device identifies your top three opportunities for improvement.

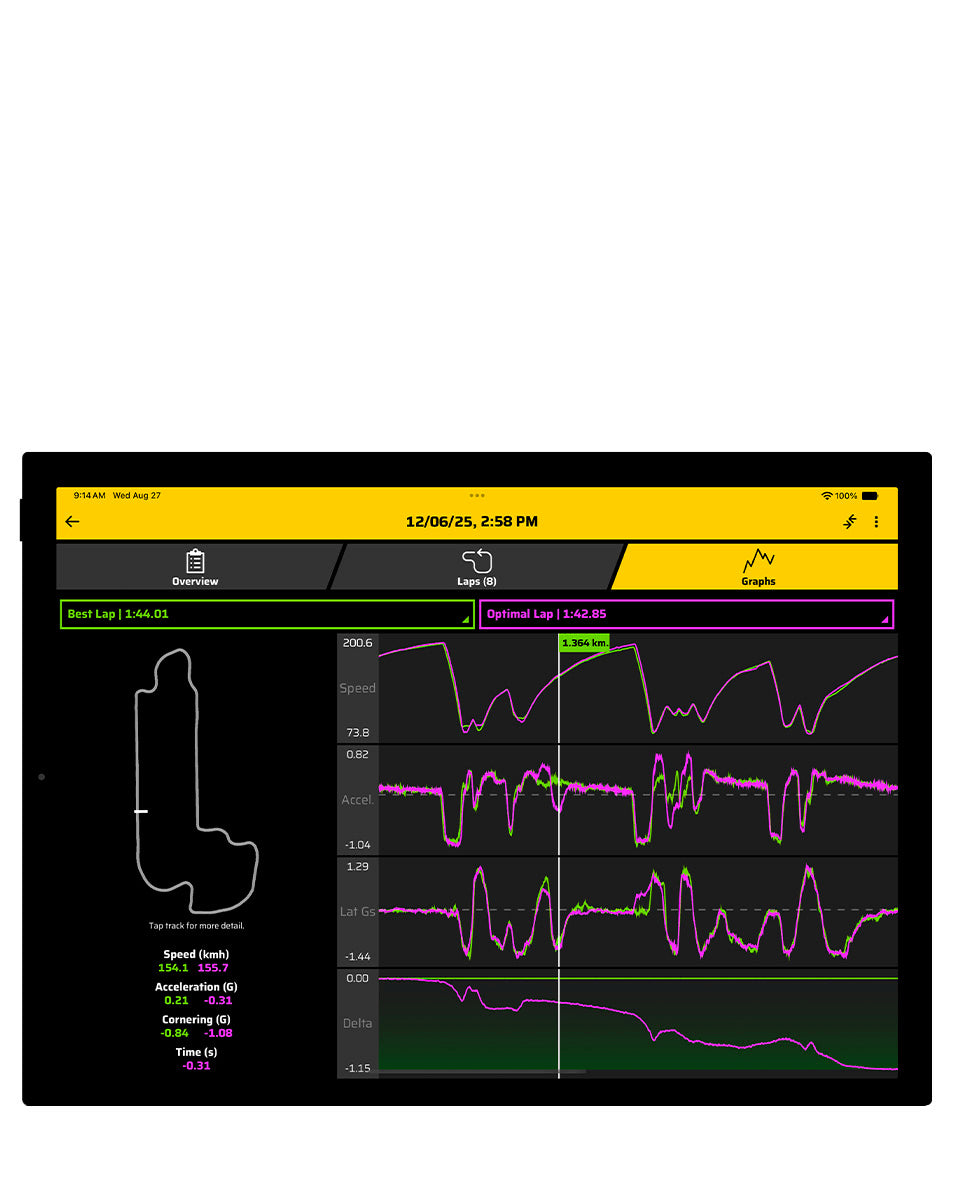

DETAILED PERFORMANCE DATA

Use the Garmin Catalyst app on your tablet or smartphone to view detailed performance data, animated graphs and friend comparisons.

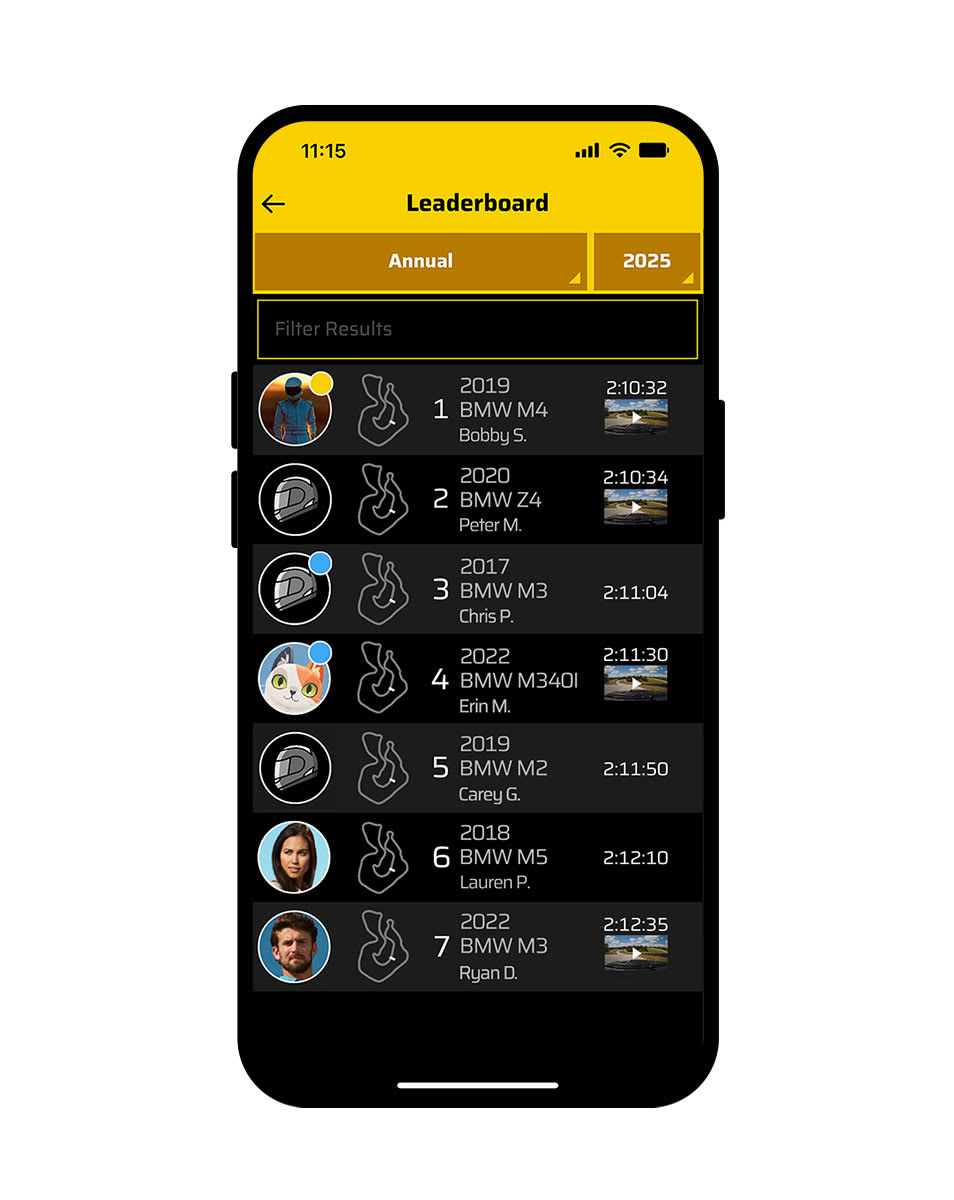

LEADERBOARDS

See how you stack up against other drivers and their times on the leaderboards in the Garmin Catalyst app. You can also watch associated leaderboard videos with purchase of a Vault plan.

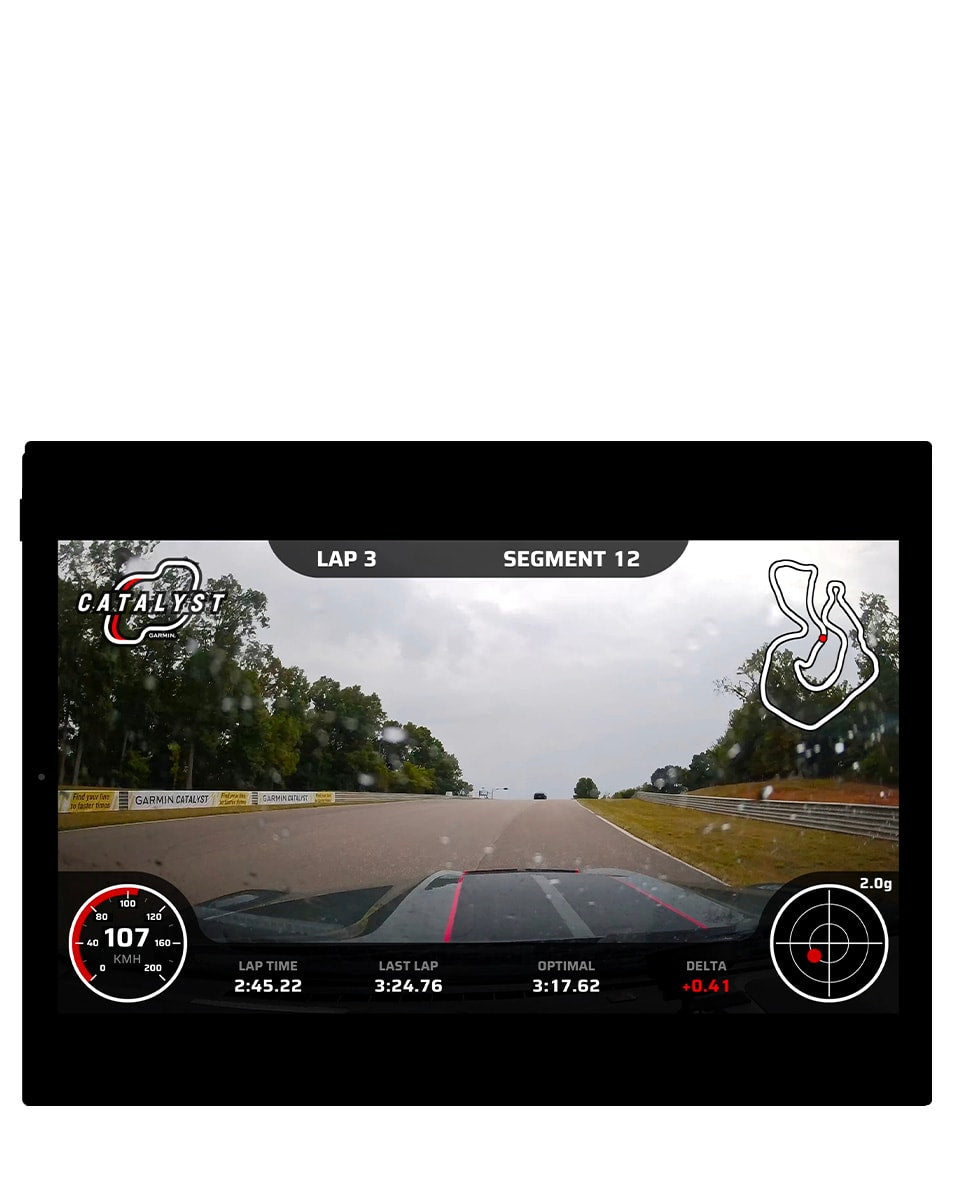

VIDEO WITH DATA OVERLAYS

View graphic overlays on your high-definition videos, including track map, speed, delta time, G-G traction circle diagram and more. You can also share your videos directly to social media (requires internet connection; WiFi connectivity is recommended).

SIMPLE DESIGN

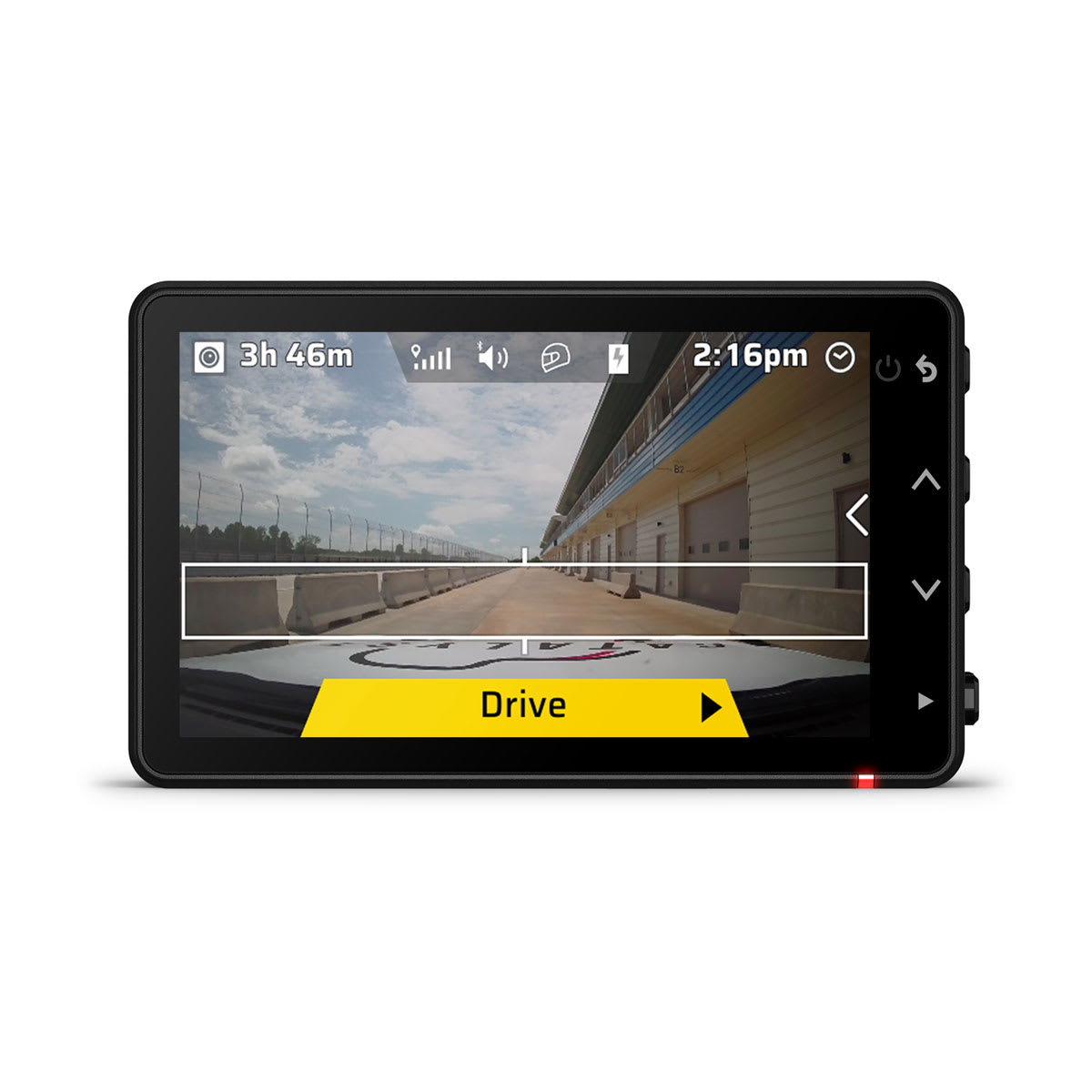

Easily secure Garmin Catalyst 2 to your windshield in seconds. The small and unobtrusive all-in-one design features a 3In touchscreen display to easily align the camera and adjust settings.

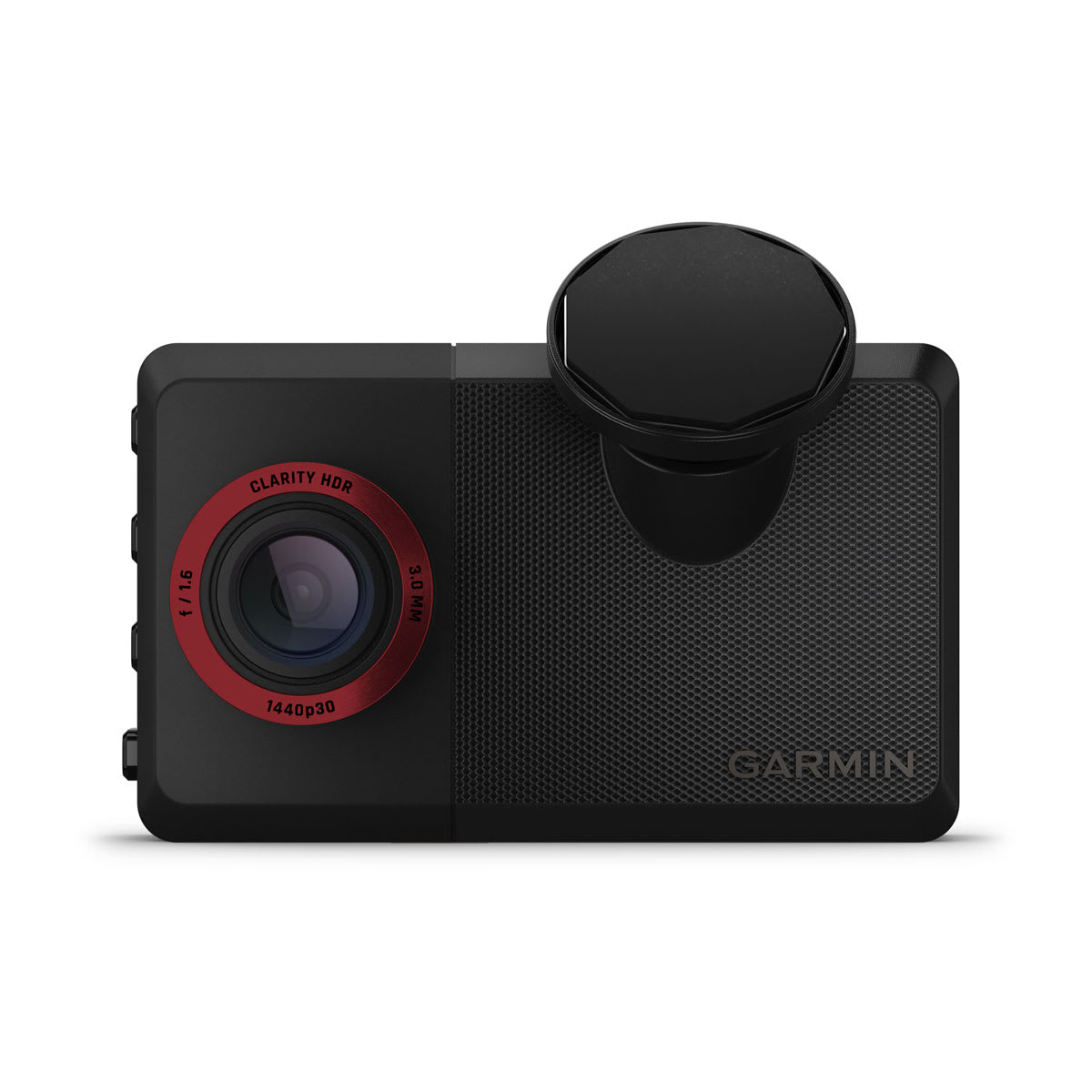

HD CAMERA

The built-in 1440P HD camera records sharp video of your track sessions on the pre-installed memory card. Garmin Clarity HDR optics capture crisp video detail in all weather conditions.

POLARISED LENS COVER

The included lens cover can be easily removed or added to reduce any windshield glare.

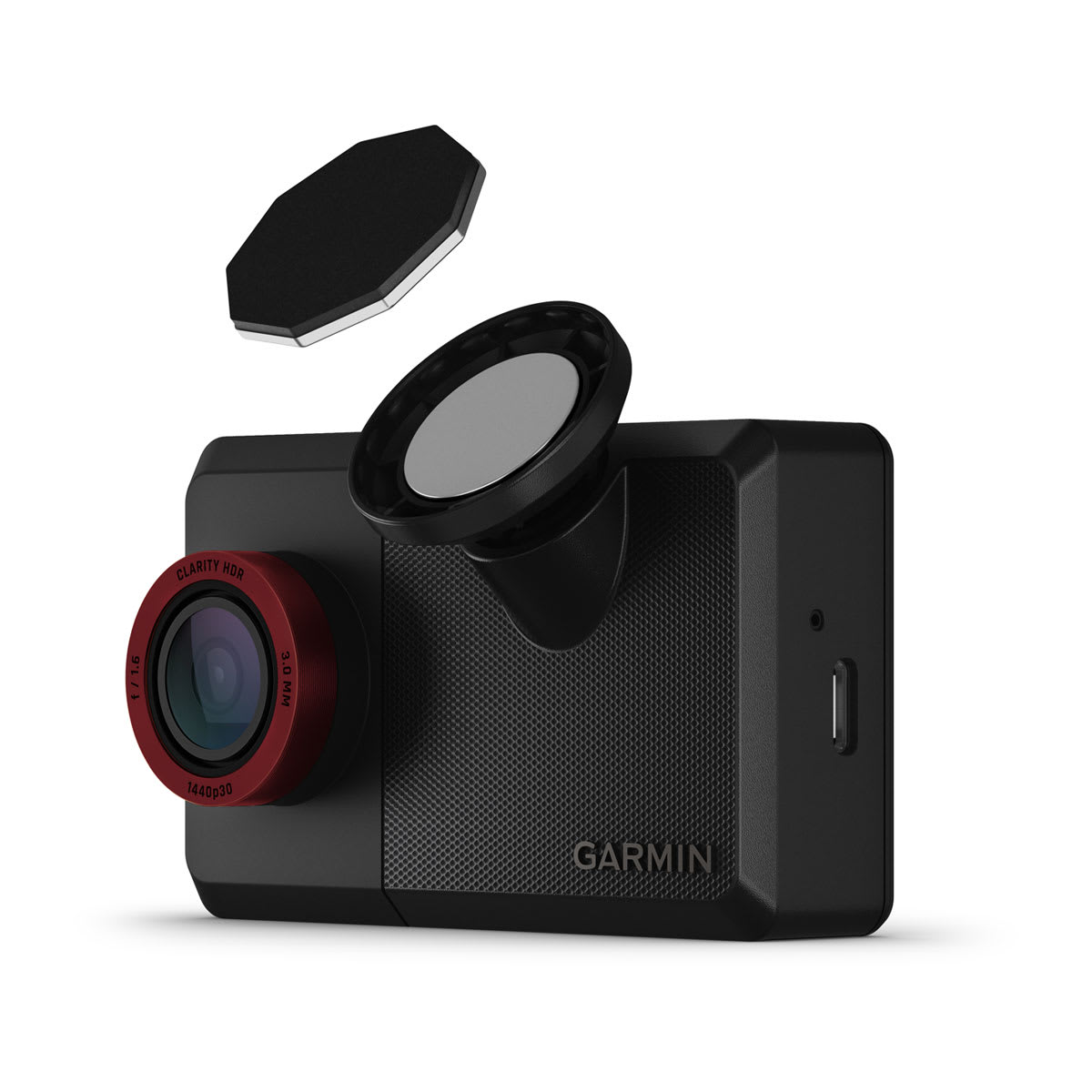

MOUNT-COMPATIBLE

This device includes an adapter for an action cam mount and is also compatible with alternate mount accessories.

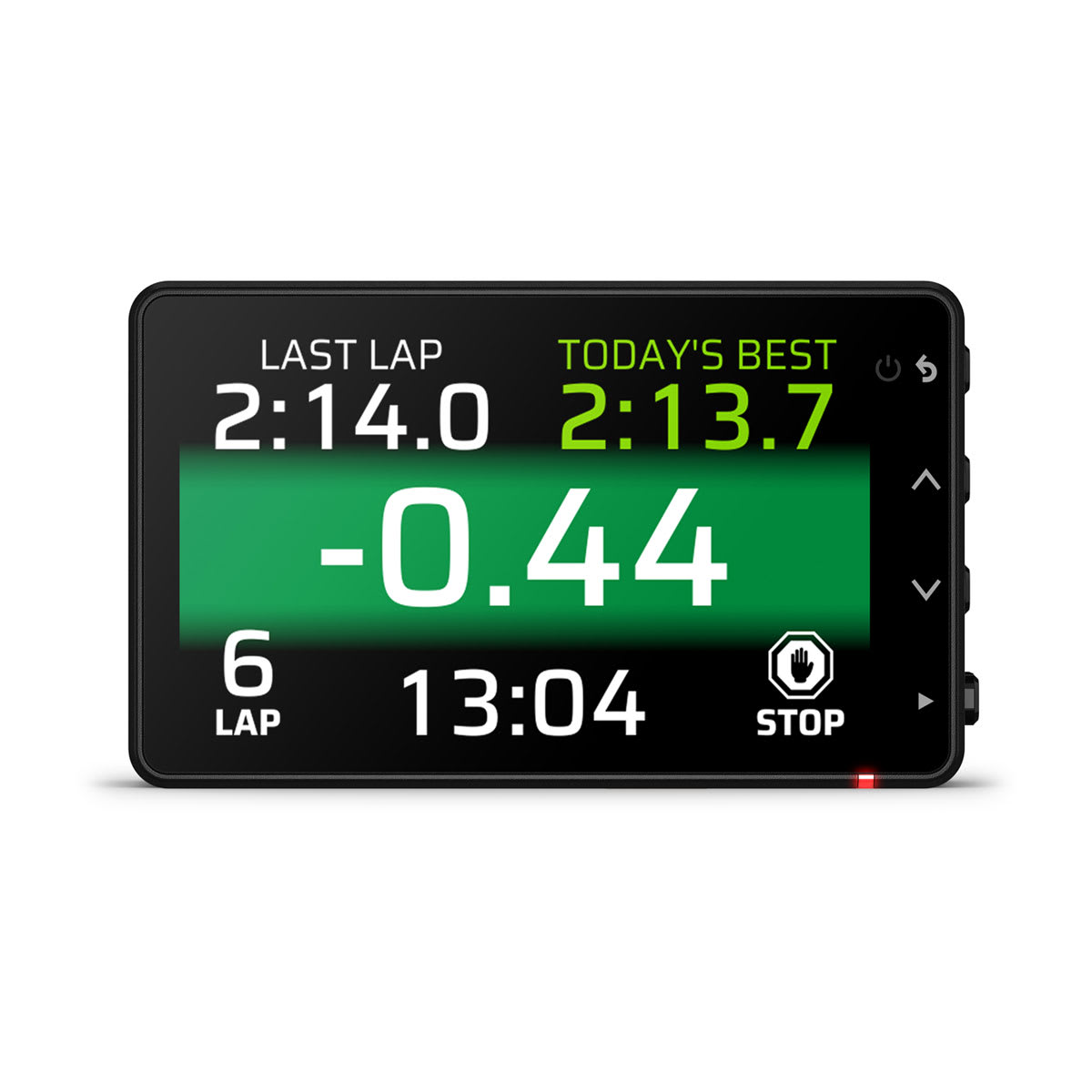

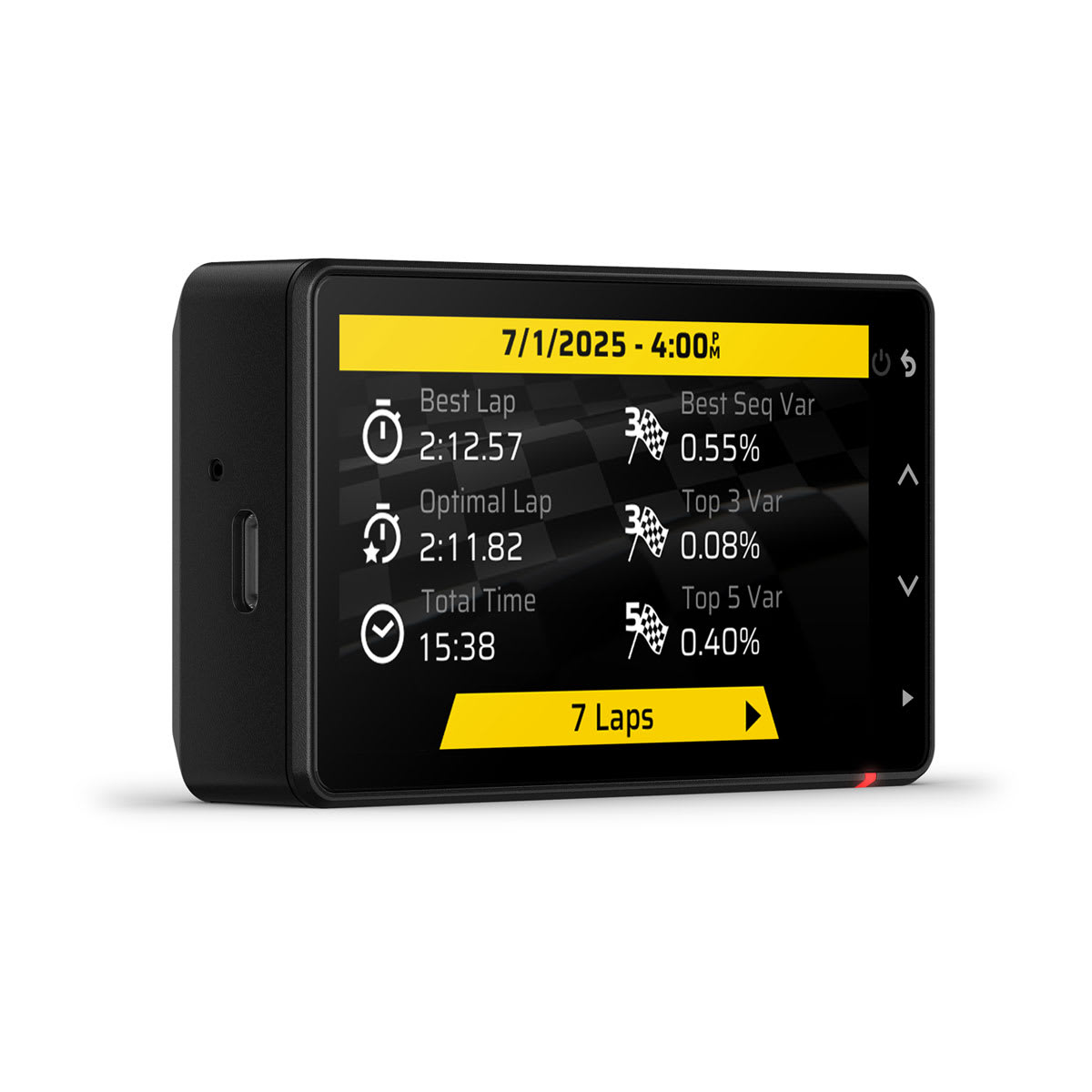

REAL-TIME LAP DATA

See your last lap time, best lap time, adaptive delta time on a red (behind) or green (ahead) gradient at a glance, alongside number of laps and total session time.

TRACK DATABASE

The device is preloaded with a track database featuring road courses from around the world. You can also create custom tracks and configurations.

REFINED TRUE TRACK POSITIONING TECHNOLOGY

This unique technology uses built-in accelerometers, gyroscopes, image processing and 25 Hz multi-GNSS positioning to generate your racing line on the track and more.

DRAG RACING TIMER

Record your drag racing time and distance milestones, such as your 060 mph time and 1/8-mile and 1/4-mile times.

ADAPTIVE COACHING

This device compares your sessions and gives immediate, adaptive suggestions to show areas for improvement.

VAULT VIDEOS

With a Vault plan, your optimal and best lap videos from every session are automatically saved and accessible via the Garmin Catalyst app3.

GROUP SESSIONS

List your sessions in the order that makes the most sense to you including by track or date via the Garmin Catalyst app.

SESSION REVIEW

Compare your optimal lap to your intelligent average lap data. Plus, view your braking, cornering, speed, apex and delta time.

Specifications:

• Dimension: 8.29 x 5.03 x 2.15 cm (3.34" W x 1.98" H x 1.23" D)
• Weight: 115 g (4 oz)
• Display Type: 3 colour TFT, with on-cell capacitive touch panel
• Display Size: 6.6 x 3.8 cm (2.61" W x 1.49" H); 7.6 cm (3")
• Display Resolution: 640 x 360 pixels
• Magnetic Mount: Yes
• Mount type: 11 mm ball
• Battery type: Rechargeable lithium-ion
• Battery life: Up to 45 minutes
• Charging time: 2.5 hours
• Data cards: Yes (32 GB microSD Class 10 card included: accepts up to 512 GB microSD)
• GPS: Yes
• Galileo: Yes
• BeiDou: Yes
• 25 Hz multi-GNSS positioning: Yes
• Camera Resolution: 1440p
• Field of View: 125 degrees (diagonal)
• Frame Rate: Up to 30 FPS
• Clarity HDR: Yes
• Mobile app to review videos: Yes (Garmin Catalyst app)
• Vault compatible (secure online video storage): Yes
• Wi-Fi map and software updates: Yes (software and track database updates)
• Smartphone platform compatibility: Garmin Catalyst app.
• Works with Garmin app on a compatible smartphone: Yes
• Requires Bluetooth-enabled smartphone: Yes
• Works with vehicle stereo: Yes
• True Track Positioning (your racing line): Yes
• Real-time audio cues/audio coaching: Yes
• True Optimal Lap with video: Yes
• Built-in accelerometers: Yes
• Bluetooth connectivity: Yes (works with Bluetooth-enabled helmet/headset (sold separately))
• Displays best lap time, adaptive delta time, number of laps and total session time: Yes
• Preloaded global track database: Yes
• Session comparisons: Yes
• Driving performance scores: Yes
• Automatically identifies areas of biggest time gain: Yes
• Supports multiple users: Yes
• Supports multiple cars: Yes
• Stores history of all on-track performance: Yes
• Segment analysis (racing line, speed and acceleration/deceleration): Yes
• Leaderboards: Yes
• Leaderboard videos (requires Vault subscription): Yes
• Friend comparisons: Yes
• Friend videos (requires Vault subscription): Yes
• Videos with overlays: Yes
• Video with audio coaching: Yes
• Exportable videos: Yes
• Power Source: USB-C
• Security updates until at least (YYYY-MM-DD): 2028-01-30
