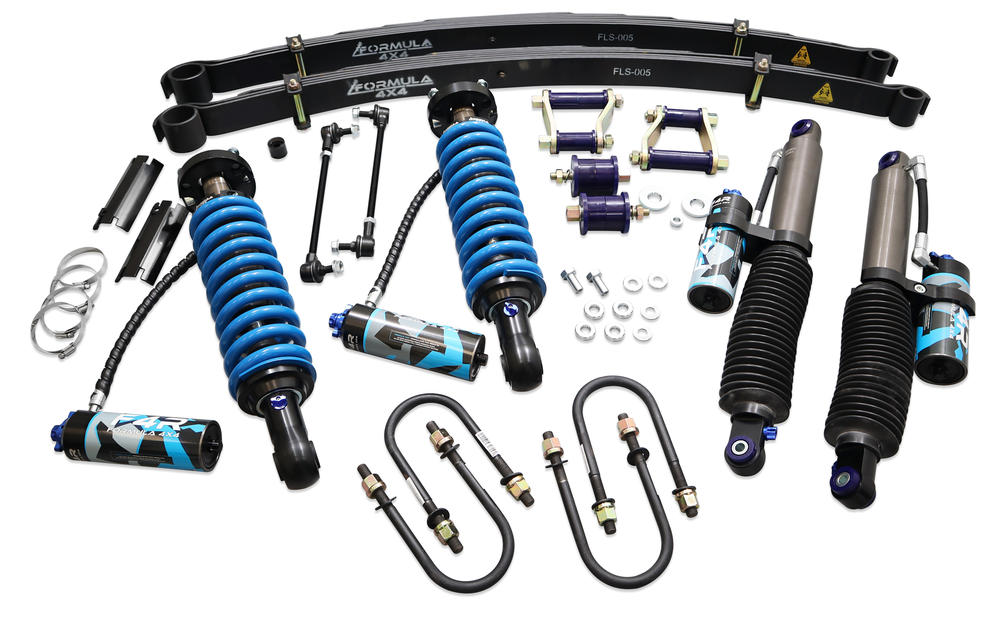

Formula 4x4 2 Inch to 3 Inch Adjustable Formula 4x4 Lift Kit to suit Ford Ranger PX III 2018-2022

F4R Remote Reservoir Lift Kit, the best performance and the most comfortable ride onroad and offroad, bar none.

It is highly recommended to use an aftermarket upper control arm (offset or adjustable) on a 2" lift. However, if adjusting this kit to a 3" lift, then a fixed offset or adjustable aftermarket upper control arm with camber/caster adjustment is required to avoid the arms hitting the strut tower at full droop. For example, TRC6560 from SuperPro can be used.

High Level Product Details

• Pre-set at 2.5 Inch 63mm front height
• Preload Adjustable Spring to adjust Vehicle Height
• 3 way Adjustable Remote Reservoir Front Damper
• 2 way Adjustable Remote Reservoir Rear Damper
• 22 Compression & 23 Rebound Settings Front
• 25 Compression & 18 Rebound Settings Rear
• Heavy Duty 22mm Damper Shaft
• 58mm Custom Design Piston for better flow

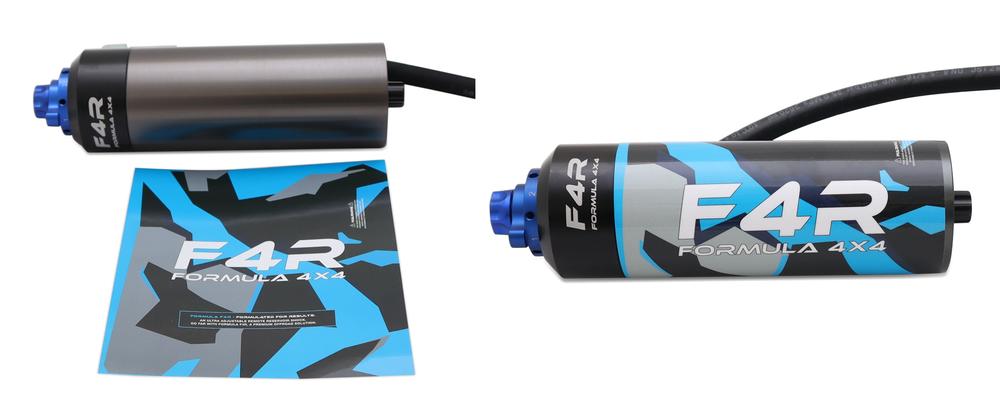

• Mono Shock Design with Remote Reservoir
• Polyelast Front Shock Bottom Mount & Pillow Ball Top Mount
• SuperPro Top & Bottom Shock Bushes Rear (Lifetime warranty)
• Custom Brackets for Front Reservoir Mount
• Unlimited Kilometer warranty. Just activate your warranty online.

Designed specifically for the Ford Ranger PX 3, and benchmarked against the industries best. This Formula F4R Remote Reservoir lift kit, offer the best performance and the most comfortable ride onroad and offroad, bar none.

• An ultra-adjustable remote reservoir shock, valved to maximise comfort & performance in all types of terrain.
• Improved Cavitation resistance, giving greater driving consistency on the roughest roads and toughest tracks.
• Built tough with a 7075 aviation aluminium body, massive bore, custom piston & light 6061-T6 aluminium supports.
• Designed to provide sharp handling on and off road, whilst giving an extremely comfortable ride.
• Precisely calibrated, with vehicle specific damping and a large custom piston to control performance + comfort.
• Increased oil volume and thermal capacity, providing consistent and dependable performance.
• The F4R damper adjustment range is designed to accommodate a variety of springs, loads & heights.
• Fully Customisable & Rebuildable

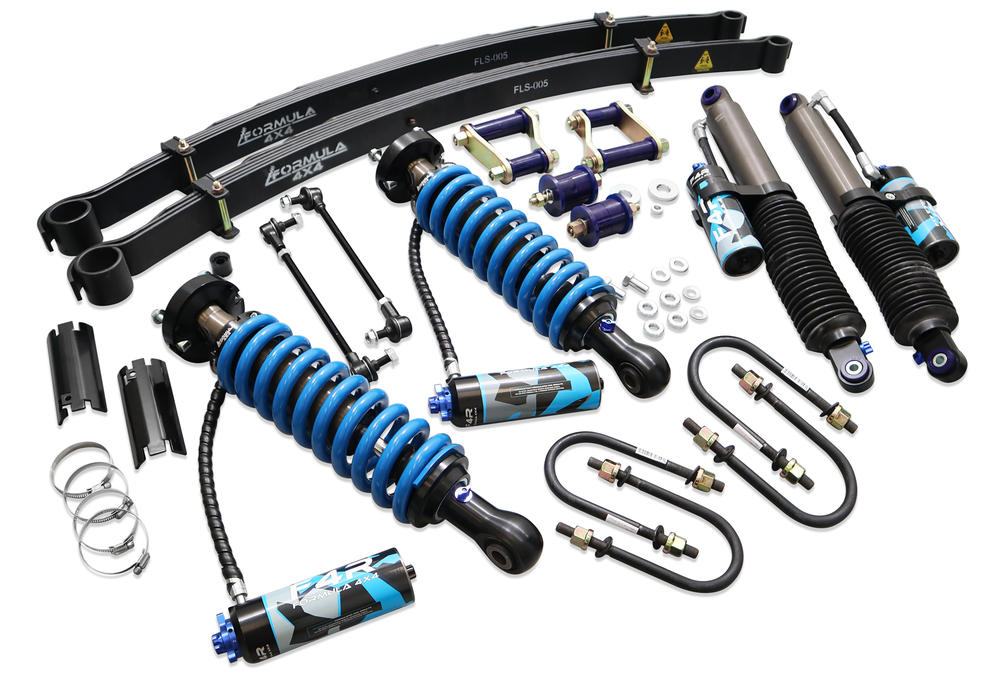

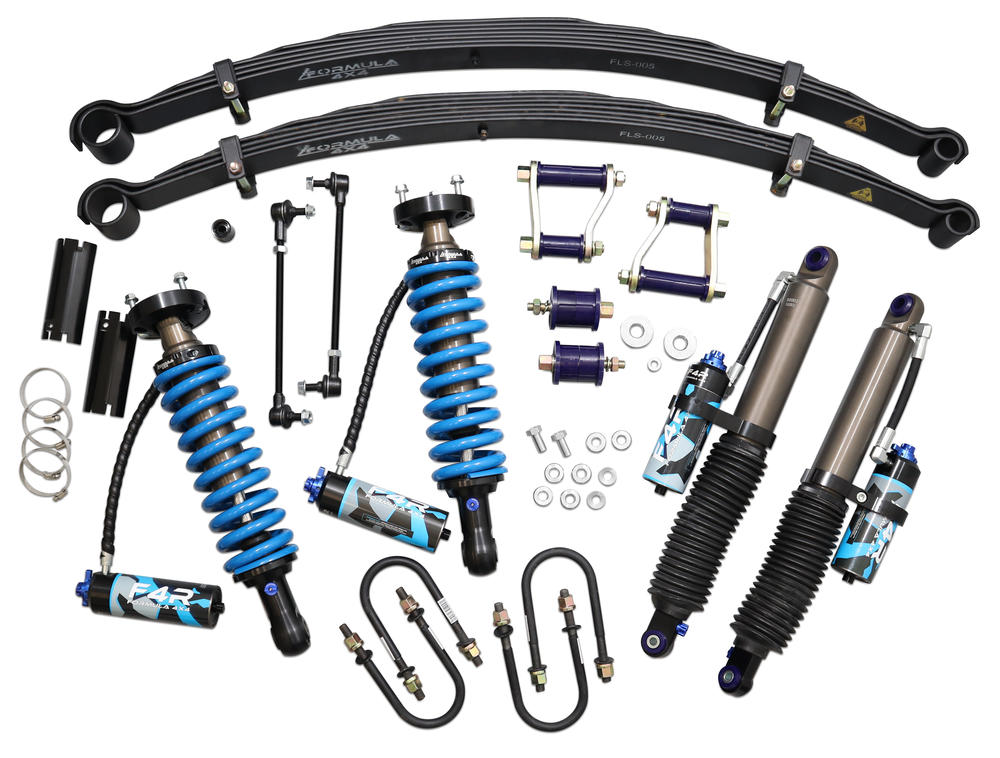

The Formula F4R lift kit for PX3 is a 3-way adjustable remote reservoir coil-over system in the front and a 2-way adjustable remote reservoir shock in the rear, specifically designed to suit your vehicle. The damper uses Fulcrums own high flow digressive piston with carefully chosen shim stacks to create the best damping characteristics for each vehicle.

The front damper is 3-way adjustable, spring pre-load, compression bypass and rebound bypass. The rear damper is 2-way adjustable, compression bypass and rebound bypass.

The adjustment clickers allow the user to carefully control how much oil is allowed to bypass the shim stacks in each direction. Opening the clickers allows more oil to bypass, reducing the damping effort in either compression or rebound. This allows tuning for different load scenarios and road conditions.

This Formula F4R Adjustable Remote Reservoir Kit is preset to:

• Front: 63mm or 2.5" Lift with Bull Bar & Winch (adjustment up to 75mm or 3" or to be lowered if required)
• Rear: 63mm or 2.5"

Note: 3 inches of lift is not road legal unless mod plated. If you set your ride height to 3 inches, then it should only be for offroad use.
