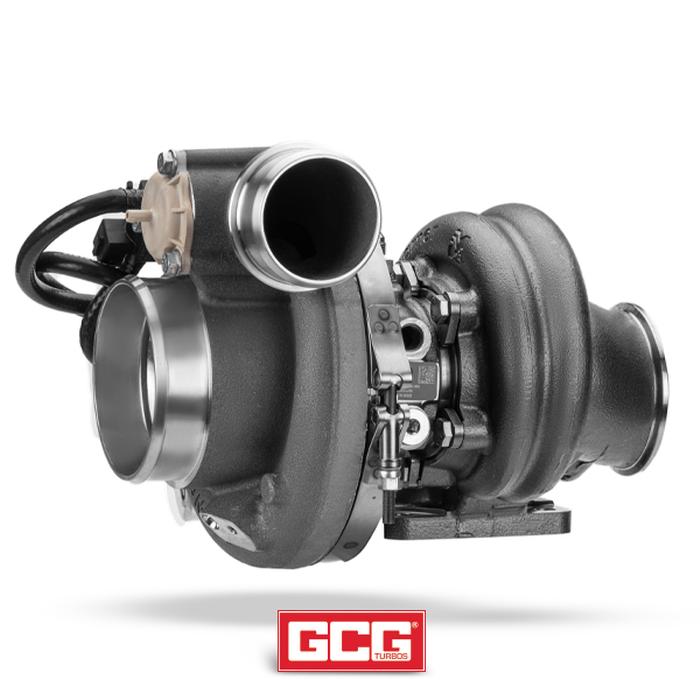

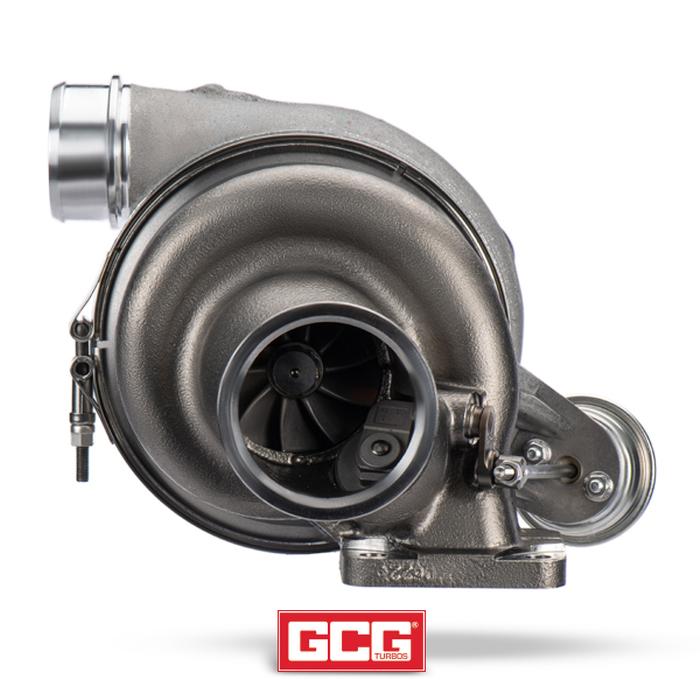

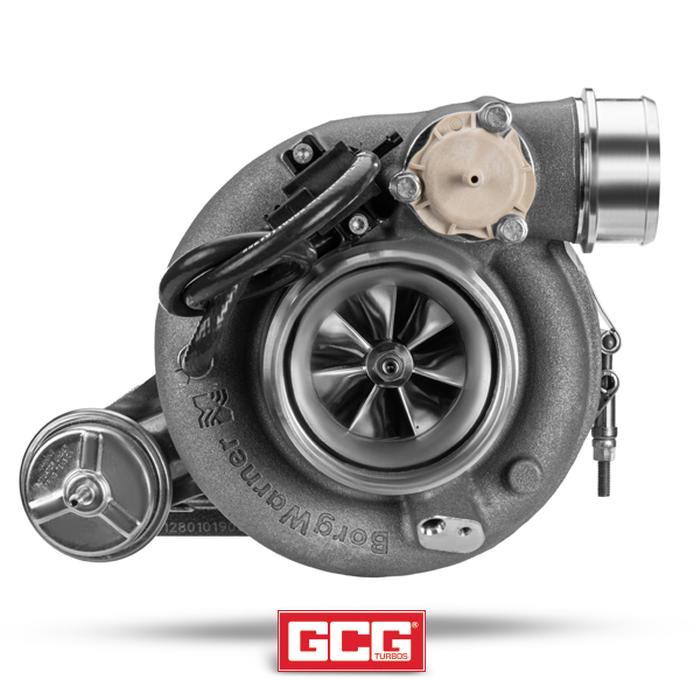

Borg Warner Turbo Charger EFR9180-C 0.92a/r IWG T04 D/E V-Band Outlet EFR12809880000

• Bearing Type: Ball Bearing
• Cooling System: Oil & Water Cooled
• Turbine Housing: Internally Wastegated, 0.92a/r
• Base Flange: T04 Dual Entry
• Exhaust Outlet Flange: 3.0" V-Band
• Horsepower: 600-1000hp

Product Notes: SPEED RATING; The maximum speed rating for the EFR9180 is 116,000RPM. The Turbine Outlet V-Band clamp and V-band flange are sold separately.

Features of the Borg Warner EFR range of Turbochargers:

• Gamma-Ti turbine wheel (Titanium)
• Integrated Compressor Recirculation Valve (CRV)
• Integrated Boost Control Solenoid Valve (BCSV)
• Dual ceramic ball bearing assembly with metal cage
• Forged milled compressor wheel
• Extended tip compressor wheel. (FMW)
• Compressor housing with speed sensor mounting provisions
• Stainless steel turbine housing
• Water cooled bearing housing
