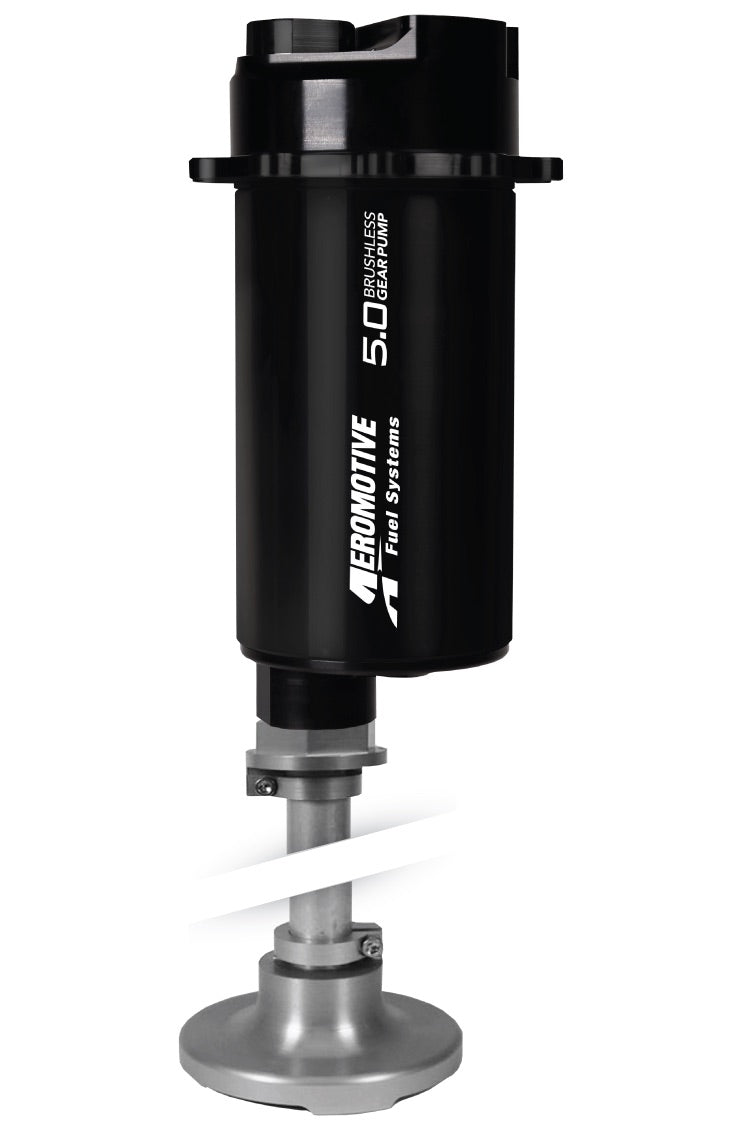

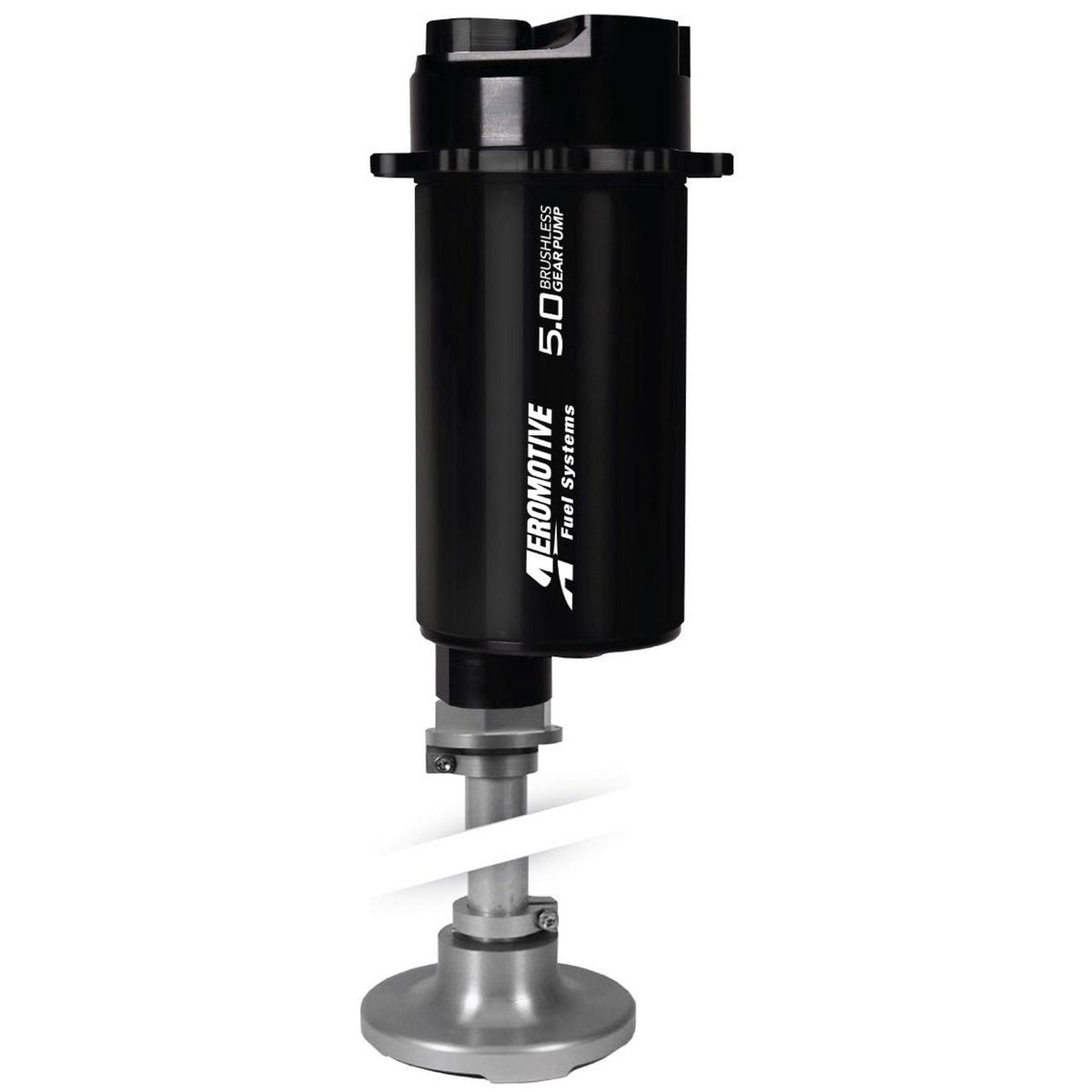

Aeromotive 5.0GPM Brushless In-Tank Fuel Pump with True Variable Speed Controller ARO18395

Brushless 5.0 Spur Gear In-Tank Fuel Pump with Variable Speed Controller

Ground Shaking Performance – Advanced Technology

This configuration features a universal filter pickup, for an overall height adjustment from 10-16in. Supports:
Fuel injected engines: GAS

• up to 3400 FWHP – naturally aspirated
• up to 2600 FWHP – forced air induction

Carbureted engines: GAS

• Up to 3600 FWHP – naturally aspirated
• Up to 2700 FWHP – forced air induction

Fuel injected engines: E85

• up to 2380 FWHP – naturally aspirated
• up to 1820 FWHP – forced air induction

Carbureted engines: E85

• Up to 2520 FWHP – naturally aspirated
• Up to 1890 FWHP – forced air induction

Fuel injected engines: METHANOL

• up to 1,190 FWHP – naturally aspirated
• up to 910 FWHP – forced air induction

Carbureted engines: METHANOL

• Up to 1,260 FWHP – naturally aspirated
• Up to 945 FWHP – forced air induction

• Lighter than the traditional Pro-Series pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• ORB-10 outlet port.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
• EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
• Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
