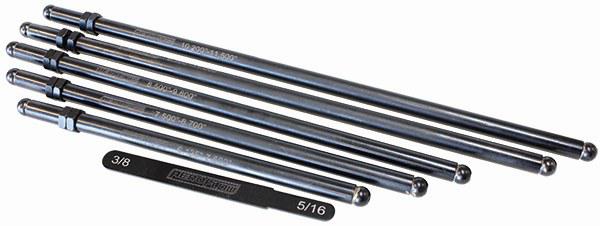

Aeroflow AF98-2050 Pushrod Length Checking 6.125" - 11.500" Sizes

Pushrod Length Checking Kit

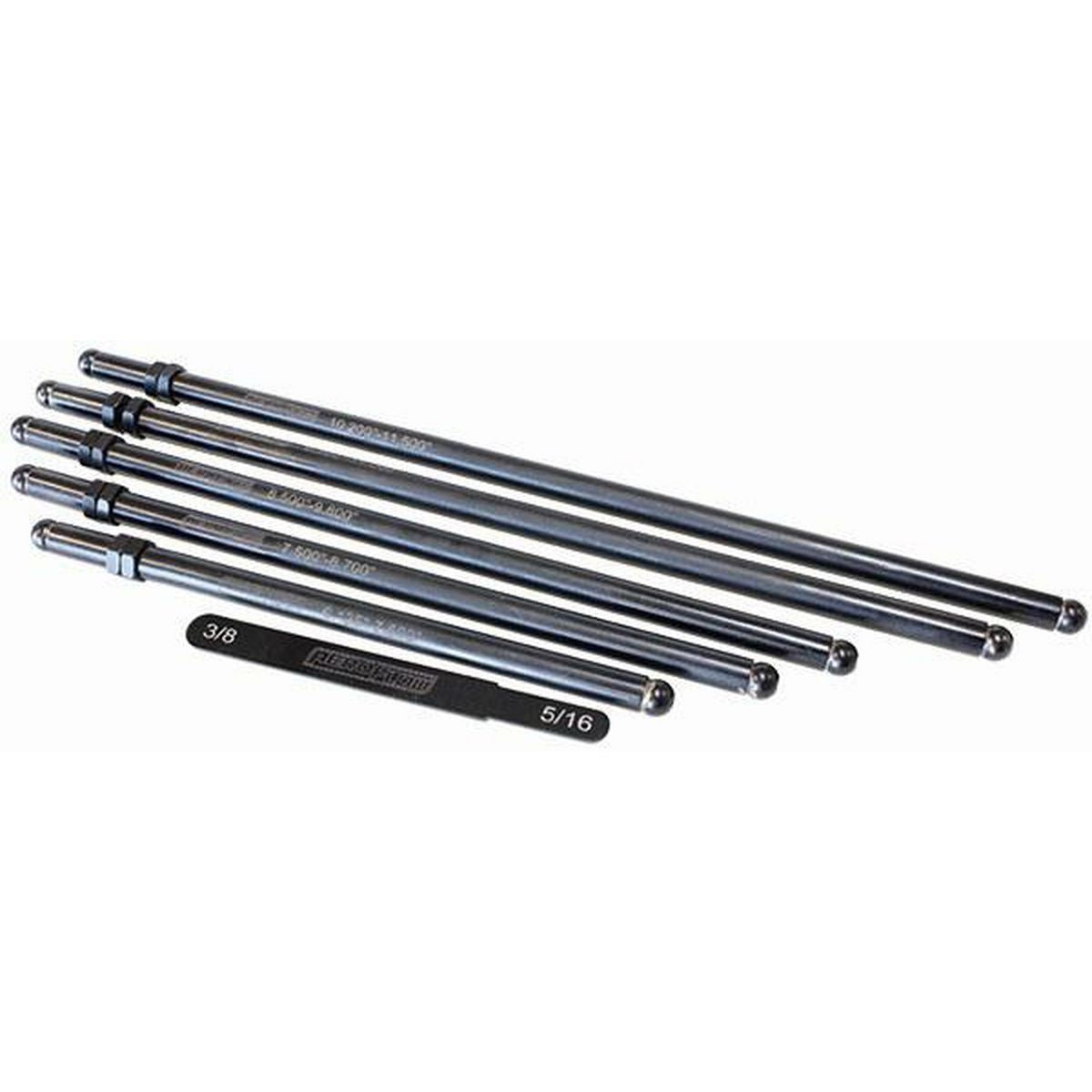

Kit Contains 5 Individual Length Checkers and a Diameter Checker

Aeroflow’s Push Rod Length Checking tool makes it easy and cost-effective to lay out and establish the proper pushrod length during AN engine rebuild. Correct pushrod length is critical in achieving proper valve train geometry. They are made from a 5/16” (8mm) pushrod that is cut and threaded with over 1” (25.4mm) travel. The kit contains 5 individual length checkers and diameter checker.

Lengths Included in this kit:
6.125" (155mm) - 7.500" (190mm)
7.500" (190mm) - 8.700" (220mm)
8.500" (215mm) - 9.800" (248mm)
9.700" (246mm) - 11.000" (279mm)
10.200" (259mm) - 11.500" (292mm)
