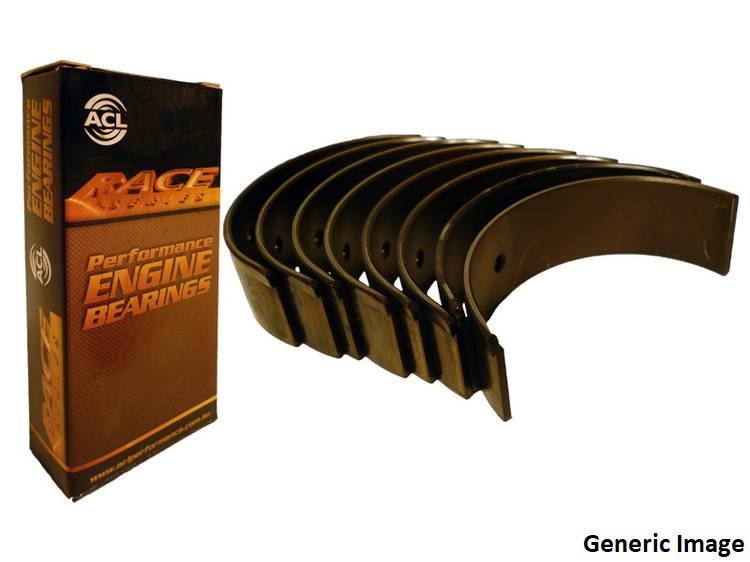

ACL Race Series Main Bearing Set Fits Holden 138/149/161/173/179/186 7M2384H-STD

Located in Australia, ACL has been providing an extensive replacement product range to a global aftermarket for over 70 years. Their reputation for robust metallurgy, quality, precision, innovation &, of course, performance shows through their products.

SPECIFICATIONS
-High Strength Overlay Plate With Reduced Thickness for Improved Fatigue Properties
-Hardened Steel Backs on All Rod Bearings to Improve Bearing Lining & Retention
-Increased Crush for Improved Bearing Retention
-Elimination of Flash Plating on Back of Bearings & Maximise Grip Between Bearings & Housing
-Increased Eccentricity to Compensate for Bore Distortion at High RPM & Assist in Formation of Hydrodynamic Oil Films
-3/4 Grooved Main Bearings to Optimise Bearing Load Carrying Surface Area & Oil Flow to Conrod Bearings
-Tight Consistent Wall Tolerances to Help Maintain Consistent Clearances
-Enlarged ID Chamfers on Bearing Edges Where Required to Accomodate Large Fillet Radius on Performance Crankshafts
-Half Type: Upper & Lower
-Material: F780
-Min. Std Shaft Size: 55,824 mm / 2.1978 in
-Max Std Shaft Size: 55,849 mm / 2.1988 in
-Min. Std Tunnel Size: 60,721 mm / 2.3906 in
-Max Std Tunnel Size: 60, 747 mm / 0.0954 in
-Max Wall at Crown: 2,423 mm / 0.0954 in
-Max Overall Length: 20,49 mm / 0.8067 in (2384H), 25,63 mm / 1.0091 in (2385H(F))
