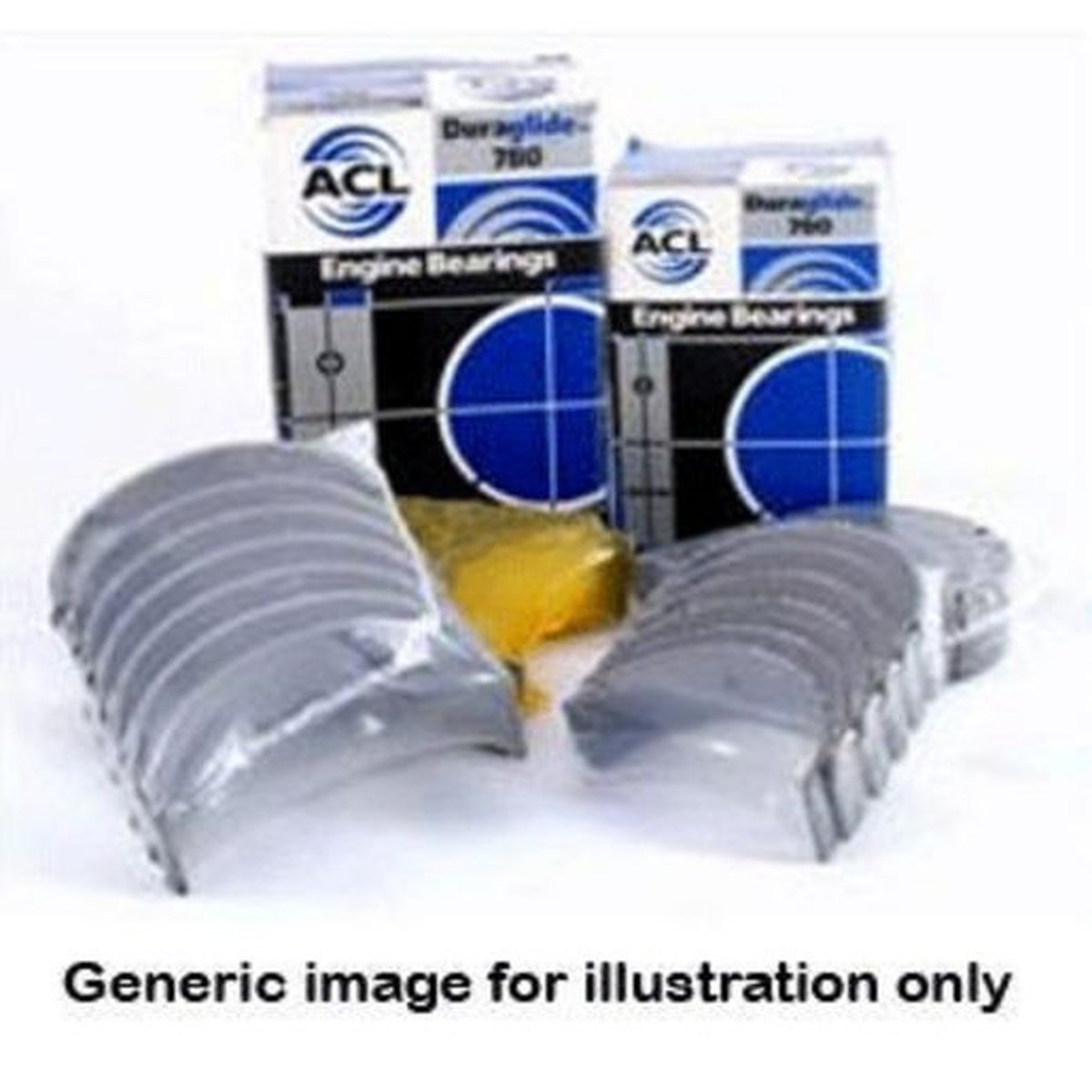

ACL Race Series Main Bearing Set Fits Chev 262/267/302/305/307/327/3 5M909HX-STD

Located in Australia, ACL has been providing an extensive replacement product range to a global aftermarket for over 70 years. Their reputation for robust metallurgy, quality, precision, innovation &, of course, performance shows through their products.

SPECIFICATIONS
-High Strength Overlay Plate With Reduced Thickness for Improved Fatigue Properties
-Hardened Steel Backs on All Rod Bearings to Improve Bearing Lining & Retention
-Increased Crush for Improved Bearing Retention
-Elimination of Flash Plating on Back of Bearings & Maximise Grip Between Bearings & Housing
-Increased Eccentricity to Compensate for Bore Distortion at High RPM & Assist in Formation of Hydrodynamic Oil Films
-3/4 Grooved Main Bearings to Optimise Bearing Load Carrying Surface Area & Oil Flow to Conrod Bearings
-Tight Consistent Wall Tolerances to Help Maintain Consistent Clearances
-Enlarged ID Chamfers on Bearing Edges Where Required to Accomodate Large Fillet Radius on Performance Crankshafts
-Half Type: Upper & Lower
-Material: F780
-Min. Std Shaft Size: 62,189 mm / 2.4484 in
-Max Std Shaft Size: 62,212 mm / 2.4493 in
-Min. Std Tunnel Size: 67,071 mm / 2.6406 in
-Max Std Tunnel Size: 67,097 mm / 2.6416 in
-Max Wall at Crown: 2,41 mm / 0.0949 in
-Max Overall Length: 20,5 mm / 0.8071 in (2377H), 43,64 mm / 1.7181 in (2378H(F))
