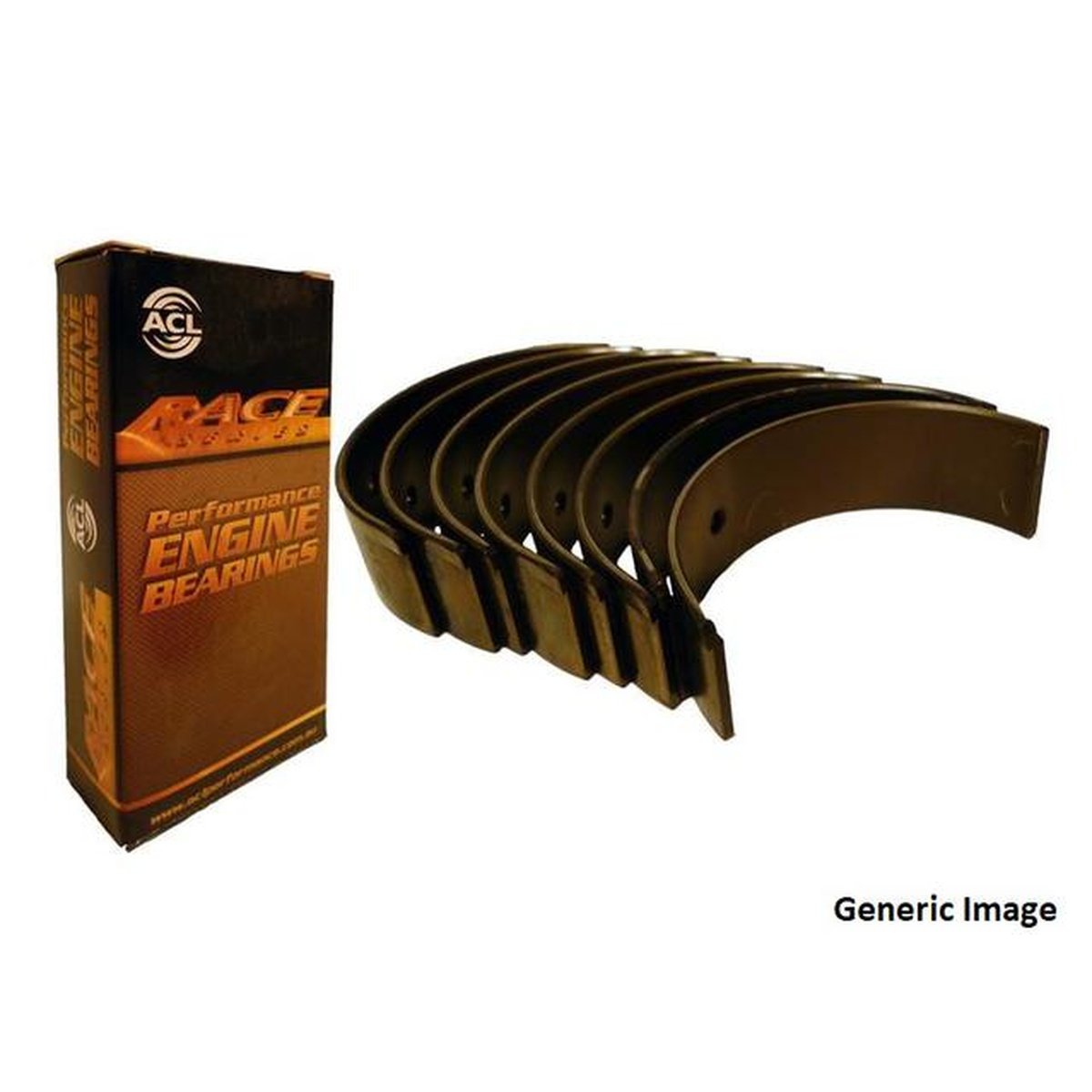

ACL Race Series Conrod Bearing Set Fits Toyota 1Hz 1Hdt 1Hd-Fte 6B8396H-STD

Located in Australia, ACL has been providing an extensive replacement product range to a global aftermarket for over 70 years. Their reputation for robust metallurgy, quality, precision, innovation &, of course, performance shows through their products.SPECIFICATIONS-High Strength Overlay Plate With Reduced Thickness for Improved Fatigue Properties-Hardened Steel Backs on All Rod Bearings to Improve Bearing Lining & Retention-Increased Crush for Improved Bearing Retention-Elimination of Flash Plating on Back of Bearings & Maximise Grip Between Bearings & Housing-Increased Eccentricity to Compensate for Bore Distortion at High RPM & Assist in Formation of Hydrodynamic Oil Films-3/4 Grooved Main Bearings to Optimise Bearing Load Carrying Surface Area & Oil Flow to Conrod Bearings-Tight Consistent Wall Tolerances to Help Maintain Consistent Clearances-Enlarged ID Chamfers on Bearing Edges Where Required to Accomodate Large Fillet Radius on Performance Crankshafts-Half Type: Identical Halves-Material: F781-Min. Std Shaft Size: 58,995 mm / 2.3226 in-Max Std Shaft Size: 59,005 mm / 2.3230 in-Min. Std Tunnel Size: 62,014 mm / 2.4415 in-Max Std Tunnel Size: 62,032 mm / 2.4422 in-Max Wall at Crown: 1,489 mm / 0.0586 in-Max Overall Length: 23,55 mm / 0.9272 in
