4Terrain Heavy Duty Clutch Kit 4T1584NHD

Designed and manufactured to replace the clutch system installed as Original Equipment, a 4Terrain Heavy Duty replacement clutch kit offers a significant torque capacity increase. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit. After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, CI is the trusted source for a complete range of Clutch Kits suited to your vehicle.

4x4 systems need a higher torque capacity while retaining good pedal feel and fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also needs an effective method to dissipate heat. 4Terrain covers assemblies provide increased clamping force when compared to a standard product, and feature the ER2 Groove Design that significantly increases torque capacity and lowers heat build-up.

Approximately 300% stronger than a standard casting, the spheroidal graphite castings also improve heat dissipation. Sometimes referred to as an Anti-Burst Casting, this material (sometimes referred to as an Anti Burst casting) increases strength up to 3 times. To ensure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.

4Terrain Heavy Duty Clutch Kits feature an increase in organic friction material. These plates offer a 25% increase in friction material thickness compared with other clutch systems.

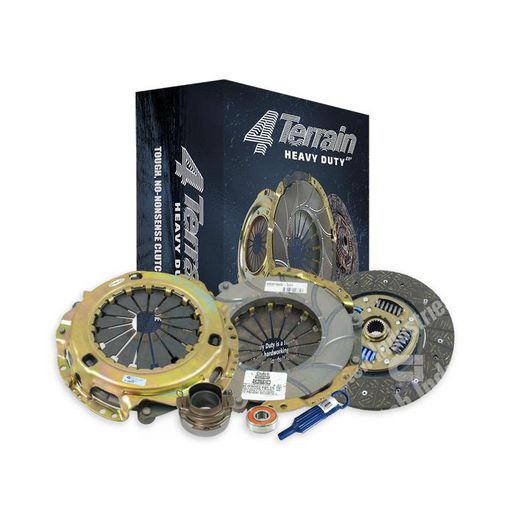

Inclusions:

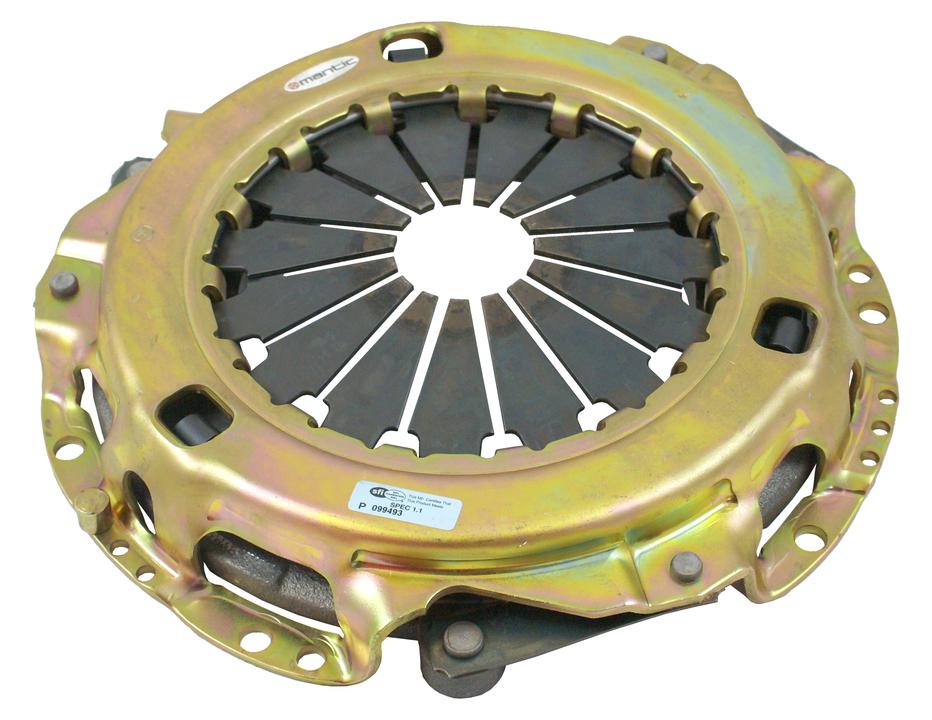

4TERRAIN ER2 Heavy Duty Cover Assembly
Heavy Duty Clutch Plate for improved operating life

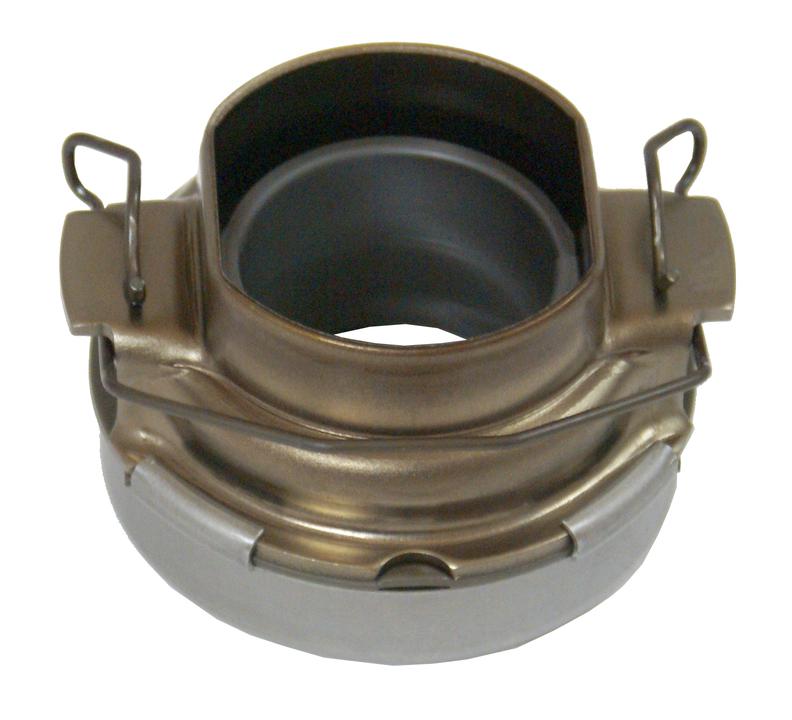

Release bearing

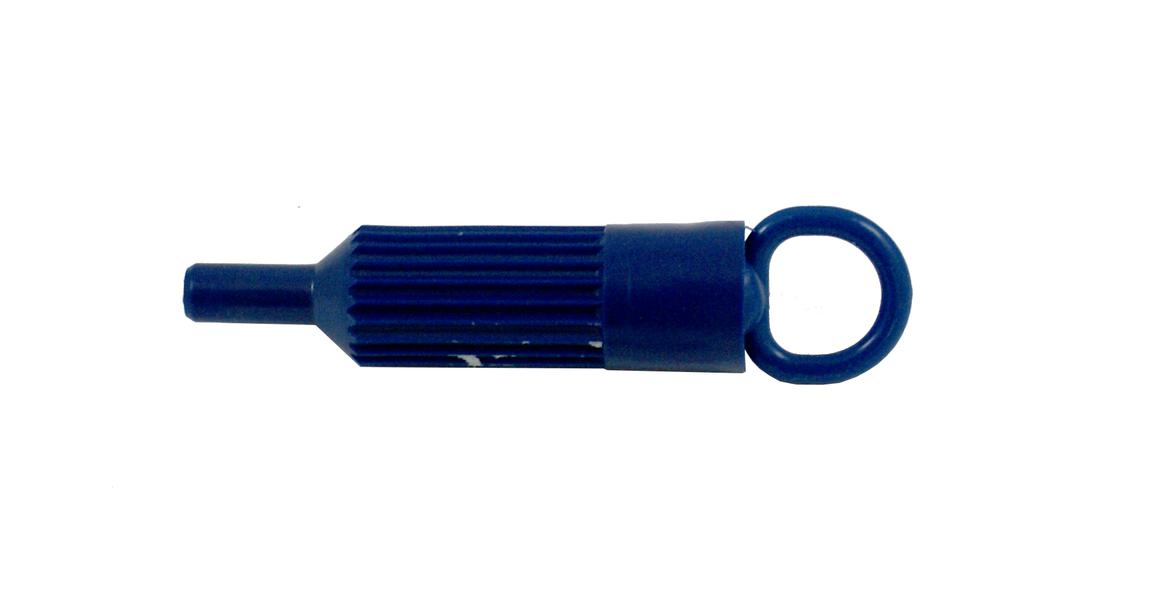

Clutch Alignment Tool

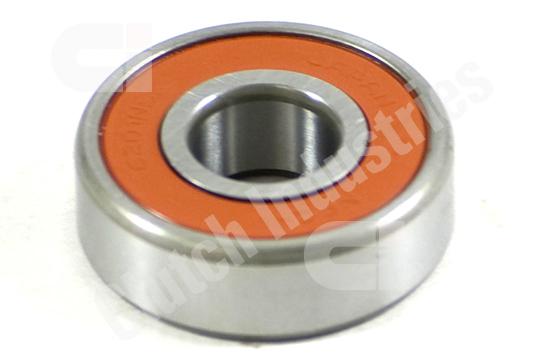

Spigot Bearing

SPECIFICATIONS

Clutch Plate Dimensions: 250 x 21T x 29.0
Torque Capacity Peak: 521Nm, Rated: 416Nm
