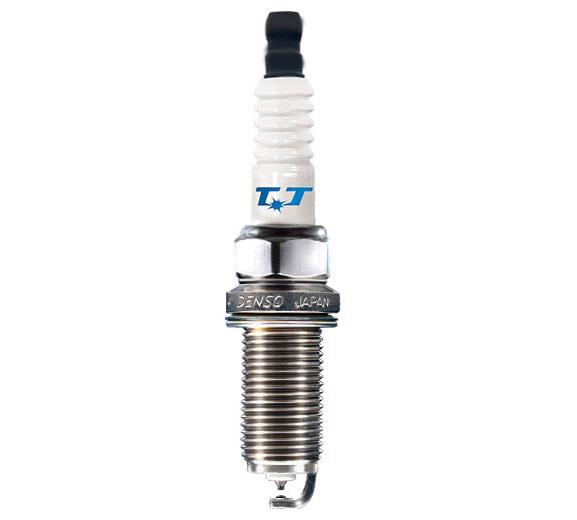

Denso Iridium TT Spark Plug IKH20TT

Denso Iridium TT Spark Plugs (like this IKH20TT) combine iridium and platinum with Denso's 360° laser-welding process to machine-engineer a spark plug capable of over 150,000 kilometres of driving. The premium design technology allows for spark minimisation and ignitability maximisation, meaning better power transference, greater torque and improved fuel economy for your vehicle.

SPECIFICATIONS
Torque Specs: Cast Iron: 26-30 lb. ft. Aluminum: 15-22 lb. ft.
Heat Range: 20
Longevity: 150,000km
Resistor: Yes

Shell
Thread Size: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Resistor Value: 5K Ohm
Reach: 26.5mm (1.04")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .039" (1.0mm)

Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.4mm
Projection: Projected

Ground Electrode
Material: Platinum
Type: Fine Wire
Shape: Pin
Quantity: 1
